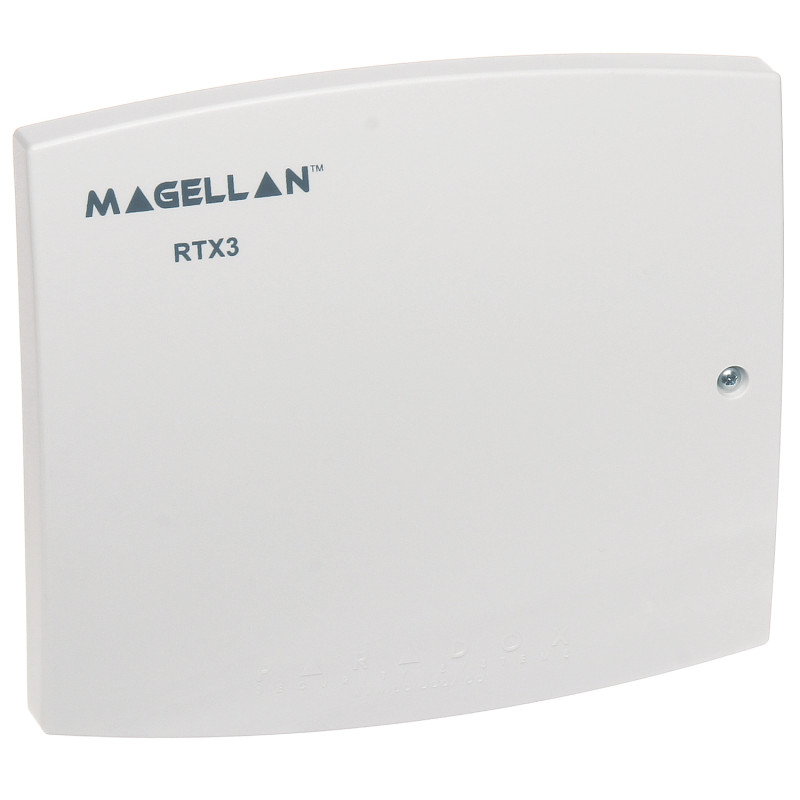

RTX3-Z3J Wireless Module for Paradox Spectra SP Digiplex EVO Alarm Control Panels

Model: PARADOX RTX3-Z3J

EAN: 6931240053393 SKU: 931053396

• Compatibility with Paradox Spectra SP, Digiplex, Digiplex EVO series control panels
• Support for up to 32 wireless remote controls
• Mounting options at the control panel or on the BUS
• Two programmable transistor outputs (150mA)
• One programmable relay output (28V DC / 5A)
• LED status indication
• Radio signal interference detection function
• Addressable device in the system

Description

The RTX3-Z3J wireless module is an advanced communication solution dedicated to professional Paradox alarm systems. The device is designed to work with Spectra SP, Digiplex, and Digiplex EVO series alarm control panels, allowing for system expansion with wireless components. Thanks to its design, the module can be installed directly next to the control panel or at any point on the BUS, providing great flexibility when designing a security installation. The RTX3-Z3J is a fully addressable device, meaning it occupies one address in the system, facilitating management and configuration. The main advantage of the module is support for up to 32 remote controls, allowing for convenient system control by multiple users. The device also offers advanced diagnostic functions, such as LED signaling and the ability to set interference detection, which significantly increases the level of security and reliability of the entire alarm system. Being equipped with transistor and relay outputs allows for integration with additional external devices, increasing the installation's functionality. The product is characterized by high-quality workmanship, confirmed by compliance with many technical standards, making it a reliable element in professional property protection systems.

Specification

Compatibility

SPECTRA, Digiplex & Digiplex EVO

Frequency range

433 MHz

Receiver sensitivity

-120 dBm

Selected features

LED signaling, Adjustable interference detection, Two transistor outputs (150 mA, programmable), Relay output (28 V DC / 5 A, programmable), Support for up to 32 remote controls

Power supply

12 V DC

Current consumption

50 mA

Compliance with standards

EN 61000-6-3, EN 60950-1, ETSI EN 300 220-2, ETSI EN 301 489-1, ETSI EN 301 489-3, EN 50581

Security Grade

2

Operating temperature

0 °C ... 50 °C

Country of origin

Canada

Manufacturer / Brand

PARADOX

Warranty

2 years

Software and configuration

The RTX3-Z3J module is fully integrated with Paradox systems. Configuration is performed via the alarm control panel's communication BUS. The user has the ability to assign up to 32 wireless remote controls, allowing for flexible management of system access. The module allows for the programming of outputs (transistor and relay), which enables the control of external devices such as lighting, entrance gates, or additional sirens. The system automatically detects the module as an addressable device, which allows for real-time monitoring of its status. Advanced diagnostic functions, including 433 MHz band interference detection, allow for a quick response in case of signal jamming attempts, which is crucial for the security of high-risk facilities. All operating parameters are managed from the alarm control panel's service menu, ensuring configuration consistency for the entire system.

Contents

1x RTX3-Z3J Wireless Module

Mounting elements

Dimensions, Weight

Product dimensions: 29 x 172 x 154 mm (D x W x H)

Package dimensions: 35 x 222 x 155 mm (D x W x H)

Product weight: 232 g

Weight with packaging: 306 g
