- New

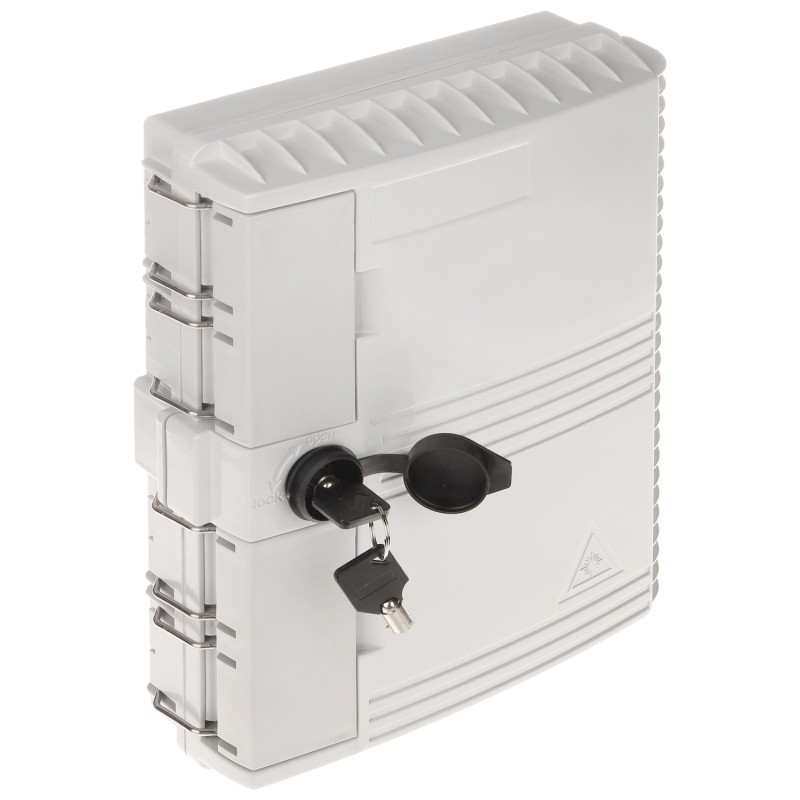

Wall mount fiber optic distribution box IP65 outdoor fiber optic splice closure FTTH organizer OPTON PPO-16/4
zł142.99
Tax included
The PPO-16/4 fiber optic distribution box is a high-quality solution designed for the professional termination of fiber optic lines inside and outside buildings. Thanks to its robust construction made of durable plastic and high IP65 protection rating, this product guarantees full protection of splices and optical connections against dust, moisture, and harsh weather conditions. It is an ideal choice for installers of FTTH networks, video surveillance systems, and modern telecommunications installations.
The main advantage of the PPO-16/4 model is its mounting versatility. The housing is designed for direct wall mounting, which significantly facilitates cable organization at network connection points. Additionally, the distribution box has a dedicated space for mounting a cable slack storage rack, which allows for the aesthetic and safe arrangement of excess fibers. Inside the device, there is space for one splice cassette, which can hold up to 6 thermal or mechanical splices, ensuring order and easy service access.
Installation security is enhanced by an integrated key lock, which protects the interior from unauthorized access. This is particularly important in public areas such as stairwells or basements. The distribution box also features the ability to install a cassette splitter, which expands its functionality in passive optical networks (PON). The neutral gray color allows the housing to blend discreetly into the surroundings without compromising the aesthetics of the facade or interior.
By choosing the OPTON PPO-16/4 distribution box, you are investing in durability and reliability. This product eliminates the risk of mechanical damage to delicate fiber optic cables, which translates into transmission stability across the entire network. A simple line cable entry system (supporting up to 2 cables) and an intuitive interior layout ensure that the time required for installation is minimized, generating real savings for contracting companies.
Wall mount fiber optic distribution box IP65 outdoor fiber optic splice closure FTTH organizer
Model: OPTON PPO-16/4
EAN: 6931240074923 SKU: 931074923
- High IP65 protection rating allowing for outdoor installation
- Capacity to secure up to 6 thermal or mechanical splices
- Robust housing made of UV-resistant plastic
- Integrated key lock for protection against unauthorized access
- Dedicated space for cassette splitter installation
- Mounting capability for fiber optic cable slack storage rack
- Supports up to two line cables simultaneously
- Aesthetic gray color matching most facades
Description
The PPO-16/4 fiber optic distribution box is a high-quality solution designed for the professional termination of fiber optic lines inside and outside buildings. Thanks to its robust construction made of durable plastic and high IP65 protection rating, this product guarantees full protection of splices and optical connections against dust, moisture, and harsh weather conditions. It is an ideal choice for installers of FTTH networks, video surveillance systems, and modern telecommunications installations.
The main advantage of the PPO-16/4 model is its mounting versatility. The housing is designed for direct wall mounting, which significantly facilitates cable organization at network connection points. Additionally, the distribution box has a dedicated space for mounting a cable slack storage rack, which allows for the aesthetic and safe arrangement of excess fibers. Inside the device, there is space for one splice cassette, which can hold up to 6 thermal or mechanical splices, ensuring order and easy service access.
Installation security is enhanced by an integrated key lock, which protects the interior from unauthorized access. This is particularly important in public areas such as stairwells or basements. The distribution box also features the ability to install a cassette splitter, which expands its functionality in passive optical networks (PON). The neutral gray color allows the housing to blend discreetly into the surroundings without compromising the aesthetics of the facade or interior.
By choosing the OPTON PPO-16/4 distribution box, you are investing in durability and reliability. This product eliminates the risk of mechanical damage to delicate fiber optic cables, which translates into transmission stability across the entire network. A simple line cable entry system (supporting up to 2 cables) and an intuitive interior layout ensure that the time required for installation is minimized, generating real savings for contracting companies.
Specification
Device type
Professional wall-mounted fiber optic distribution box designed for the organization and protection of fiber optic connections at telecommunication network endpoints.
Application
Ideal for direct wall mounting in technical rooms, stairwells, and outdoors as a line cable termination point.
Number of cable entries
The device allows for the entry of up to 2 line cables of various diameters, ensuring their stable immobilization and sealing.
Splice capacity
The interior allows for the safe arrangement and protection of up to 6 thermal or mechanical splices, shielding them from breakage and external factors.
Splice cassettes
Equipped with 1 highly ergonomic splice cassette that facilitates fiber management and ensures proper fiber bend radii are maintained.
Splitter compatibility
The design allows for the installation of a cassette splitter, which is crucial in building Passive Optical Network (PON) systems.
Protection class
The IP65 protection rating guarantees total dust-tightness and resistance to strong water jets from any direction, enabling facade mounting.
Housing material
Made of high-quality plastic (ABS/PC), characterized by high resistance to mechanical impact and ultraviolet radiation.
Mechanical security
Equipped with a solid key-operated cylinder lock, preventing unauthorized access to critical infrastructure and protecting against sabotage.
Mounting
Adapted for wall mounting (hanging) and includes mounting points for a fiber optic cable slack storage rack for better organization of excess fibers.
Color scheme
Aesthetic gray color (RAL 7035), which is dirt-resistant and blends well with most facades and interior walls in buildings.
Operating conditions
A wide operating temperature range and full moisture resistance allow for trouble-free use in variable climatic conditions for many years.
Design advantages
The special design eliminates the need for adapters inside the housing, which simplifies network construction and lowers installation costs for the contractor.
Manufacturer warranty
The product is covered by a full 2-year warranty (24 months), confirming its high build quality and reliability in professional systems.
Contents
1x PPO-16/4 fiber optic distribution box
1x Set of keys for the lock
1x Set of mounting accessories (plugs, screws)
1x Accessories for fiber organization and splice sleeves
Dimensions, Weight
Product dimensions: 103 x 235 x 302 mm (D x W x H)
Package dimensions: 100 x 270 x 315 mm (D x W x H)
Product weight: 1220 g
Weight with package: 1374 g
