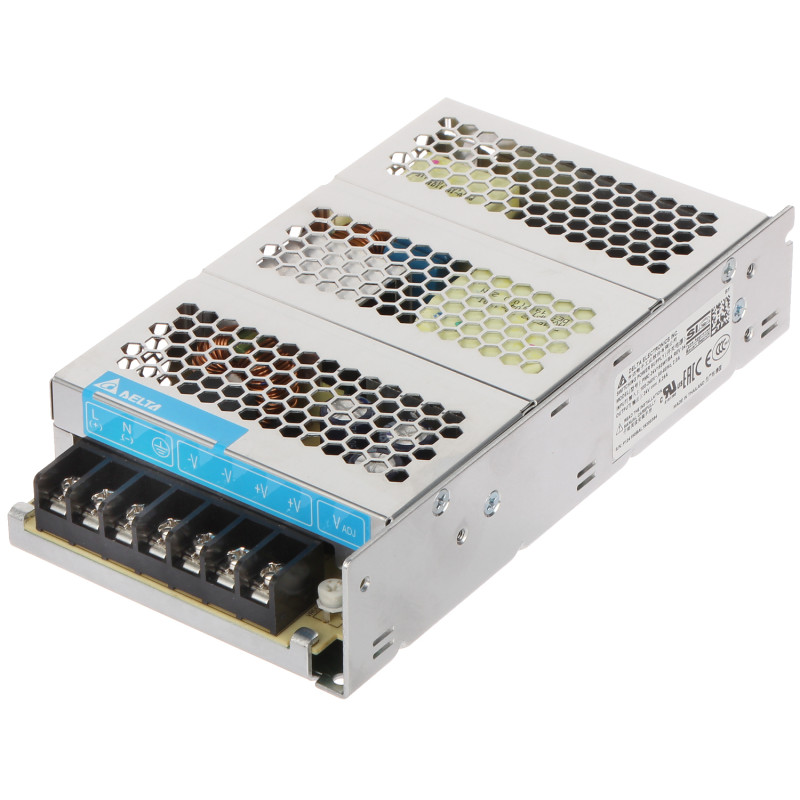

24V 6.25A 150W Switching Power Supply modular DIN rail mount for control cabinets industrial automation CCTV LED Delta Electroni
zł206.64
Tax included
The PMC-24V150W1BA switching power supply is a professional solution from the renowned manufacturer Delta Electronics, designed for maximum reliability in power supply systems. The device provides a stable 24V DC voltage with a current capacity of 6.25A, resulting in 150W of total power. It is an ideal choice for industrial automation systems, professional CCTV monitoring, and advanced LED lighting installations.
A key advantage of this model is its modular design enclosed in a robust metal housing, which ensures excellent heat dissipation via convection. The power supply is equipped with two pairs of output terminals, which significantly simplifies cable management and allows for the direct connection of multiple receivers without additional distribution blocks. A precise ADJ potentiometer allows for output voltage adjustment in the range of 22.8V to 27.6V, enabling compensation for voltage drops on long power lines.
The product features a wide input voltage range (100-240V AC), making it a universal tool for operation in various power grid standards. Delta Electronics, as a global industry leader, offers a 5-year warranty on this model, confirming the use of top-class components. When designing installations for continuous operation (24/7), it is recommended that the operating current does not exceed 80% of the maximum value, which guarantees stability and longevity of the device even in demanding industrial conditions.
24V 6.25A 150W Switching Power Supply modular DIN rail mount for control cabinets industrial automation CCTV LED
Model: Delta Electronics PMC-24V150W1BA
EAN: 6931240095607 SKU: 931095603
- High output power 150W at 24V DC
- Wide input voltage range 100V - 240V AC
- Two pairs of output terminals for easy installation
- Output voltage adjustable via ADJ potentiometer (22.8V - 27.6V)
- Robust metal housing with perforation for improved cooling
- Long 5-year warranty period
- Short-circuit, overvoltage, and overload protection
- High energy efficiency typical of Delta Electronics products
Description
The PMC-24V150W1BA switching power supply is a professional solution from the renowned manufacturer Delta Electronics, designed for maximum reliability in power supply systems. The device provides a stable 24V DC voltage with a current capacity of 6.25A, resulting in 150W of total power. It is an ideal choice for industrial automation systems, professional CCTV monitoring, and advanced LED lighting installations.
A key advantage of this model is its modular design enclosed in a robust metal housing, which ensures excellent heat dissipation via convection. The power supply is equipped with two pairs of output terminals, which significantly simplifies cable management and allows for the direct connection of multiple receivers without additional distribution blocks. A precise ADJ potentiometer allows for output voltage adjustment in the range of 22.8V to 27.6V, enabling compensation for voltage drops on long power lines.
The product features a wide input voltage range (100-240V AC), making it a universal tool for operation in various power grid standards. Delta Electronics, as a global industry leader, offers a 5-year warranty on this model, confirming the use of top-class components. When designing installations for continuous operation (24/7), it is recommended that the operating current does not exceed 80% of the maximum value, which guarantees stability and longevity of the device even in demanding industrial conditions.
Specification
Power supply type
Switching (high energy conversion efficiency)
Input voltage
100 V ... 240 V AC (alternating current, wide input range)
Input frequency
47 ... 63 Hz
Output voltage
24 V DC (stabilized direct current)
Voltage adjustment range
22.8 V ... 27.6 V (adjustable via built-in ADJ potentiometer)
Current capacity
6.25 A (maximum output current)
Rated power
150 W (total power delivered to the load)
Number of output terminals
2 pairs (4 mounting points: 2x +V, 2x -V for easier installation)
Input terminals
L (phase), N (neutral), GND (protective earth)
Operating temperature
-10 °C ... 70 °C (adapted for operation in harsh environmental conditions)
Relative humidity
5 % ... 95 % (non-condensing)
Housing dimensions
180 x 97 x 38 mm (compact modular design)
Net weight
550 g (solid metal construction)
Warranty
5 years (60-month manufacturer warranty from Delta Electronics)
Technical protections
Overload, Overvoltage, Short Circuit
Cooling
Passive (natural convection through perforated metal housing)
Application
Industrial automation, CCTV monitoring systems, alarm systems, LED lighting, control cabinets
Operating principles
For 24h continuous operation, recommended load is up to 80% of rated current (approx. 5A)
Predecessor model
PMC-24V150W1AA (full parameter compatibility)
Contents
1x Switching power supply
1x User manual
Dimensions, Weight
Product dimensions: 38 x 180 x 97 mm (D x W x H)
Package dimensions: 45 x 185 x 115 mm (D x W x H)
Product weight: 550 g
Weight with packaging: 600 g
