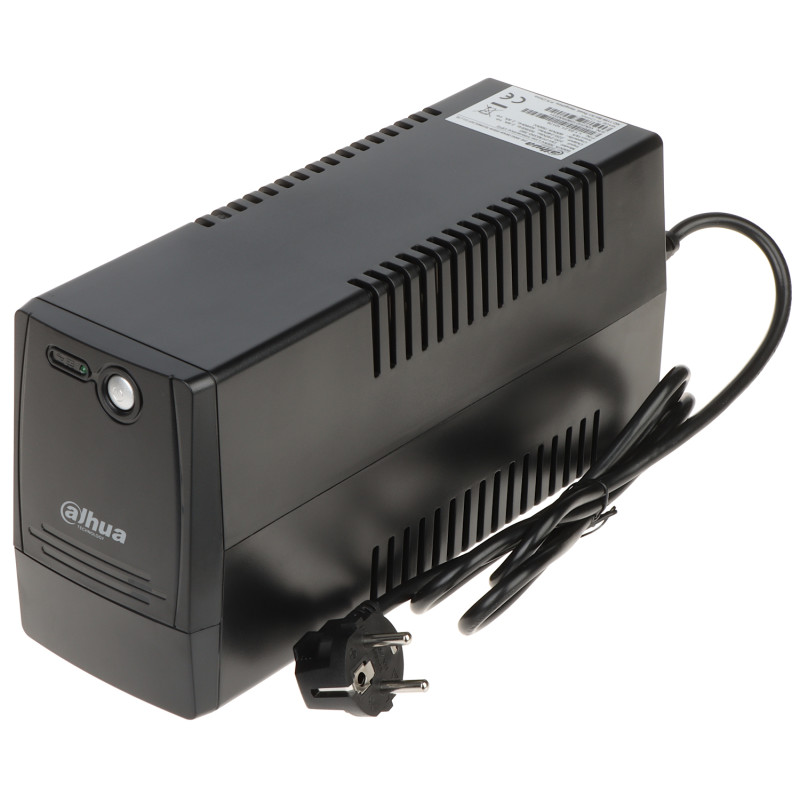

UPS Uninterruptible Power Supply 600VA 360W AVR Tower 2x Schuko Cold Start Surge Protection Monitoring DAHUA PFM350-360
zł232.47
Tax included
The Dahua PFM350-360 UPS is a professional and reliable device designed to ensure power continuity for critical electronic systems. With an apparent power of 600 VA and an active power of 360 W, it is an ideal solution for CCTV video surveillance systems, small servers, workstations, and network equipment. The use of simulated sine wave technology allows for safe operation with a wide range of switching power supplies used in modern IT equipment.
One of the most important advantages of this model is the built-in Automatic Voltage Regulator (AVR). This function allows for the stabilization of input voltage in a very wide range from 140V to 290V AC without the need to switch to battery operation. As a result, the device protects connected receivers from the effects of voltage fluctuations in the grid, while saving energy stored in the battery and extending its service life. Another significant advantage is the Cold Start function, which allows the UPS and connected devices to be started directly from the battery, even in the event of a complete power outage in the wall outlet.
The Dahua PFM350-360 power supply is enclosed in a compact Tower housing that takes up minimal space. On the rear panel, there are two standard Schuko sockets (CEE 7/3), which eliminates the need for specialized computer cables. Operational safety is guaranteed by a series of protections, including overload protection, overcharge protection, and protection against excessive discharge of the 12V/7Ah battery. Clear optical signaling via LED diodes and audible alarms allow for instant assessment of the device's operating status, informing about battery mode, low energy level, or a potential system error. This is a solid and economical solution for anyone who values data security and the continuity of surveillance system operation.
UPS Uninterruptible Power Supply 600VA 360W AVR Tower 2x Schuko Cold Start Surge Protection Monitoring
Model: DAHUA PFM350-360
EAN: 6931240045589 SKU: 931045581
- Active power 360W / Apparent power 600VA
- Built-in Automatic Voltage Regulator (AVR) (Boost and Buck)
- Cold Start function - startup without AC mains
- Two Schuko output sockets (CEE 7/3)
- Wide input voltage range: 140V - 290V AC
- Compact Tower housing ideal for offices and telecommunications cabinets
- Full protection: overload, overcharge, and discharge protection
- LED optical and audible signaling
- Fast switching time: typically 2-6 ms
- Includes efficient 12V/7Ah battery
Description
The Dahua PFM350-360 UPS is a professional and reliable device designed to ensure power continuity for critical electronic systems. With an apparent power of 600 VA and an active power of 360 W, it is an ideal solution for CCTV video surveillance systems, small servers, workstations, and network equipment. The use of simulated sine wave technology allows for safe operation with a wide range of switching power supplies used in modern IT equipment.
One of the most important advantages of this model is the built-in Automatic Voltage Regulator (AVR). This function allows for the stabilization of input voltage in a very wide range from 140V to 290V AC without the need to switch to battery operation. As a result, the device protects connected receivers from the effects of voltage fluctuations in the grid, while saving energy stored in the battery and extending its service life. Another significant advantage is the Cold Start function, which allows the UPS and connected devices to be started directly from the battery, even in the event of a complete power outage in the wall outlet.
The Dahua PFM350-360 power supply is enclosed in a compact Tower housing that takes up minimal space. On the rear panel, there are two standard Schuko sockets (CEE 7/3), which eliminates the need for specialized computer cables. Operational safety is guaranteed by a series of protections, including overload protection, overcharge protection, and protection against excessive discharge of the 12V/7Ah battery. Clear optical signaling via LED diodes and audible alarms allow for instant assessment of the device's operating status, informing about battery mode, low energy level, or a potential system error. This is a solid and economical solution for anyone who values data security and the continuity of surveillance system operation.
Specification
Power parameters
Active power: 360 W; Apparent power: 600 VA
Output characteristics
Voltage: 220 V ... 240 V AC ± 10%; Frequency: 50 / 60 Hz ± 1 Hz; Voltage waveform: Simulated sine wave
Input characteristics
Voltage: 140 V ... 290 V AC; Frequency: 50 / 60 Hz (auto-detection)
Switching time
Typically: 2 ms ... 6 ms; Maximum: 10 ms
Battery and charging
Type: 1 pc. - 12V/7Ah (lead-acid, sealed); Charging time: 4 ... 6 hours to 90% level (typically)
Connectors and outputs
2 pieces of CEE 7/3 (Schuko) sockets
Protections
Fuse; Overload protection; Overcharge protection; Over-discharge protection
Status signaling
LEDs (Power, Battery, Error); Audible alarm (Battery mode, Low battery, Overload, Error)
AVR functions
Automatic Voltage Regulator (AVR) (Boost and Buck) stabilizing voltage without using the battery
Cold Start function
Possibility to start the power supply in the absence of mains voltage directly from the battery
Housing type
Tower (freestanding), black color
Environmental conditions
Operating temperature: 0 °C ... 40 °C; Relative humidity: 0 ... 90 % (non-condensing)
Software and management
The Dahua PFM350-360 UPS has a built-in intelligent energy management system that operates in autonomous mode. The device's firmware constantly monitors the input parameters of the electrical grid, deciding on the activation of the AVR module to boost or lower the voltage without consuming energy from the battery. The system also manages the charging process, protecting the cell from overcharging and overheating, which significantly extends its service life. In the event of a power failure, control algorithms ensure an instantaneous switch to battery mode in less than 6ms, which is imperceptible to most switching power supplies in computers and recorders. Additionally, the software performs a self-diagnostic function at each startup, checking the efficiency of internal components.
Application and purpose
CCTV video surveillance systems; Data storage centers; Computer networks and servers; PC workstations; Industrial equipment
Warranty and manufacturer
Manufacturer: DAHUA; Warranty period: 3 years
Contents
1x UPS PFM350-360
1x User manual
Dimensions, Weight
Product dimensions: 279 x 101 x 142 mm (D x W x H)
Package dimensions: 325 x 140 x 225 mm (D x W x H)
Product weight: 4130 g
Weight with packaging: 4344 g
