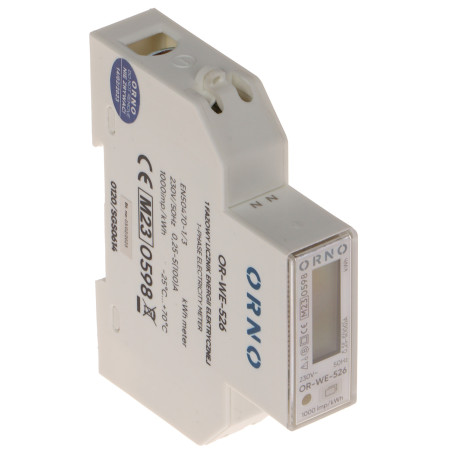

Single Phase DIN Rail LCD RS-485 Modbus kWh 100A Digital Electricity Meter ORNO OR-WE-526
zł244.78
Tax included
The professional, single-phase ORNO OR-WE-526 electricity meter is an advanced measuring device designed for precise monitoring of power consumption in residential and industrial installations. Thanks to its compact design with a width of only one module (18 mm), the device fits perfectly on a standard DIN rail TS-35, allowing for significant space savings in the distribution board.
A key advantage of this model is the built-in RS-485 communication port, which enables remote data reading and integration with Smart Home systems or Building Management Systems (BMS). The meter is characterized by exceptional measurement precision (accuracy class 0.001 kWh) and a wide current range, supporting a base current of 5A and a maximum current of up to 100A.
The device is equipped with a clear, blue-backlit LCD display (5+2 digits), which ensures excellent visibility of parameters even in total darkness. Additional LED signaling informs about device operation and pulse generation. A solid housing made of high-quality plastic with an IP51 protection rating guarantees durability and resistance to external factors. The product is fully compliant with European standards EN50470-1:2006 and EN50470-3:2006, which confirms its highest quality and safety of use. By choosing an ORNO meter, you gain full control over energy expenses and the ability to optimize its consumption, which translates into real financial savings and care for the environment.
Single Phase DIN Rail LCD RS-485 Modbus kWh 100A Digital Electricity Meter
Model: ORNO OR-WE-526
EAN: 6931240076323 SKU: 931076323
- Precise electricity measurement in a single-phase system
- Built-in RS-485 communication port for remote data reading
- Mounting on standard DIN rail TS-35 (1 module width)
- Clear LCD display with blue backlight
- Wide current range: base current 5A, maximum current 100A
- High measurement accuracy up to 0.001 kWh
- Compliance with MID directive and EN50470 standards
- Built-in real-time clock (RTC)
- Pulse signaling via LED
- Includes terminal seals to prevent tampering
Description
The professional, single-phase ORNO OR-WE-526 electricity meter is an advanced measuring device designed for precise monitoring of power consumption in residential and industrial installations. Thanks to its compact design with a width of only one module (18 mm), the device fits perfectly on a standard DIN rail TS-35, allowing for significant space savings in the distribution board.
A key advantage of this model is the built-in RS-485 communication port, which enables remote data reading and integration with Smart Home systems or Building Management Systems (BMS). The meter is characterized by exceptional measurement precision (accuracy class 0.001 kWh) and a wide current range, supporting a base current of 5A and a maximum current of up to 100A.
The device is equipped with a clear, blue-backlit LCD display (5+2 digits), which ensures excellent visibility of parameters even in total darkness. Additional LED signaling informs about device operation and pulse generation. A solid housing made of high-quality plastic with an IP51 protection rating guarantees durability and resistance to external factors. The product is fully compliant with European standards EN50470-1:2006 and EN50470-3:2006, which confirms its highest quality and safety of use. By choosing an ORNO meter, you gain full control over energy expenses and the ability to optimize its consumption, which translates into real financial savings and care for the environment.
Specification
Device type
Electricity meter, Single-phase - designed for monitoring energy consumption in AC networks.
Power Supply and Voltage
Rated voltage: 230 V AC, Frequency: 50 Hz. The device operates stably within standard power grid parameters.
Current Parameters
Base current: 5 A, Maximum current (Imax): 100 A. Allows for handling high-load circuits.
Measurement and Accuracy
Measurement unit: kWh. Measurement accuracy: 0.001 kWh. Pulse frequency: 1000 imp/kWh. Compliance with standards EN50470-1:2006, EN50470-3:2006, Directive 2014/32/EU.
Display
LCD 5+2 digits (format 00000.00 kWh). Blue backlight facilitates reading in difficult lighting conditions.
Communication and Ports
RS-485 port: Yes. Enables integration with external systems and building automation.
Software and Interface
The device supports a communication protocol via the RS-485 interface, which allows for cooperation with BMS (Building Management System) software and utility consumption analysis applications. Thanks to the support for standard commands, the user can remotely retrieve data on current energy consumption, archive it, and create advanced energy reports. The system allows for monitoring multiple meters in one network, which is crucial for optimizing operating costs in commercial and residential buildings.
Connectors
Connector type: screw terminals with a maximum cross-section of 25 mm², which ensures a secure and durable electrical connection.
Additional Functions
LED pulse generation signaling, Built-in real-time clock (RTC), Screen backlight function.
Construction and Housing
Material: High-quality plastic. Mounting: DIN rail TS-35. Width: 1 module (18 mm).
Ingress Protection
IP51 - protection against dust and dripping water, which allows for safe installation inside distribution boards.
Operating Conditions
Operating temperature: -25 °C ... 70 °C. Permissible relative ambient humidity: ≤ 95 %.
Security
The set includes two terminal seals used to physically secure the meter terminals against unauthorized access.
Warranty
5 years - a long warranty period confirming the reliability and high quality of the manufacturer ORNO.
Contents
1x OR-WE-526 electricity meter
2x Terminal seals
1x User manual
Dimensions, Weight
Product dimensions: 72 x 18 x 94 mm (Depth x Width x Height)
Packaging dimensions: 30 x 80 x 110 mm (Depth x Width x Height)
Product weight: 100 g
Weight with packaging: 117 g
