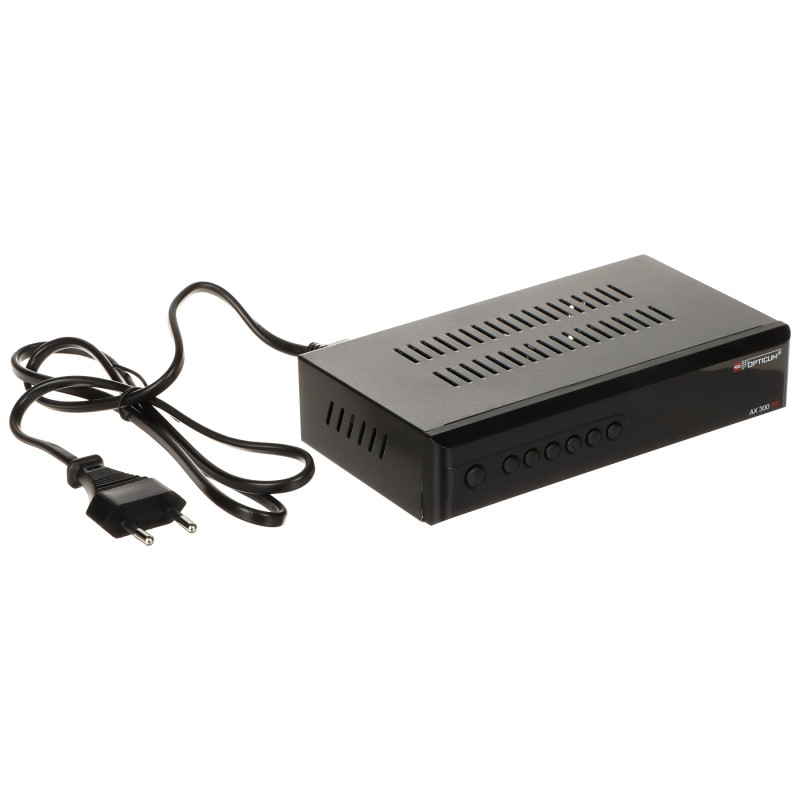

DVB-S2 Full HD Satellite Tuner HDMI SCART USB Media Player EPG PVR Digital Satellite Receiver

Model: Opticum OPTI-AX300-PLUS

EAN: 6931240010983 SKU: 931010984

• Reception of satellite channels in SD and HD quality (Full HD 1080p)
• Built-in media player (movies, music, photos)
• USB 2.0 port dedicated to external drives and flash memory
• Support for DiSEqC 1.0, 1.2, 1.3, USALS and UNICABLE systems
• Electronic Program Guide (EPG) for 7 days
• Support for teletext and subtitles in multiple languages
• LED display showing channel number and operating mode
• Digital audio output S/PDIF Coaxial for 5.1 sound
• Low power consumption in standby mode (below 1W)

Description

The OPTI-AX300-PLUS tuner is a modern and versatile device that redefines the concept of home satellite entertainment. It combines the functions of an advanced DVB-S/S2 digital television receiver and an efficient media player, allowing you to enjoy crystal-clear images in Full HD 1080p resolution. Thanks to the use of a modern processor, the device reacts instantly to user commands, ensuring smooth channel switching and seamless menu operation.

The main advantage of the product is its versatility. Equipped with an HDMI connector, it guarantees the highest quality of digital transmission to modern televisions, while the presence of a SCART (EURO) socket makes the tuner compatible with older receivers as well. Additionally, the digital S/PDIF Coaxial audio output allows for the connection of external sound systems, which, combined with Dolby Digital (AC-3) support, provides a cinematic 5.1 sound experience.

The device also acts as a multimedia center. The USB 2.0 port located on the housing allows for the connection of external hard drives or flash drives. Users can thus play their own collections of photos, music, and movies directly on the TV screen. The PVR (Personal Video Recorder) function enables recording of favorite programs, and the Electronic Program Guide (EPG) makes it easy to plan viewing and check the schedule.

Device advantages:

1. High resolution Full HD 1080p ensuring incredible image sharpness.

2. Built-in media player supporting movies, music, and photos from USB.

3. Compatibility with older televisions thanks to the SCART (EURO) connector.

4. Support for modern satellite installations (Unicable, DiSEqC).

5. Energy efficiency - power consumption in standby mode below 1W.

6. Digital S/PDIF audio output for home theater systems.

7. Intuitive menu in Polish and easy configuration.

Compact dimensions and an elegant black housing make the tuner fit perfectly into any space under the TV. The intuitive menu in Polish and the included remote control make configuration and daily use extremely simple, even for less technically advanced users.

Specification

Standards and Compatibility

Full compliance with DVB-S and DVB-S2 standards. The device supports the reception of digital satellite television in SD and HD formats.

Frequency and Impedance

Input frequency range: 950 MHz ... 2150 MHz. Input impedance is 75 Ω, which is the standard for antenna installations.

Image Resolution

Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p (Full HD). This ensures compatibility with every type of television.

Signal Demodulation

Support for advanced demodulation methods: QPSK, 8PSK, 16APSK, 32APSK. This allows for stable signal reception even with weaker transmission parameters.

Image Formats

Option to select display format: 4:3 or 16:9. Support for Pan & Scan and Letterbox modes.

Video Decoding

Support for codecs: MPEG-2, MPEG-4 AAC, MPEG-4 HE-AAC and H.264 (AVC). This guarantees smooth playback of most channels and video files.

Audio Decoding

Support for the Dolby Digital (AC-3) standard, which enables the transmission of high-quality surround sound to an amplifier.

Audio Sampling

Supported audio sampling frequencies: 22.1 kHz, 32 kHz, 44.1 kHz and 48 kHz.

Interfaces and Connectors

1x HDMI (digital), 1x EURO (SCART - analog), 1x F-type socket (LNB input), 1x USB 2.0 (on the front panel), 1x S/PDIF Coaxial (digital audio).

Antenna Support (DiSEqC)

Full compatibility with DiSEqC 1.0, 1.2, 1.3, USALS and UNICABLE protocols, which allows for operation in complex installations with multiple satellites.

Multimedia Functions (USB)

The built-in USB port allows for the connection of data carriers for multimedia playback and the use of PVR (recording) and TimeShift functions.

Software and Interface

The tuner's integrated firmware offers an advanced user interface in multiple languages, including Polish, German, and English. The system allows for instant channel searching using the Blind Scan method and management of favorite lists, which facilitates the organization of hundreds of satellite stations. The Electronic Program Guide (EPG) allows for a 7-day schedule preview and programming PVR recordings to an external USB carrier. The software supports subtitles, teletext, and allows for system updates via the USB port, which ensures access to the latest features and stability fixes. The media player built into the software handles MKV, AVI, MP3, and JPEG formats smoothly, offering rewind, pause, and repeat functions. The graphical interface is clear and optimized for speed, which eliminates delays during navigation.

Power Parameters

External power supply: 12 V DC / 1 A. Power consumption: maximum 8 W during operation and below 1 W in standby mode (Deep Sleep).

Operating Conditions and Environment

Device intended for indoor use. Operating temperature range: 0 °C ... 40 °C. Metal-plastic housing with ventilation holes.

Contents

1x OPTI-AX300-PLUS satellite tuner

1x 12V/1A power adapter

1x Remote control

1x User manual PL

Dimensions, Weight

Product dimensions: 130 x 180 x 40 mm (D x W x H)

Packaging dimensions: 165 x 245 x 55 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 468 g
