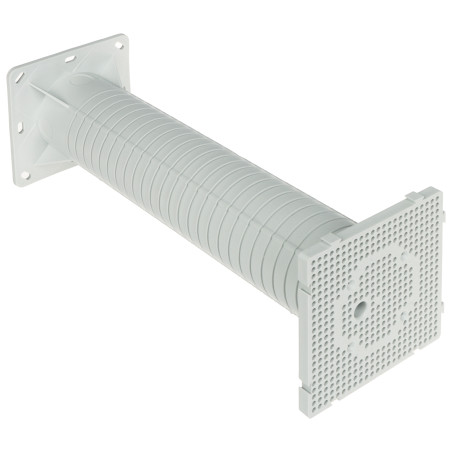

Mounting plate for facade insulation 50-300mm holder for cameras lighting sensors installation box KOPOS MDZ-300-KB
zł177.65
Tax included
The professional MDZ-300-KB mounting plate is an advanced structural solution that enables safe and aesthetic installation of electrical devices on building facades with a thick layer of insulation. This product is indispensable for installing outdoor lighting, motion sensors, surveillance cameras, and electrical sockets on walls covered with polystyrene or mineral wool with a thickness from 50 mm up to 300 mm.
The main advantage of the plate is its modular design, which allows for precise adjustment of the carrier length to the actual insulation thickness. As a result, the end device adheres perfectly to the plaster, and the entire structure rests on a stable load-bearing wall base, which prevents equipment from being torn off or the facade from being damaged. The material from which the plate is made is a high-class self-extinguishing plastic with thermal resistance up to 850°C, which ensures the highest level of fire safety.
Product advantages:
- Versatility: supports insulation with a thickness from 5 cm to 30 cm.
- Durability: the permissible load is 40N, which allows for the installation of heavier elements.
- Safety: self-extinguishing material and high voltage insulation up to 400V.
- Complete set: the package includes wall plugs and mounting screws, which eliminates the need to purchase additional accessories.
- Aesthetics: the light gray color blends perfectly with modern architecture.
- Resistance: a wide operating temperature range from -25°C to +60°C guarantees reliability in all weather conditions.
Installation of the MDZ-300-KB plate is intuitive and fast. The carrier, along with the insulation insert, is cut to the required length, attached to the wall using the included wall plugs, and then the mounting plate is applied, to which the target device is screwed. This is a professional approach to installation that protects the building structure and ensures the longevity of the mounted equipment.
Mounting plate for facade insulation 50-300mm holder for cameras lighting sensors installation box
Model: KOPOS MDZ-300-KB
EAN: 6931240058442 SKU: 931058445
- Designed for insulation systems with a thickness from 50 to 300 mm
- Made of high-quality self-extinguishing plastic
- High temperature resistance up to 850°C
- Permissible load up to 40N at a 180mm extension
- Wide operating temperature range from -25°C to 60°C
- Includes a set of wall plugs and mounting screws
- Possibility to precisely cut the carrier to the insulation thickness
- Aesthetic light gray color (RAL 7035)
Description
The professional MDZ-300-KB mounting plate is an advanced structural solution that enables safe and aesthetic installation of electrical devices on building facades with a thick layer of insulation. This product is indispensable for installing outdoor lighting, motion sensors, surveillance cameras, and electrical sockets on walls covered with polystyrene or mineral wool with a thickness from 50 mm up to 300 mm.
The main advantage of the plate is its modular design, which allows for precise adjustment of the carrier length to the actual insulation thickness. As a result, the end device adheres perfectly to the plaster, and the entire structure rests on a stable load-bearing wall base, which prevents equipment from being torn off or the facade from being damaged. The material from which the plate is made is a high-class self-extinguishing plastic with thermal resistance up to 850°C, which ensures the highest level of fire safety.
Product advantages:
- Versatility: supports insulation with a thickness from 5 cm to 30 cm.
- Durability: the permissible load is 40N, which allows for the installation of heavier elements.
- Safety: self-extinguishing material and high voltage insulation up to 400V.
- Complete set: the package includes wall plugs and mounting screws, which eliminates the need to purchase additional accessories.
- Aesthetics: the light gray color blends perfectly with modern architecture.
- Resistance: a wide operating temperature range from -25°C to +60°C guarantees reliability in all weather conditions.
Installation of the MDZ-300-KB plate is intuitive and fast. The carrier, along with the insulation insert, is cut to the required length, attached to the wall using the included wall plugs, and then the mounting plate is applied, to which the target device is screwed. This is a professional approach to installation that protects the building structure and ensures the longevity of the mounted equipment.
Specification
Product type
Specialized mounting plate for building insulation systems (ETICS)
Insulation compatibility
Support for insulation layers (polystyrene, mineral wool) in the range from 50 mm to 300 mm thickness
Electrical insulation
Dielectric strength and voltage insulation at approximately 400 V AC
Environmental conditions
Adapted for operation in extreme outdoor temperatures from -25 °C to +60 °C
Mechanical load capacity
Maximum static load is 40 N at a distance of 180 mm from the load-bearing wall surface
Fire safety
Made of material with a flammability index of 850 °C (glow wire test)
Material properties
High-quality plastic with self-extinguishing properties, resistant to aging and UV
Color scheme
Finished in light gray, matching standard junction boxes and facade equipment
Construction
The system consists of one main support segment and a mounting faceplate
Mounting element dimensions
External plate with dimensions 119 x 119 x 20 mm providing a large support surface
Main carrier dimensions
Support column with dimensions 120 x 120 x 317.5 mm with the possibility of shortening to the required length
Mounting accessories
Dedicated wall plugs and screws for stable seating in the wall are included in the set
Practical application
Ideal for IP cameras, LED lighting, PIR sensors, hermetic sockets, and alarm signalers
Manufacturer
Renowned KOPOS brand, a leader in the field of electrical installation equipment and mounting technology
Software and Interface
The MDZ-300-KB device is a passive structural element and does not have built-in software, operating systems, or digital interfaces. As a mechanical product, it does not require configuration via a web browser, mobile applications, or dedicated software. Its functionality is limited to physical mounting support for other active devices. It has no communication ports, Wi-Fi, or Bluetooth modules, making it completely resistant to cyberattacks and system errors. It is a 100% hardware solution, dedicated to continuous operation in difficult outdoor conditions without the need for firmware updates or status monitoring by IT systems.
Contents
1x Mounting plate
1x Carrier with insulation
1x Set of wall plugs
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 318 x 120 x 120 mm (D x W x H)
Package dimensions: 130 x 375 x 130 mm (D x W x H)
Product weight: 404 g
Weight with packaging: 508 g
