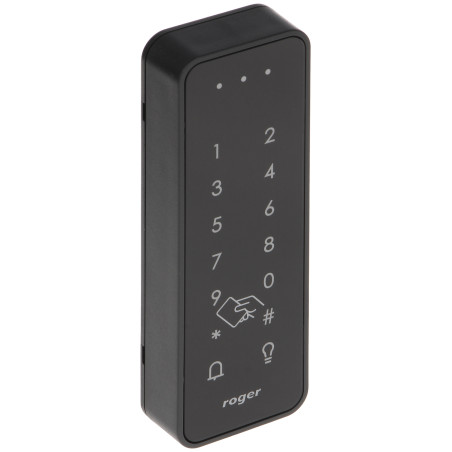

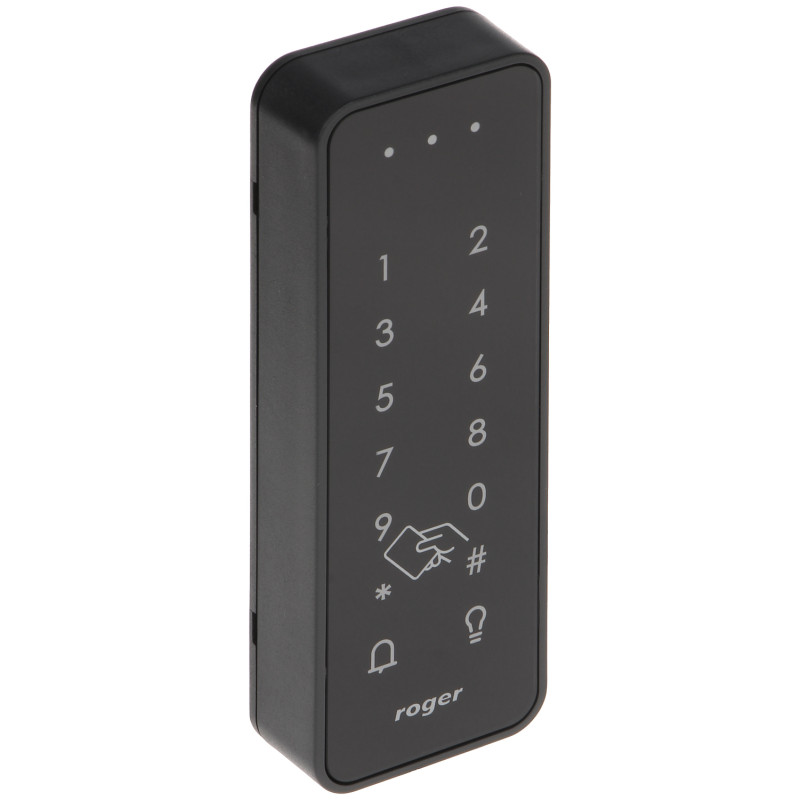

MIFARE 13.56MHz Proximity Reader with Keypad and Doorbell Button RS-485 for RACS 5 System ROGER MCT84M
zł602.70
Tax included
The proximity reader is a key element of modern security systems, and the presented model offers exceptional reliability and functionality. The device is dedicated to indoor use within the advanced RACS 5 access control system. Thanks to support for the MIFARE 13.56 MHz standard, users can utilize secure cards and key fobs, which minimizes the risk of unauthorized access.
The main advantage of the device is the integrated, backlit keypad, which allows for two-factor authentication (card + PIN). Additionally, the built-in doorbell button allows the reader to function as a communication interface at the entrance to an office or apartment. Communication takes place via the RS-485 standard, which ensures high resistance to interference and allows for the creation of extensive installations.
The physical security of the device is at the highest level thanks to dual tamper protection. The system will immediately detect an attempt to open the housing or detach it from the surface, allowing for a quick response from security services. The reader is also characterized by low power consumption (approx. 50mA) and a wide supply voltage range, which facilitates the design of emergency power systems.
The aesthetic design and compact housing with an IP41 protection rating make this product not only durable but also discreet and elegant. The possibility of full configuration using the free RogerVDM software allows for the adjustment of every aspect of the reader's operation to the specific requirements of the facility, from the format of transmitted data to the way the indicator LEDs light up.
MIFARE 13.56MHz Proximity Reader with Keypad and Doorbell Button RS-485 for RACS 5 System
Model: ROGER MCT84M
EAN: 6931240056981 SKU: 931056988
- Support for MIFARE 13.56 MHz S50 cards
- Built-in backlit silicone keypad
- Dedicated doorbell button
- RS-485 communication interface
- Full tamper protection
- LED optical and acoustic signaling
- Configuration and update via RogerVDM
- Reading of CSN, SSN, MSN numbers
- IP41 ingress protection rating
- Operation in the RACS 5 system
Description
The proximity reader is a key element of modern security systems, and the presented model offers exceptional reliability and functionality. The device is dedicated to indoor use within the advanced RACS 5 access control system. Thanks to support for the MIFARE 13.56 MHz standard, users can utilize secure cards and key fobs, which minimizes the risk of unauthorized access.
The main advantage of the device is the integrated, backlit keypad, which allows for two-factor authentication (card + PIN). Additionally, the built-in doorbell button allows the reader to function as a communication interface at the entrance to an office or apartment. Communication takes place via the RS-485 standard, which ensures high resistance to interference and allows for the creation of extensive installations.
The physical security of the device is at the highest level thanks to dual tamper protection. The system will immediately detect an attempt to open the housing or detach it from the surface, allowing for a quick response from security services. The reader is also characterized by low power consumption (approx. 50mA) and a wide supply voltage range, which facilitates the design of emergency power systems.
The aesthetic design and compact housing with an IP41 protection rating make this product not only durable but also discreet and elegant. The possibility of full configuration using the free RogerVDM software allows for the adjustment of every aspect of the reader's operation to the specific requirements of the facility, from the format of transmitted data to the way the indicator LEDs light up.
Specification
Compatibility
RACS 5 Access Control System (Roger)
Card support
13.56 MHz MIFARE S50 (Ultralight, Classic)
Reading range
Up to 5 cm
Communication interface
RS-485 (two-wire transmission standard)
Keypad
Built-in, silicone with backlit buttons
Doorbell button
Yes, integrated on the front panel
Signaling
Multicolor LED indicator and built-in sound signal (buzzer)
Tamper protection
Tamper output - detection of housing opening and detachment from the surface
Card number reading
CSN (Chip Serial Number), SSN (Secondary Serial Number), MSN (Memory Serial Number)
Power supply
10 ... 15 V DC (direct current)
Power consumption
Average consumption at approx. 50 mA
Operating conditions
Temperature: -10 °C ... 50 °C; Humidity: 10 ... 95 % (non-condensing)
Ingress protection rating
IP41 (protection against solid objects >1mm and dripping water)
RogerVDM Software
RogerVDM software is a specialized application designed for low-level configuration of RACS 5 system devices. The program allows for precise adjustment of the reader's operating parameters, such as MIFARE card reading modes, keypad settings, and the reactions of LED indicators and the buzzer. A key functionality is the ability to remotely update firmware directly via the RS-485 bus, which significantly facilitates system maintenance without the need for physical access to the inside of the reader's housing. This tool is essential for professional installers who care about the optimal operation of access control.
Contents
1x Proximity reader
1x Set of mounting screws
1x Installation and operation manual
Dimensions, Weight
Product dimensions: 22 x 45 x 130 mm (D x W x H)
Packaging dimensions: 55 x 135 x 160 mm (D x W x H)
Product weight: 100 g
Weight with packaging: 170 g
