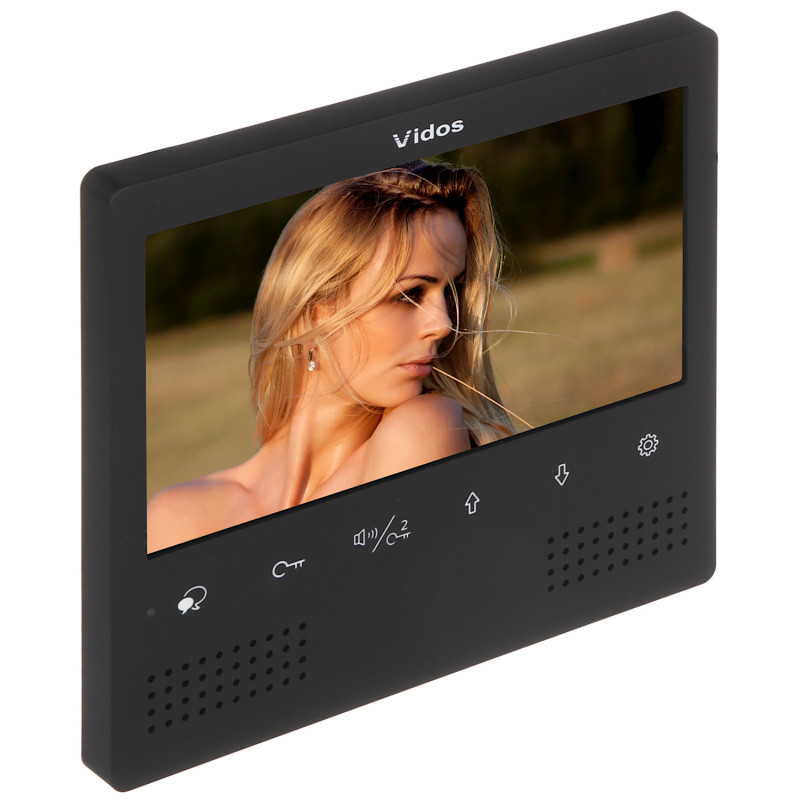

7 inch LCD Touchscreen Video Intercom Indoor Station 2-Wire Duo System Black Hands-free VIDOS M1023B-2
zł713.55
Tax included
This advanced indoor station is the heart of a modern video intercom system, providing not only security but also exceptional user comfort. The device is equipped with a large, 7-inch color TFT-LCD screen with a resolution of 800x480 pixels, which guarantees a clear and detailed view of visitors to your property. Thanks to the use of touchscreen technology, operating the OSD menu is intuitive and resembles using a smartphone. The panel features an ultra-slim design, making it blend perfectly with modern interiors without protruding significantly from the wall.
One of the greatest advantages of the VIDOS DUO system is its simplicity of installation – all communication and power are handled by just two wires without the need to maintain polarity, which drastically reduces the risk of installation errors and shortens the installer's working time. The device operates in hands-free mode, which eliminates the need for a traditional handset. A built-in high-quality microphone and speakers ensure crystal-clear two-way communication.
Additionally, the user has access to 20 different ringtones and a 'do not disturb' function, which allows for temporary muting of sound signals, which is invaluable during rest or work requiring concentration. The panel allows for control of not only the electric strike in the wicket but also the automatic gate drive, and thanks to optional modules, the system can be expanded to support additional CCTV cameras and lighting control on the property. This is a comprehensive solution for demanding users who value aesthetics and functionality.
7 inch LCD Touchscreen Video Intercom Indoor Station 2-Wire Duo System Black Hands-free
Model: VIDOS M1023B-2
EAN: 6931240026113 SKU: 931026115
- 2-wire non-polarized system (Duo)
- 7-inch color TFT-LCD touchscreen
- Ultra-slim hands-free housing
- Support for up to 4 door stations and 4 CCTV cameras
- Addressed intercom and call forwarding function
- Electric strike and automatic gate control
- 'Do not disturb' mode with time scheduling
- Lighting control capability (with B5 module)
- Intuitive OSD screen menu in multiple languages
- Plug & Play installation
Description
This advanced indoor station is the heart of a modern video intercom system, providing not only security but also exceptional user comfort. The device is equipped with a large, 7-inch color TFT-LCD screen with a resolution of 800x480 pixels, which guarantees a clear and detailed view of visitors to your property. Thanks to the use of touchscreen technology, operating the OSD menu is intuitive and resembles using a smartphone. The panel features an ultra-slim design, making it blend perfectly with modern interiors without protruding significantly from the wall.
One of the greatest advantages of the VIDOS DUO system is its simplicity of installation – all communication and power are handled by just two wires without the need to maintain polarity, which drastically reduces the risk of installation errors and shortens the installer's working time. The device operates in hands-free mode, which eliminates the need for a traditional handset. A built-in high-quality microphone and speakers ensure crystal-clear two-way communication.
Additionally, the user has access to 20 different ringtones and a 'do not disturb' function, which allows for temporary muting of sound signals, which is invaluable during rest or work requiring concentration. The panel allows for control of not only the electric strike in the wicket but also the automatic gate drive, and thanks to optional modules, the system can be expanded to support additional CCTV cameras and lighting control on the property. This is a comprehensive solution for demanding users who value aesthetics and functionality.
Specification
System and Compatibility
Fully compatible with the digital VIDOS DUO system; supports multi-tenant and single-family systems.
Display and Screen
7-inch color TFT-LCD matrix; fully touchscreen control panel ensuring convenient navigation.
Resolution and Image
800 x 480 pixels; high contrast and brightness ensuring readability in various lighting conditions.
Installation and Cabling
Requires only 2 non-polarized wires; Plug & Play technology facilitating quick system startup.
Audio and Communication
Hands-free system (no handset); built-in microphone and speakers; two-way communication (duplex).
Control and Interface
Backlit touchscreen; intuitive OSD graphic menu; physical DIP switches for ID address configuration.
System Expansion
Expandable with 3 additional indoor stations or VIDOS DUO series uniphones in one premises.
Additional Functions
'Do not disturb' mode (mute for a specified time); 20 ringtones to choose from; image preview with sound.
CCTV Camera Support
Possibility to connect up to 4 additional analog CCTV cameras using the M-K4 module.
Automation Control
Independent control of electric strike and gate drive; option to control lighting via B5 module.
Power Supply and Power Consumption
Operating voltage: 20V DC - 28V DC; power consumption: 0.2W in standby mode, maximum 6W during operation.
Construction and Materials
Housing made of high-quality black plastic; surface mounting.
Operating Conditions
Operating temperature from 0°C to +40°C; intended for indoor use.
Software and Languages
The OSD (On-Screen Display) menu in the M1023B-2 panel has been designed for maximum clarity and ease of configuration. The graphical interface allows quick access to all key system functions, such as adjusting image parameters (brightness, contrast, color saturation), selecting one of 20 ringtones, and setting the call volume. The software supports many languages, including Polish, English, French, Spanish, German, Russian, and Italian, which facilitates daily operation. From the menu, the user can manage the intercom function (addressed), view images from connected CCTV cameras, and configure the 'do not disturb' mode. The Plug & Play system ensures that most settings are automatically recognized upon connection.
Contents
1x M1023B-2 Indoor Station
1x Wall mounting bracket
1x Set of screws and wall plugs
1x User manual
Dimensions, Weight
Product dimensions: 21 x 173 x 161 mm (D x W x H)
Package dimensions: 40 x 242 x 167 mm (D x W x H)
Product weight: 380 g
Weight with packaging: 498 g
