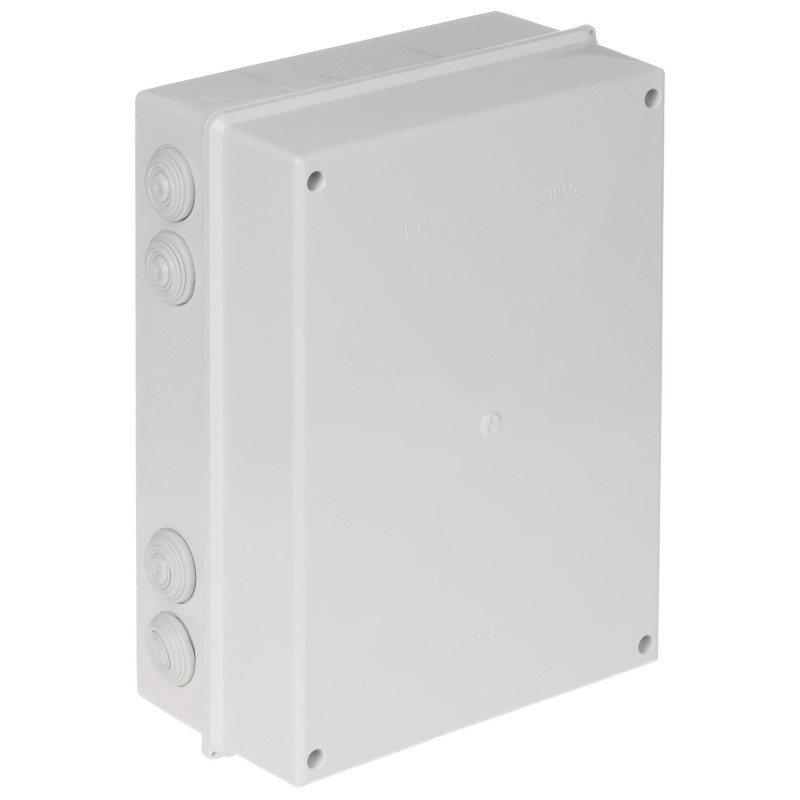

Surface mounted junction box IP55 with 8 cable glands hermetic installation box ABS gray 303x214x123mm Elektro-Plast LUX-303X214
zł145.18
Tax included
The LUX-303X214/EPN junction box is a professional solution designed for creating safe and durable connections in electrical installations and video surveillance systems. Made of high-quality ABS plastic, it is characterized by exceptional resistance to mechanical damage and the influence of adverse external factors. Thanks to its IP55 ingress protection rating, the product effectively protects the interior against dust ingress and water jets, allowing for installation both indoors and in areas exposed to moisture.The main advantage of the box is that it is equipped with 8 threadless cable glands, which significantly speed up the wiring process while ensuring proper sealing of the cable entry points. The design of the box allows for easy sealing, which is crucial in installations requiring protection against unauthorized access. The cover, fastened with sturdy screws, guarantees stability and secure closure even in difficult operating conditions.Product advantages:- High IP55 ingress protection class ensuring protection against dust and water.- Durable ABS material resistant to UV radiation and impacts.- 8 ready-made entries with cable glands facilitating cable organization.- Large internal space allowing for free arrangement of wires and connectors.- Aesthetic gray color RAL 7035 matching most facades and technical interiors.- Possibility of sealing for increased installation security.- Compliance with strict PN-IEC safety standards.The LUX-303X214/EPN box is an ideal choice for installers looking for reliable electrical equipment that will work well in demanding industrial and domestic projects.
Surface mounted junction box IP55 with 8 cable glands hermetic installation box ABS gray 303x214x123mm
Model: Elektro-Plast LUX-303X214/EPN
EAN: 6931240012352 SKU: 931012355
- Ingress protection class IP55
- 8 cable entries with a diameter of 29 mm
- Made of durable ABS plastic
- Flammability index 650 °C
- Screw-on cover
- Possibility to seal the housing
- Integrated threadless cable glands
- Compliance with PN-IEC-60998-1:2006 standard
Description
The LUX-303X214/EPN junction box is a professional solution designed for creating safe and durable connections in electrical installations and video surveillance systems. Made of high-quality ABS plastic, it is characterized by exceptional resistance to mechanical damage and the influence of adverse external factors. Thanks to its IP55 ingress protection rating, the product effectively protects the interior against dust ingress and water jets, allowing for installation both indoors and in areas exposed to moisture.
The main advantage of the box is that it is equipped with 8 threadless cable glands, which significantly speed up the wiring process while ensuring proper sealing of the cable entry points. The design of the box allows for easy sealing, which is crucial in installations requiring protection against unauthorized access. The cover, fastened with sturdy screws, guarantees stability and secure closure even in difficult operating conditions.Product advantages:- High IP55 ingress protection class ensuring protection against dust and water.- Durable ABS material resistant to UV radiation and impacts.- 8 ready-made entries with cable glands facilitating cable organization.- Large internal space allowing for free arrangement of wires and connectors.- Aesthetic gray color RAL 7035 matching most facades and technical interiors.- Possibility of sealing for increased installation security.- Compliance with strict PN-IEC safety standards.The LUX-303X214/EPN box is an ideal choice for installers looking for reliable electrical equipment that will work well in demanding industrial and domestic projects.Specification
Device type
Surface mounted junction box
Series
LUX - Professional line with increased durability
Number of entries
8 pieces with a diameter of 29 mm each, arranged symmetrically on the sides of the housing
Type of cable glands
Threadless, flexible cable glands integrated with the housing for maximum tightness
Voltage insulation
The rated insulation voltage is 400 V AC, which allows for safe operation in standard power grids
Ingress protection class
IP55 - protection against dust (no harmful deposits) and protection against water jets (12.5 l/min) sprayed on the housing from any side
Thermal resistance
The flammability index of the material is 650 °C (glow wire test), which ensures a high level of fire safety
Material
High-quality ABS (Acrylonitrile-butadiene-styrene) plastic characterized by rigidity and scratch resistance
Color scheme
Light gray finish compliant with the RAL 7035 palette, resistant to discoloration under the influence of light
Closing system
Cover screwed on using corrosion-resistant steel screws, ensuring even pressure on the gasket
Security features
Special handles allowing for the application of security seals against opening by unauthorized persons
Compliance with standards
Product fully compliant with the Polish and European standard PN-IEC-60998-1:2006 regarding connecting equipment
Internal dimensions
Working space with dimensions of 287 x 200 x 112 mm allowing for the installation of DIN rails or large terminal blocks
Operating conditions
Designed for surface mounting in a wide temperature range, resistant to typical weather conditions
Manufacturer warranty
24 months (2 years) from the date of purchase
Contents
1x LUX-303X214/EPN junction box
1x Set of mounting screws for the cover
8x Integrated rubber cable glands
Dimensions, Weight
Product dimensions: 123 x 303 x 214 mm (Depth x Width x Height)
Package dimensions: 128 x 310 x 220 mm (Depth x Width x Height)
Product weight: 840 g
Weight with packaging: 928 g
