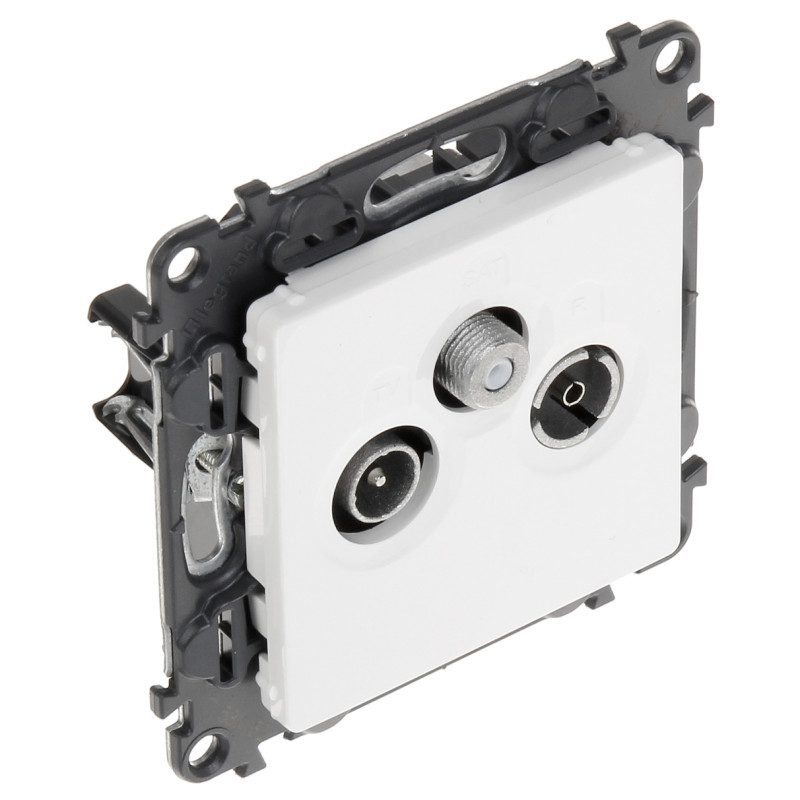

R-TV SAT Flush Mounted End Socket White Electrical Installation Antenna Signal LEGRAND LE-753152
zł155.91
Tax included
The LE-753152 end socket is an advanced electrical installation component from the world-renowned Valena Life series, manufactured by Legrand. This product is designed for the most demanding users who seek a combination of modern aesthetics and top-tier technical functionality. The device serves as a terminal subscriber socket, integrating three independent signal paths into one housing: radio (R), television (TV), and satellite (SAT). Thanks to this solution, the user can neatly and aesthetically route all necessary multimedia signals to their receiver in the living room, bedroom, or office.
One of the main advantages of the LE-753152 socket is its extremely low insertion loss, which is only 1.5 dB for R and TV paths and 2.0 dB for the SAT path. Such parameters ensure that the signal arriving from the antenna or collective installation does not lose quality, which is crucial for receiving 4K high-definition channels and a stable radio signal. The product features a solid construction and a mounting mechanism based on claws or screws, allowing for secure seating in a standard flush-mounted box. The Valena Life series stands out with a unique design that makes the socket a subtle decorative element of the interior. Made of high-quality plastic, it ensures resistance to scratches and discoloration resulting from exposure to sunlight. By choosing this model, you gain the certainty of longevity and reliability, which is confirmed by the reputation of the Legrand brand. It is an ideal solution for multi-family housing and single-family homes equipped with extensive antenna systems.
R-TV SAT Flush Mounted End Socket White Electrical Installation Antenna Signal
Model: LEGRAND LE-753152
EAN: 6931240090534 SKU: 931090535
- Integration of three signal outputs: Radio (R), Television (TV), Satellite (SAT)
- Very low insertion loss ensuring the highest signal quality
- Designed for flush mounting in standard installation boxes
- Elegant design from the modern Valena Life series matching any interior
- Solid wire terminals guaranteeing a durable and secure connection
- High resistance to mechanical damage and UV radiation
Description
The LE-753152 end socket is an advanced electrical installation component from the world-renowned Valena Life series, manufactured by Legrand. This product is designed for the most demanding users who seek a combination of modern aesthetics and top-tier technical functionality. The device serves as a terminal subscriber socket, integrating three independent signal paths into one housing: radio (R), television (TV), and satellite (SAT). Thanks to this solution, the user can neatly and aesthetically route all necessary multimedia signals to their receiver in the living room, bedroom, or office.
One of the main advantages of the LE-753152 socket is its extremely low insertion loss, which is only 1.5 dB for R and TV paths and 2.0 dB for the SAT path. Such parameters ensure that the signal arriving from the antenna or collective installation does not lose quality, which is crucial for receiving 4K high-definition channels and a stable radio signal. The product features a solid construction and a mounting mechanism based on claws or screws, allowing for secure seating in a standard flush-mounted box. The Valena Life series stands out with a unique design that makes the socket a subtle decorative element of the interior. Made of high-quality plastic, it ensures resistance to scratches and discoloration resulting from exposure to sunlight. By choosing this model, you gain the certainty of longevity and reliability, which is confirmed by the reputation of the Legrand brand. It is an ideal solution for multi-family housing and single-family homes equipped with extensive antenna systems.
Specification
Device type
R-TV SAT end antenna socket
Product series
Valena Life
Mounting method
Flush-mounted (claws or screws)
TV frequency range
4 ... 30 MHz / 47 ... 68 MHz / 120 ... 862 MHz
Radio path frequency range (R)
87.5 ... 108 MHz
Satellite path frequency range (SAT)
950 ... 2400 MHz
TV path insertion loss
1.5 dB - minimization of television signal losses
Radio path insertion loss
1.5 dB - optimal for FM/DAB+ reception
SAT path insertion loss
2.0 dB - high performance in the satellite band
Application
Individual and collective star-type antenna installations
SAT path characteristics
DC pass allowing power supply for LNB converters
Material and color
High-quality plastic, white color
Compliance with standards
EN 50083-4, high EMI shielding effectiveness
Warranty
2 years (24 months)
Software and Interface
Passive device. The product does not have built-in software or a digital interface. It operates on the principle of passive distribution of radio and microwave frequency signals in coaxial installations. It does not require software configuration or firmware updates. Full compatibility with analog and digital DVB-T2, DVB-S2 tuners, and FM/DAB+ receivers without the need to install additional control applications. The physical interface consists of standard IEC and F-type connectors.
Contents
1x End socket LE-753152
Dimensions, Weight
Product dimensions: 28 x 75 x 75 mm (Depth x Width x Height)
Packaging dimensions: 45 x 75 x 75 mm (Depth x Width x Height)
Product weight: 118 g
Weight with packaging: 124 g
