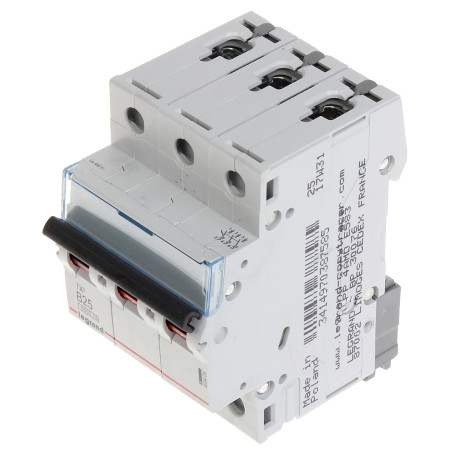

Three-phase miniature circuit breaker 25A Type B S303 fuse DIN rail TS-35 current protection LEGRAND LE-403404
zł147.51
Tax included
A miniature circuit breaker is the foundation of safety for any modern electrical installation. This model, a product of the world-renowned Legrand brand, guarantees reliability and precision in operation. The device is designed for use in three-phase systems, offering a rated current of 25A, making it an ideal solution for protecting lighting circuits, power outlets, and control systems in residential and commercial buildings.
Key advantages and functionalities:
- Type B characteristic: Provides optimal protection for devices with low inrush current, reacting immediately to the exceeding of safe current values.
- High short-circuit capacity: The 6000A (6kA) parameter demonstrates the device's ability to safely interrupt the circuit even during very strong short circuits, protecting the entire cable infrastructure from irreversible damage.
- Modular design: The width of 3 modules (53mm) allows for easy integration of the circuit breaker into standard electrical distribution boards.
- Ease of installation: The DIN rail TS-35 mounting system is a market standard, ensuring speed and stability of installation.
- Ergonomics and clarity: A special space for a label allows for precise marking of power sections, which significantly facilitates subsequent operation and maintenance of the installation.
- Wide compatibility: The ability to work with comb and pin busbars allows for aesthetic and safe connections inside the distribution board.
- Expansion: The device is compatible with DX3 series accessories, allowing for remote control or monitoring of contact status.
By investing in this circuit breaker, you choose a product that meets the highest quality standards and safety norms. It is a solution dedicated to installers and users who do not accept compromises regarding the protection of property and life. A solid plastic housing and a precise tripping mechanism are features that make Legrand circuit breakers the most frequently chosen solution by professionals in the electrical installation industry.
Three-phase miniature circuit breaker 25A Type B S303 fuse DIN rail TS-35 current protection
Model: LEGRAND LE-403404
EAN: 6931240052464 SKU: 931052468
- Type B tripping characteristic
- Rated current 25A
- Three-phase design (3-pole)
- Rated short-circuit breaking capacity 6000A
- Mounting on standard DIN rail TS-35
- Compatibility with DX3 series accessories
- Integrated circuit labeling area
- Compatible with comb and pin busbars
Description
A miniature circuit breaker is the foundation of safety for any modern electrical installation. This model, a product of the world-renowned Legrand brand, guarantees reliability and precision in operation. The device is designed for use in three-phase systems, offering a rated current of 25A, making it an ideal solution for protecting lighting circuits, power outlets, and control systems in residential and commercial buildings.
Key advantages and functionalities:
- Type B characteristic: Provides optimal protection for devices with low inrush current, reacting immediately to the exceeding of safe current values.
- High short-circuit capacity: The 6000A (6kA) parameter demonstrates the device's ability to safely interrupt the circuit even during very strong short circuits, protecting the entire cable infrastructure from irreversible damage.
- Modular design: The width of 3 modules (53mm) allows for easy integration of the circuit breaker into standard electrical distribution boards.
- Ease of installation: The DIN rail TS-35 mounting system is a market standard, ensuring speed and stability of installation.
- Ergonomics and clarity: A special space for a label allows for precise marking of power sections, which significantly facilitates subsequent operation and maintenance of the installation.
- Wide compatibility: The ability to work with comb and pin busbars allows for aesthetic and safe connections inside the distribution board.
- Expansion: The device is compatible with DX3 series accessories, allowing for remote control or monitoring of contact status.
By investing in this circuit breaker, you choose a product that meets the highest quality standards and safety norms. It is a solution dedicated to installers and users who do not accept compromises regarding the protection of property and life. A solid plastic housing and a precise tripping mechanism are features that make Legrand circuit breakers the most frequently chosen solution by professionals in the electrical installation industry.
Specification
Device type
Three-phase miniature circuit breaker (installation fuse) designed for effective protection of electrical installations against the effects of overloads and short circuits in multi-phase systems.
Rated current
25 A - this is the value of the current that the circuit breaker can conduct continuously under specified ambient conditions without causing the tripping mechanism to actuate.
Number of poles
3 (three-pole) - the device ensures simultaneous disconnection of all three supply phases in case of a fault detection in any of them, which is crucial for the protection of motors and 3-phase devices.
Tripping characteristic
Type B - this characteristic is dedicated to the protection of cables and receivers in lighting, control, and socket circuits where there are no high inrush currents. The magnetic tripping threshold is in the range of 3 to 5 times the rated current.
Rated short-circuit breaking capacity
6000 A (6 kA) according to the EN 60898-1 standard. This parameter defines the maximum short-circuit current that the circuit breaker is able to safely interrupt without damaging its structure.
Rated voltage
400 V AC (alternating current) at a frequency of 50 Hz. The device is fully adapted for operation in standard European low-voltage networks.
Terminal type
Solid screw terminals that guarantee durable wire clamping and minimize contact resistance, which prevents excessive heating of connection points.
Selected additional features
The device offers the possibility of being equipped with a wide range of DX3 series accessories, such as auxiliary contacts, signal contacts, shunt trips, and undervoltage releases, which allows for the construction of advanced automation systems.
Mounting compatibility
The circuit breaker is adapted for power supply and connection using professional comb (fork) or pin busbars, which significantly shortens installation time and improves the aesthetics of the distribution board.
Housing and mounting
Made of high-class insulating material, resistant to fire and high temperatures. Mounting is performed on a standard DIN rail TS-35 (euro rail).
Modular width
The device occupies 3 standard modules with a width of 17.5 mm each, which gives a total mounting width of approximately 53 mm.
Information functions
On the front panel of the device, there is a dedicated, transparent labeling window that allows for the placement of a card with a description of the protected circuit, facilitating identification during operation.
Technical limitations
The design of this specific model does not provide for the possibility of direct mechanical connection of residual current blocks (separate RCD circuit breakers are required in the installation).
Warranty and standards
The product is covered by a full 2-year manufacturer's warranty (24 months). It meets all required CE safety standards and installation standards applicable in the European Union.
Manufacturer
LEGRAND - a renowned French manufacturer of electrical installation equipment, known for the highest quality of workmanship and innovative solutions in the field of energy distribution.
Contents
1x Miniature circuit breaker LE-403404
1x Installation and operating manual
Dimensions, Weight
Product dimensions: 75 x 53 x 83 mm (D x W x H)
Package dimensions: 55 x 100 x 90 mm (D x W x H)
Product weight: 320 g
Weight with packaging: 346 g
