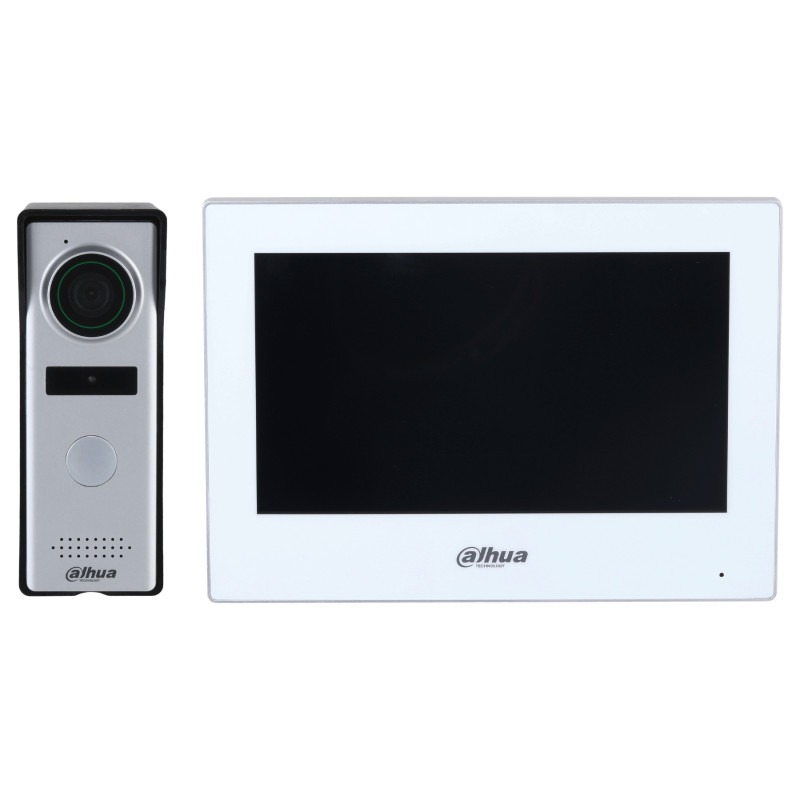

Hybrid Video Intercom Kit Wi-Fi 4-Wire 7 inch Touch Screen IP66 IR P2P DMSS Mobile App DAHUA KTH01
zł1,837.62
Tax included
The KTH01 video intercom kit is a modern hybrid solution combining traditional 4-wire installation with modern Wi-Fi technology. The heart of the system is the 7-inch VTH2624GW-WP touch monitor, which provides a crystal-clear image at a resolution of 1024x600 pixels. Thanks to the built-in wireless module, the user can answer calls and open the gate from anywhere in the world using the free DMSS smartphone app.
The advantages of the kit include, above all, the high resistance of the VTO1000J outdoor panel to weather conditions (IP66 ingress protection rating), which guarantees reliability all year round. A 1.3 Mpx camera with an IR infrared illuminator allows for the identification of visitors even in total darkness. The D-WDR function ensures image clarity in difficult lighting conditions, e.g., when the sun is shining directly towards the lens.
The system offers advanced security features, including support for up to 6 alarm inputs, which allows for integration with motion sensors or magnetic contacts, turning the monitor into a simple alarm control panel. The ability to save photos and short video messages on a Micro SD card (up to 64GB) ensures that you will never miss information about who visited you in your absence. Two-way audio communication with noise reduction ensures a comfortable conversation with the guest. The whole system is easy to install thanks to the included surface-mount housing and 12V/2A power supply, and the Polish language support makes the system user-friendly for everyone.
Hybrid Video Intercom Kit Wi-Fi 4-Wire 7 inch Touch Screen IP66 IR P2P DMSS Mobile App
Model: DAHUA KTH01
EAN: 6931240087190 SKU: 931087196
- Hybrid 4-Wire / Wi-Fi system
- 7-inch capacitive touch monitor
- 1.3 Mpx CMOS camera resolution
- Remote operation via DMSS mobile app
- Built-in IR infrared illuminator
- Outdoor panel ingress protection rating IP66
- Micro SD card support up to 64GB
- Integrated 6 alarm inputs and 1 output
- D-WDR function for improved image dynamics
- PoE or 12V DC power supply
Description
The KTH01 video intercom kit is a modern hybrid solution combining traditional 4-wire installation with modern Wi-Fi technology. The heart of the system is the 7-inch VTH2624GW-WP touch monitor, which provides a crystal-clear image at a resolution of 1024x600 pixels. Thanks to the built-in wireless module, the user can answer calls and open the gate from anywhere in the world using the free DMSS smartphone app.
The advantages of the kit include, above all, the high resistance of the VTO1000J outdoor panel to weather conditions (IP66 ingress protection rating), which guarantees reliability all year round. A 1.3 Mpx camera with an IR infrared illuminator allows for the identification of visitors even in total darkness. The D-WDR function ensures image clarity in difficult lighting conditions, e.g., when the sun is shining directly towards the lens.
The system offers advanced security features, including support for up to 6 alarm inputs, which allows for integration with motion sensors or magnetic contacts, turning the monitor into a simple alarm control panel. The ability to save photos and short video messages on a Micro SD card (up to 64GB) ensures that you will never miss information about who visited you in your absence. Two-way audio communication with noise reduction ensures a comfortable conversation with the guest. The whole system is easy to install thanks to the included surface-mount housing and 12V/2A power supply, and the Polish language support makes the system user-friendly for everyone.
Specification
Standards and Compatibility
DAHUA hybrid system, support for 4-Wire and IP Wi-Fi standards
Image Sensor
1.3 Mpx CMOS ensuring high detail quality
Optics and Viewing Angles
70° horizontal viewing angle, fixed-focus lens
Night Illumination
Built-in IR (infrared) illuminator enabling operation in total darkness
Audio and Communication
Built-in microphone and speaker, two-way communication (Full Duplex), volume control, ringtone selection
Image Functions
D-WDR - Wide Dynamic Range, automatic ICR infrared filter (day/night mode)
Monitor Screen
7 inches, capacitive touch screen, resolution 1024 x 600 px
Interfaces and Connectors
4-Wire interface, RJ-45 10/100 Mb/s port, RS-485 port
Network and Wi-Fi
Built-in Wi-Fi 2.4 GHz IEEE 802.11 b/g/n module, support for Dahua network protocols
Software and Application
The DMSS (Digital Mobile Surveillance System) mobile application is a professional tool for managing Dahua security systems. It enables live viewing from video intercom cameras, remote opening of doors or gates, as well as two-way voice communication with the person at the outdoor panel. The user receives real-time push notifications about doorbell calls or alarm events. The application supports access via P2P cloud, which eliminates the need for a static IP address. The interface is intuitive, available in Polish, and allows for the configuration of multiple devices simultaneously.
Alarm Functions
6 alarm inputs (possibility to connect sensors), 1 alarm output, support for exit button and door magnetic contact
Memory and Recording
Micro SD card slot up to 64GB, automatic saving of photos and short video messages
Power Supply and Power Consumption
PoE (802.3af) or 12V DC / 1A, power consumption: monitor ≤ 8.9W, outdoor panel ≤ 3W
Environmental Conditions
Operating temperature: -30 °C ... 60 °C (panel), -10 °C ... 55 °C (monitor), IP66 ingress protection rating
Contents
1x Indoor panel VTH2624GW-WP
1x Video intercom VTO1000J
1x Surface-mount housing
1x Switching power supply 12V/2A
1x Mounting accessories
Dimensions, Weight
Product dimensions: 26 x 190 x 135 mm (D x W x H)
Package dimensions: 110 x 305 x 165 mm (D x W x H)
Product weight: 530 g
Weight with packaging: 1164 g
