- New
LED Keypad for Spectra Magellan Alarm System 10-Zone Vertical White PARADOX K10V-N3Q
zł258.30
Tax included

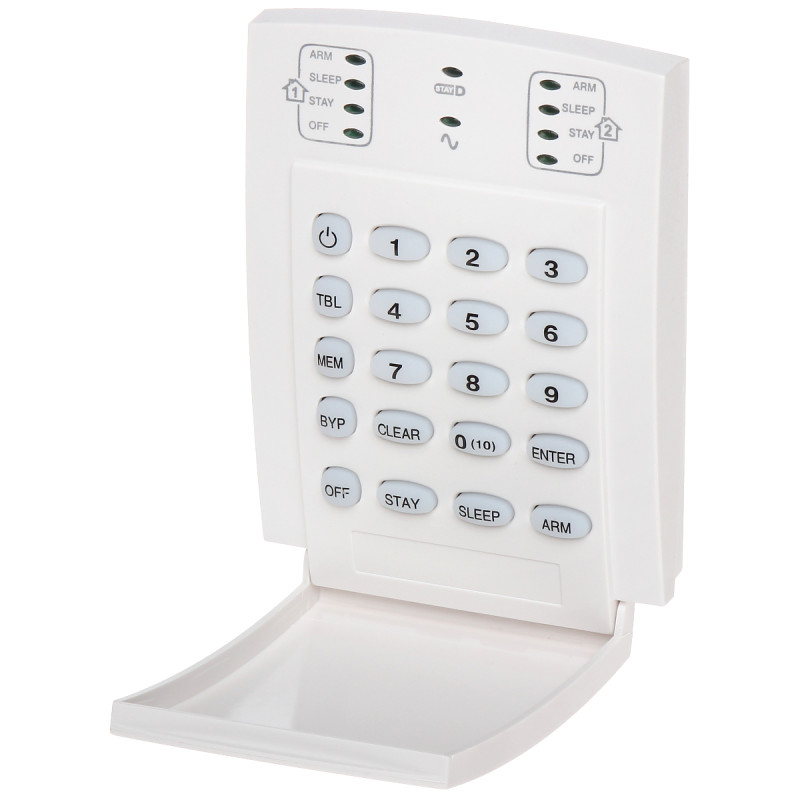

The Paradox K10V-N3Q is a professional LED keypad designed for daily operation of Spectra SP and Magellan series alarm systems. The device features a vertical orientation, allowing for aesthetic and discreet installation in space-constrained areas. Thanks to advanced microprocessor technology, the keypad ensures rapid response to user commands and exceptional operational stability within the entire security system.The main advantage of this model is its highly readable interface based on 10 LEDs, which intuitively indicate the status of individual detection zones and partitions. The user has access to fully backlit buttons, which significantly facilitates system operation at night or in total darkness. Additionally, the keypad is equipped with audible signaling that confirms operations or notifies of system events, such as zone violations or power failures.The device supports the innovative StayD function, which revolutionizes facility protection by ensuring 24/7 security without the need to disarm the system every time you enter. The keypad also allows for the immediate triggering of special alarms: fire, medical, and panic directly from the panel, which significantly increases the safety of residents and property. The solid white housing blends perfectly with modern interiors, and full compliance with rigorous European EN standards guarantees the highest quality of workmanship and reliability for many years of operation.
LED Keypad for Spectra Magellan Alarm System 10-Zone Vertical White
Model: PARADOX K10V-N3Q
EAN: 6931240062289 SKU: 931062280
- Compatibility with PARADOX control panels: SPECTRA SP, MAGELLAN M
- Clear backlit keypad buttons for easy operation in the dark
- LED indicators for partition status and 10 alarm zones
- Audible signaling of selected events in the alarm system
- Quick access buttons for key system functions
- Full support for the innovative StayD function for enhanced protection
- Ability to trigger PANIC, FIRE, MEDICAL alarms directly from the keypad
- Support for one or multiple system partitions
- Ability to connect 1 additional alarm zone directly to the keypad
- Independent chime zone settings for selected inputs
- Connection to a standard 4-wire communication bus
- Compliance with safety standards EN 50130-4, EN 61000-6-3, EN 60950-1
- Elegant, vertical white housing
- Product of the renowned Paradox brand, manufactured in Canada
Description
The Paradox K10V-N3Q is a professional LED keypad designed for daily operation of Spectra SP and Magellan series alarm systems. The device features a vertical orientation, allowing for aesthetic and discreet installation in space-constrained areas. Thanks to advanced microprocessor technology, the keypad ensures rapid response to user commands and exceptional operational stability within the entire security system.
The main advantage of this model is its highly readable interface based on 10 LEDs, which intuitively indicate the status of individual detection zones and partitions. The user has access to fully backlit buttons, which significantly facilitates system operation at night or in total darkness. Additionally, the keypad is equipped with audible signaling that confirms operations or notifies of system events, such as zone violations or power failures.The device supports the innovative StayD function, which revolutionizes facility protection by ensuring 24/7 security without the need to disarm the system every time you enter. The keypad also allows for the immediate triggering of special alarms: fire, medical, and panic directly from the panel, which significantly increases the safety of residents and property. The solid white housing blends perfectly with modern interiors, and full compliance with rigorous European EN standards guarantees the highest quality of workmanship and reliability for many years of operation.Specification
Compatibility
PARADOX: SPECTRA SP, MAGELLAN M
User interface
LED keypad with backlit buttons, optical signaling of 10 zone statuses
Alarm functions
Alarms: PANIC, FIRE, MEDICAL triggered directly from the keypad
Partition support
Support for one or multiple partitions; LED indicators for partition status
StayD function
Full support for the patented StayD function ensuring continuous protection
Audible signaling
Built-in piezoelectric transducer for event signaling and operation confirmation
Additional inputs
Ability to connect 1 alarm zone directly to the keypad terminals
Chime zones
Independent chime zone settings for individual inputs
Communication bus
Connection to a 4-wire Paradox communication bus
Compliance with standards
EN 50130-4, EN 61000-6-3, EN 60950-1
Color
White
Power supply
12 V DC (powered from the control panel bus)
Country of origin
Canada
Warranty
2 years
Software and logic
The K10V-N3Q keypad features built-in firmware optimized for compatibility with Paradox systems. The software interface allows the installer to easily configure keypad parameters directly from the buttons or via the control panel. The software manages the display logic for 10 zones, supports advanced power-saving algorithms, and ensures encrypted communication on the 4-wire bus, preventing unauthorized control of the system. The keypad's operating system continuously monitors the connection to the control panel and signals communication errors.
Contents
1x K10V-N3Q Keypad
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 33 x 96 x 136 mm (D x W x H)
Package dimensions: 40 x 140 x 100 mm (D x W x H)
Product weight: 166 g
Weight with packaging: 192 g
