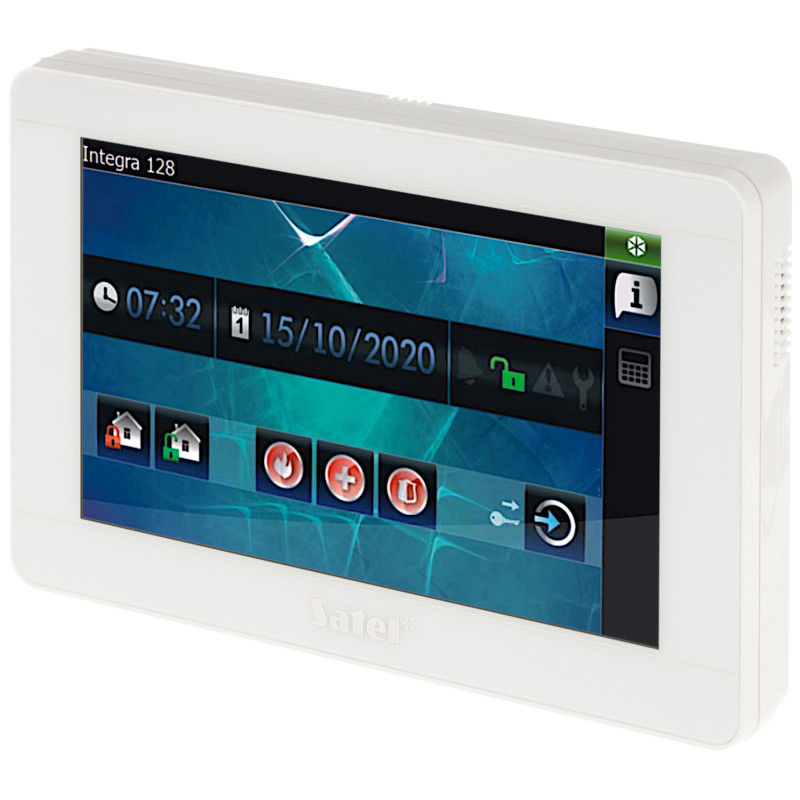

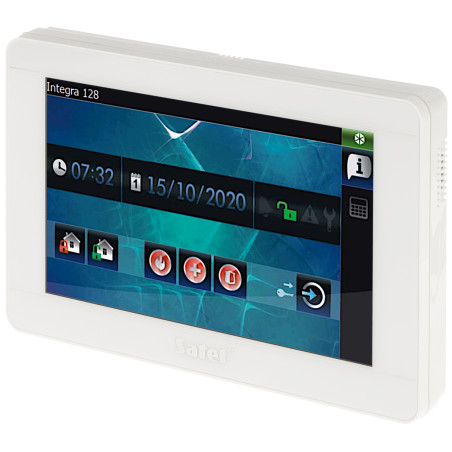

7 inch touchscreen sensory keypad for INTEGRA alarm systems white modern design SATEL INT-TSI-W
zł1,779.81
Tax included
The INT-TSI-W sensory keypad is a modern and highly advanced control device, dedicated to working with SATEL INTEGRA series alarm control panels. The device is distinguished by an elegant white finish that perfectly blends with modern home and office interiors. The heart of the manipulator is a large, 7-inch capacitive touchscreen, which ensures intuitive operation of even the most complex alarm system and home automation functions.
Thanks to the use of touch technology, the user interface can be fully personalized, allowing the appearance and layout of icons to be adjusted to the individual needs of household members or employees. One of the key advantages of the device is the support for MACRO functions. These allow for the execution of entire sequences of events with a single touch of the screen – for example, simultaneously arming the alarm, closing the blinds, and turning off the lights. The INT-TSI-W is not just an alarm controller, but a true command center for a smart home.
An additional advantage is the ability to view images from IP cameras directly on the keypad screen, which significantly increases the level of security, enabling quick verification of events without the need to reach for a phone or computer. A solid construction, built-in alarm inputs, and support for microSD cards for event logging make this a top-class product for demanding users. The device also offers advanced audible signaling and full tamper protection, which guarantees reliability in all conditions.
7 inch touchscreen sensory keypad for INTEGRA alarm systems white modern design
Model: SATEL INT-TSI-W
EAN: 6931240043202 SKU: 931043202
- Large, clear 7 inch LCD display with backlight
- Capacitive touchscreen for easy navigation
- Full compatibility with INTEGRA series control panels
- Support for MACRO functions to automate action sequences
- Ability to view images from IP cameras (MJPG, H.264)
- Built-in 2 alarm inputs
- microSD card support (2GB included) for data storage
- Audible signaling of system events
- Tamper protection (microswitch)
- Modern white design
Description
The INT-TSI-W sensory keypad is a modern and highly advanced control device, dedicated to working with SATEL INTEGRA series alarm control panels. The device is distinguished by an elegant white finish that perfectly blends with modern home and office interiors. The heart of the manipulator is a large, 7-inch capacitive touchscreen, which ensures intuitive operation of even the most complex alarm system and home automation functions.
Thanks to the use of touch technology, the user interface can be fully personalized, allowing the appearance and layout of icons to be adjusted to the individual needs of household members or employees. One of the key advantages of the device is the support for MACRO functions. These allow for the execution of entire sequences of events with a single touch of the screen – for example, simultaneously arming the alarm, closing the blinds, and turning off the lights. The INT-TSI-W is not just an alarm controller, but a true command center for a smart home.
An additional advantage is the ability to view images from IP cameras directly on the keypad screen, which significantly increases the level of security, enabling quick verification of events without the need to reach for a phone or computer. A solid construction, built-in alarm inputs, and support for microSD cards for event logging make this a top-class product for demanding users. The device also offers advanced audible signaling and full tamper protection, which guarantees reliability in all conditions.
Specification
Compatibility
INTEGRA series alarm control panels
Screen
7 inch, capacitive touchscreen, color LCD display
Interface
Fully graphical, personalized user interface with the ability to customize icons and backgrounds
MACRO functions
Enable the execution of complex action sequences (e.g., controlling lighting, blinds, alarm) with a single button press
Security
PANIC, FIRE, MEDICAL alarms triggered directly from the keypad; tamper protection detecting enclosure opening
Multimedia
IP camera image preview: MJPG @ HTTP and MPEG-4, H.264 @ RTSP (from version v1.04)
Inputs
2 programmable wired inputs
Memory
microSD card slot; support for cards for event logging and configuration; 2 GB card included
Signaling
Audible signaling of selected events; information about loss of communication with the control panel
Software
The INT-TSI-W keypad software has been designed for maximum flexibility and user comfort. The device's operating system allows for the creation of a fully graphical interface, where the user can define their own widgets, buttons, and backgrounds. Thanks to the dedicated TSI Builder configuration tool, the installer can prepare a unique graphical layout for each system user, assigning specific functions to clear icons. The software supports advanced home automation control logic, integrating the alarm system with lighting, heating, or irrigation systems. The interface is responsive and smooth, ensuring an immediate reaction to touch. Additionally, the software allows for integration with video monitoring systems, supporting video streams from IP cameras in popular formats such as H.264 or MJPEG. The user can switch between views from different cameras in real-time. The system also supports audible and visual notifications about zone status, failures, or alarms, presenting them in a way that is clear and understandable for a layperson.
Power supply
12 V DC (direct current); maximum current consumption 620 mA
Operating conditions
Operating temperature from -10 °C to 55 °C
Construction
White plastic enclosure; surface mounting
Warranty
2 years (24 months)
Contents
1x INT-TSI-W Keypad
1x 2GB microSD card
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 22 x 196 x 128 mm (D x W x H)
Package dimensions: 42 x 225 x 150 mm (D x W x H)
Product weight: 410 g
Weight with packaging: 590 g
