- New
One of the biggest advantages of this model is the support for advanced MACRO functions. Thanks to them, the user can trigger complex sequences of actions with a single touch, such as simultaneously arming the alarm, closing roller shutters, and turning off the lights. This solution not only increases the level of security but also significantly improves the comfort of daily life by integrating the alarm system with home automation. The device works with the most popular Satel control panels, including the INTEGRA, VERSA, and the latest PERFECTA 64 M series.
Another advantage is the high screen resolution (1024 x 600 px), which ensures a crystal-clear image and readability of all messages. The graphical interface is fully configurable, allowing you to adjust the menu appearance to individual user preferences. The ability to display maps and visualizations of the protected object makes security management transparent and simple even for the elderly or children. Solid construction and built-in tamper protection guarantee the reliability and durability of the device for many years of operation.
EAN: 6931240045923 SKU: 931045929

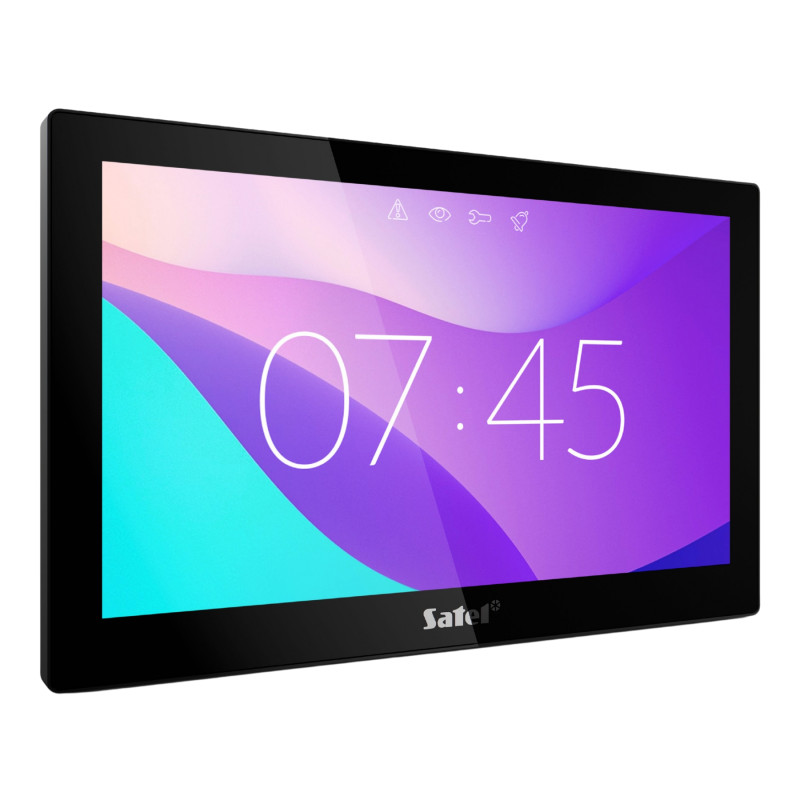

The INT-TSH210-B sensory keypad is the quintessence of modernity and functionality in security system management. The device is characterized by an extremely attractive, minimalist design that will perfectly fit into any modern interior, from private homes to prestigious offices. Equipped with an impressive 10-inch capacitive screen, this keypad redefines the way you interact with the alarm system, making it as intuitive as using a modern smartphone.
One of the biggest advantages of this model is the support for advanced MACRO functions. Thanks to them, the user can trigger complex sequences of actions with a single touch, such as simultaneously arming the alarm, closing roller shutters, and turning off the lights. This solution not only increases the level of security but also significantly improves the comfort of daily life by integrating the alarm system with home automation. The device works with the most popular Satel control panels, including the INTEGRA, VERSA, and the latest PERFECTA 64 M series.
Another advantage is the high screen resolution (1024 x 600 px), which ensures a crystal-clear image and readability of all messages. The graphical interface is fully configurable, allowing you to adjust the menu appearance to individual user preferences. The ability to display maps and visualizations of the protected object makes security management transparent and simple even for the elderly or children. Solid construction and built-in tamper protection guarantee the reliability and durability of the device for many years of operation.
Compatibility
INTEGRA, INTEGRA Plus, VERSA, PERFECTA 64 M control panels
Display
10 inches, capacitive touchscreen, 1024 x 600 px resolution, LCD backlight
User Interface
Graphical, gesture support, configurable screens (max. 24), operation status indicator
Personalization
Over 20 ready-made graphical themes, ability to create custom compositions, object visualizations
Hardware Inputs
2 inputs (INTEGRA/INTEGRA Plus only), support for NO, NC, vibration, roller shutter, EOL, 2EOL, 3EOL configurations
Automation Functions
MACRO commands (action sequences), KNX compatibility (via INTEGRA)
Security
Tamper detection (opening, detachment), PANIC, FIRE, AUXILIARY alarms, environmental class EN 50130-5: II
Signaling
Audible signaling of selected system events
External Memory
microSD memory card slot
Additional Functions
Screensaver (clock, calendar, photo frame), day/night mode
Power Supply
12 V DC, max. current consumption 415 mA
Operating Conditions
Temperature: -10 °C ... 55 °C
Physical Parameters
Color: Black, Enclosure: Plastic
Software
The device features an advanced operating system with a dedicated graphical interface. The software allows for full personalization of the user interface, offering over 20 predefined visual themes and tools for creating custom icon and button layouts. The system supports advanced MACRO logic, allowing for the programming of complex building automation scenarios. The interface reacts to gestures, ensuring smooth scrolling of lists and switching between screens. Additionally, the software offers multimedia functions, such as a digital photo frame retrieving data from a microSD card, and an intelligent power-saving mode with a calendar function.
Contents
1x INT-TSH210-B graphical keypad
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 18 x 251 x 157 mm (D x W x H)
Package dimensions: 30 x 305 x 165 mm (D x W x H)
Product weight: 580 g
Weight with packaging: 762 g
