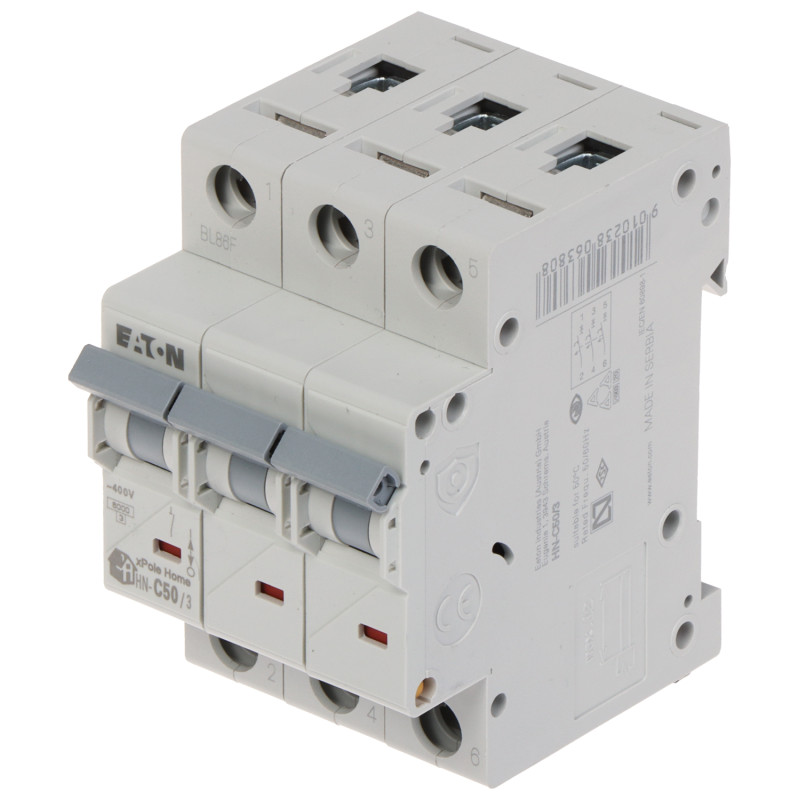

Three-phase miniature circuit breaker 50A C-curve 6kA installation fuse S303 DIN rail TS-35 modular EATON HN-C50/3
zł204.86
Tax included
The HN-C50/3 miniature circuit breaker is a high-class modular device from the renowned manufacturer EATON, designed to ensure the highest level of safety in modern electrical installations. The device features a rated current of 50A and a type C tripping characteristic, making it an ideal solution for protecting circuits where devices with increased inrush current are present, such as electric motors, transformers, or advanced lighting systems. Thanks to its robust construction and the use of durable materials, the circuit breaker guarantees reliable operation for many years of service.
The main advantage of the HN-C50/3 model is its three-phase design, allowing for the simultaneous protection of three poles of the installation. A rated short-circuit breaking capacity of 6000A ensures effective protection against the effects of sudden network failures. The product is equipped with a clear contact position indicator, which significantly facilitates diagnostics and maintenance of the installation. Additionally, the ability to seal the circuit breaker lever provides significant protection against unauthorized access.
Installation of the device is extremely simple and fast thanks to the standard mounting on a DIN TS-35 rail. Screw terminals allow for a secure and durable connection of wires with a cross-section from 1 mm² to 25 mm². By choosing EATON brand equipment, you are investing in proven technical solutions that meet rigorous safety standards and are widely valued by professional electrical installers around the world. It is an indispensable element of every distribution board, ensuring power continuity and protecting property against fire caused by overloads.
Three-phase miniature circuit breaker 50A C-curve 6kA installation fuse S303 DIN rail TS-35 modular
Model: EATON HN-C50/3
EAN: 6931240084427 SKU: 931084429
- Three-phase miniature circuit breaker with a rated current of 50A
- Type C tripping characteristic ideal for devices with high inrush current
- Rated short-circuit breaking capacity 6000A (6kA)
- Built-in contact position indicator for easy operation status monitoring
- Lockable lever for increased safety
- Mounting on standard DIN rail TS-35
- Wide range of connection wire cross-sections from 1 to 25 mm²
- High quality guaranteed by the EATON brand
Description
The HN-C50/3 miniature circuit breaker is a high-class modular device from the renowned manufacturer EATON, designed to ensure the highest level of safety in modern electrical installations. The device features a rated current of 50A and a type C tripping characteristic, making it an ideal solution for protecting circuits where devices with increased inrush current are present, such as electric motors, transformers, or advanced lighting systems. Thanks to its robust construction and the use of durable materials, the circuit breaker guarantees reliable operation for many years of service.
The main advantage of the HN-C50/3 model is its three-phase design, allowing for the simultaneous protection of three poles of the installation. A rated short-circuit breaking capacity of 6000A ensures effective protection against the effects of sudden network failures. The product is equipped with a clear contact position indicator, which significantly facilitates diagnostics and maintenance of the installation. Additionally, the ability to seal the circuit breaker lever provides significant protection against unauthorized access.
Installation of the device is extremely simple and fast thanks to the standard mounting on a DIN TS-35 rail. Screw terminals allow for a secure and durable connection of wires with a cross-section from 1 mm² to 25 mm². By choosing EATON brand equipment, you are investing in proven technical solutions that meet rigorous safety standards and are widely valued by professional electrical installers around the world. It is an indispensable element of every distribution board, ensuring power continuity and protecting property against fire caused by overloads.
Specification
Device type
Miniature circuit breaker (installation fuse) designed for operation in three-phase systems, providing protection against the effects of short circuits and overloads.
Rated current
50 A - parameter defining the maximum current that can flow through the circuit breaker continuously without causing thermal tripping.
Number of poles
3 - the device protects three phases simultaneously, which is necessary in power and industrial installations.
Tripping characteristic
Type C - designed for the protection of receivers with inrush currents from 5 to 10 times the rated current, such as motors or transformers.
Rated short-circuit breaking capacity
6000 A (6 kA) - maximum short-circuit current that the circuit breaker can safely interrupt without damaging its own structure.
Rated voltage
Supports 230 V AC / 50 Hz and 400 V AC / 50 Hz voltages (sinusoidal alternating current), which allows for versatile use in power grids.
Terminal type
Robust screw terminals ensuring stable electrical contact and resistance to loosening due to vibrations.
Wire cross-section
Wide range of supported cross-sections from 1 mm² to 25 mm², which allows for the use of various types of installation wiring.
Contact position indicator
Integrated visual indicator informing about the current operating status of the device (on/off), visible on the front panel.
Sealability
The housing design allows for the installation of seals to protect against unauthorized interference with the circuit breaker status.
Housing and mounting
Made of high-quality plastic resistant to high temperatures and aging, adapted for mounting on a DIN TS-35 rail.
Width in modules
3 modules (standard 17.5 mm per module), which facilitates space planning in the electrical distribution board.
Compliance with standards
The product has a full CE declaration of conformity and meets European safety standards for low-voltage modular equipment.
Application and purpose
Protection of electric motors, transformers, lighting systems, and other devices with high inrush current in residential and industrial construction.
Contents
1x Miniature circuit breaker HN-C50/3
Dimensions, Weight
Product dimensions: 73 x 53 x 85 mm (D x W x H)
Packaging dimensions: 75 x 55 x 85 mm (D x W x H)
Product weight: 370 g
Weight with packaging: 370 g
