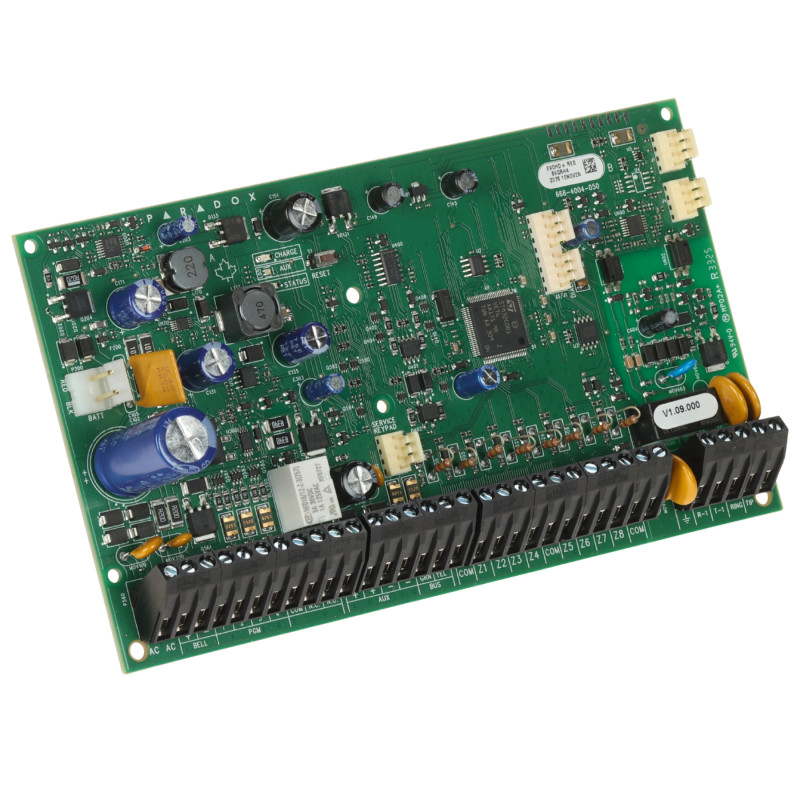

Alarm Control Panel Board 192 Zones 8 Partitions Grade 3 Professional Bus Alarm System PARADOX EVOHD+-E9R
zł445.83
Tax included
EVOHD+-E9R is an advanced alarm control panel motherboard from the prestigious Digiplex EVO series by Paradox. This device serves as the foundation for the most demanding security systems, combining alarm functions with advanced access control and building automation. With support for up to 192 zones and 8 independent partitions, this control panel is ideal for large commercial facilities, banks, residences, and public buildings where reliability and precision are a priority.
The main advantage of the system is its immense scalability. The ability to connect up to 254 expansion modules via a 4-wire bus allows for almost unlimited installation growth as user needs increase. The control panel supports integration with access control systems for 32 passages, allowing for the creation of a cohesive security management environment. The product features the highest Grade 3 security level, meaning it is resistant to sabotage and manipulation attempts by individuals with specialized knowledge.
A built-in telephone dialer and support for modern IP, GPRS, and GSM communication modules ensure instant event notification and the ability to remotely manage the system from anywhere in the world. The system also offers advanced home automation functions, allowing for the control of lighting, blinds, or heating directly from the alarm keypad or mobile application.
Product advantages:
- Support for a huge number of zones (up to 192) and partitions (8) allows for the protection of even very extensive facilities.
- Integrated access control for 32 doors eliminates the need for separate systems.
- High Grade 3 certification guarantees the highest level of protection and compliance with insurance standards.
- Flexible communication bus facilitates system expansion and maintenance.
- Advanced home automation functions increase user comfort.
- Stable operation in a wide temperature range ensures reliability in all conditions.
- The ability to remotely program and monitor significantly reduces maintenance costs.
- Renowned manufacturer Paradox guarantees long-term durability and professional technical support.
Alarm Control Panel Board 192 Zones 8 Partitions Grade 3 Professional Bus Alarm System
Model: PARADOX EVOHD+-E9R
EAN: 6931240037966 SKU: 931037960
- Support for up to 192 zones and 8 partitions
- Integrated access control for 32 doors
- Grade 3 security certificate
- Support for 254 bus modules
- Built-in telephone dialer
- Support for IP/GPRS/GSM communication modules
- 2048 event memory
- Support for up to 999 users
- ATZ function (zone doubling)
- Deep battery discharge protection
Description
EVOHD+-E9R is an advanced alarm control panel motherboard from the prestigious Digiplex EVO series by Paradox. This device serves as the foundation for the most demanding security systems, combining alarm functions with advanced access control and building automation. With support for up to 192 zones and 8 independent partitions, this control panel is ideal for large commercial facilities, banks, residences, and public buildings where reliability and precision are a priority.
The main advantage of the system is its immense scalability. The ability to connect up to 254 expansion modules via a 4-wire bus allows for almost unlimited installation growth as user needs increase. The control panel supports integration with access control systems for 32 passages, allowing for the creation of a cohesive security management environment. The product features the highest Grade 3 security level, meaning it is resistant to sabotage and manipulation attempts by individuals with specialized knowledge.
A built-in telephone dialer and support for modern IP, GPRS, and GSM communication modules ensure instant event notification and the ability to remotely manage the system from anywhere in the world. The system also offers advanced home automation functions, allowing for the control of lighting, blinds, or heating directly from the alarm keypad or mobile application.
Product advantages:
- Support for a huge number of zones (up to 192) and partitions (8) allows for the protection of even very extensive facilities.
- Integrated access control for 32 doors eliminates the need for separate systems.
- High Grade 3 certification guarantees the highest level of protection and compliance with insurance standards.
- Flexible communication bus facilitates system expansion and maintenance.
- Advanced home automation functions increase user comfort.
- Stable operation in a wide temperature range ensures reliability in all conditions.
- The ability to remotely program and monitor significantly reduces maintenance costs.
- Renowned manufacturer Paradox guarantees long-term durability and professional technical support.
Specification
System type
Wired bus system with wireless expansion capability
Product series
Digiplex EVO - top line of Paradox alarm control panels
Zone support
8 inputs on the motherboard, expansion up to 192 zones using modules; ATZ function allows for handling 16 zones directly on the board
Partitioning
8 independent partitions (groups), allowing for flexible management of different parts of the facility
Programmable outputs
5 PGM outputs on the motherboard, expandable to 16 outputs; low-current output load capacity is 100 mA
Access control
Built-in support for up to 32 passages (doors) integrated with the alarm system
User management
Support for up to 999 user and administrator codes with different privilege levels
Memory and logs
Non-volatile event memory storing up to 2048 latest diagnostic and alarm entries
Communication and dialer
Built-in telephone dialer, two communication ports for connecting IP (IP150), GSM/GPRS (PCS250) modules, or USB interface
Certification and security
Compliance with EN 50131 standard - Security Grade 3; full bus supervision and tamper protection
Power supply and performance
16V AC power supply; power supply current capacity on the board is 2.5A; power consumption 40 / 75 VA
Management software
BabyWare software is an advanced and free tool designed for comprehensive configuration, management, and ongoing monitoring of Paradox alarm systems. This application allows installers and administrators full access to all control panel parameters, both in local mode (via 307USB interface) and remote mode (using IP or GPRS communication modules). BabyWare stands out with its modern and clear graphical interface, which significantly simplifies the process of programming zones, programmable PGM outputs, and managing the user database and their permissions. Key software functionalities include: instant uploading and downloading of configuration data, secure firmware updates for all devices included in the system, as well as real-time system status viewing. Additionally, the software offers advanced tools for filtering and analyzing event memory, which is invaluable during installation diagnostics and service. Thanks to BabyWare, operating even the most extensive systems from the Digiplex EVO series becomes intuitive, efficient, and fully professional.
System and tamper functions
Bus module supervision, siren output, home automation functions, cooperation with wireless devices via RTX3 module
Environmental parameters
Operating temperature: -10 °C ... 55 °C; permissible ambient humidity: 5 % ... 90 %
Contents
1x EVOHD+-E9R alarm control panel motherboard
1x Set of parametric resistors
1x Quick start guide
Dimensions, Weight
Product dimensions: 25 x 202 x 95 mm (D x W x H)
Package dimensions: 55 x 205 x 115 mm (D x W x H)
Product weight: 220 g
Weight with packaging: 264 g
