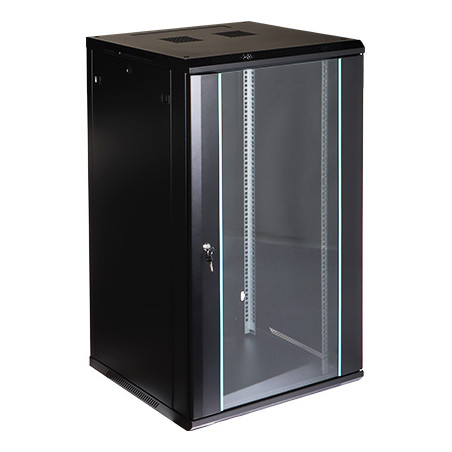

19 inch 22U Wall Mount Rack Cabinet 600mm depth glass door black server cabinet EPRADO EPRADO-R19-22U/600-BLUE
zł745.87
Tax included
The 19" EPRADO-R19-22U/600-BLUE Rack Cabinet is a professional solution dedicated to the aesthetic and secure mounting of 19-inch standard equipment. In an era of an increasing number of network devices, CCTV monitoring systems, and RTV/SAT installations in homes and offices, a rack cabinet becomes an essential element of technical infrastructure. It not only ensures order in cabling but, above all, protects expensive equipment against accidental mechanical damage and unauthorized access.
The main advantage of this model is its versatility. Thanks to its 22U height and 600mm depth, the cabinet can accommodate a wide range of devices, from digital recorders and network switches to UPS uninterruptible power supplies and patch panels. The cabinet's design has been thought out for maximum functionality – the user has numerous ventilation holes that support natural air circulation, and if necessary, there is the possibility of mounting dedicated fans (105x105mm) in the prepared locations.
The cabinet is characterized by solid construction made of high-quality powder-coated steel in black (RAL9004). The glass front door allows for ongoing monitoring of the equipment's operating status without the need to open the cabinet, while the removable and snap-on side panels significantly facilitate access to the equipment during maintenance or installation work. An additional advantage is the ability to mount the door as left or right, which allows the cabinet to be adapted to specific room conditions. A load capacity of 60 kg guarantees stability even when fully loaded with heavier components. By choosing an EPRADO cabinet, you are investing in durability, safety, and the professional appearance of your telecommunications installation.
19 inch 22U Wall Mount Rack Cabinet 600mm depth glass door black server cabinet
Model: EPRADO EPRADO-R19-22U/600-BLUE
EAN: 6931240047354 SKU: 931047352
- 19-inch mounting standard
- 22U usable height
- 600mm external depth
- Glass front door with lock
- Removable and snap-on side panels
- Static load capacity up to 60kg
- Black color RAL9004
- 3-year manufacturer warranty
Description
The 19" EPRADO-R19-22U/600-BLUE Rack Cabinet is a professional solution dedicated to the aesthetic and secure mounting of 19-inch standard equipment. In an era of an increasing number of network devices, CCTV monitoring systems, and RTV/SAT installations in homes and offices, a rack cabinet becomes an essential element of technical infrastructure. It not only ensures order in cabling but, above all, protects expensive equipment against accidental mechanical damage and unauthorized access.
The main advantage of this model is its versatility. Thanks to its 22U height and 600mm depth, the cabinet can accommodate a wide range of devices, from digital recorders and network switches to UPS uninterruptible power supplies and patch panels. The cabinet's design has been thought out for maximum functionality – the user has numerous ventilation holes that support natural air circulation, and if necessary, there is the possibility of mounting dedicated fans (105x105mm) in the prepared locations.
The cabinet is characterized by solid construction made of high-quality powder-coated steel in black (RAL9004). The glass front door allows for ongoing monitoring of the equipment's operating status without the need to open the cabinet, while the removable and snap-on side panels significantly facilitate access to the equipment during maintenance or installation work. An additional advantage is the ability to mount the door as left or right, which allows the cabinet to be adapted to specific room conditions. A load capacity of 60 kg guarantees stability even when fully loaded with heavier components. By choosing an EPRADO cabinet, you are investing in durability, safety, and the professional appearance of your telecommunications installation.
Specification
Mounting standard
Compliance with the 19-inch (482.6 mm) standard, which ensures full compatibility with most network, server, and audio-video devices available on the market.
Usable height
22U (rack units), which allows for the installation of extensive systems while maintaining optimal vertical dimensions of the cabinet.
Internal depth
545 mm - workspace allowing for easy installation of devices and convenient arrangement of cable bundles behind the equipment.
External width
600 mm - standard dimension facilitating integration with other RACK system elements and providing space for vertical cable routing.
External height
1080 mm - total dimension of the cabinet from the base to the top edge of the enclosure.
External depth
600 mm - total depth dimension of the cabinet including the front door and the rear panel.
Static load capacity
The maximum load capacity is 60 kg, which guarantees safety for mounted recorders, switches, and UPS power supplies.
Finish and color
Cold-rolled steel, powder-coated in black RAL9004; surface resistant to scratches, impacts, and corrosion.
Front door
Equipped with tempered glass, lockable with a key; universal design allows for mounting the door as left or right.
Side panels
Metal, solid, mounted on convenient snap-latches; possibility of complete removal to obtain full service access to the interior.
Cooling system
Numerous ventilation holes in the enclosure structure; two dedicated spaces prepared for 105 x 105 mm fans in the upper part.
Cable management
Two cable glands (one in the top cover, the other in the base) facilitating aesthetic and safe cable entry.
Mounting rails
Includes 4 vertical rack rails with precise U-unit numbering, which facilitates planning the placement of equipment.
Mechanical construction
Stable frame with the possibility of unscrewing the rear panel; wall-mounted design with solid mounting points to the wall.
Warranty
Product covered by a 3-year (36 months) manufacturer's warranty, which confirms the high quality of workmanship and durability of materials.
Software
The product is a passive mechanical structure and does not have built-in firmware or dedicated mobile applications. Management of devices placed inside the cabinet is carried out independently through their own network or local interfaces. The cabinet provides a physical mounting and protection platform for active IT equipment, enabling optimal component placement and facilitating structured cabling management without interfering with the logical layer of the network. The design supports passive cooling, which is crucial for the stability of operating systems installed on active devices.
Contents
1x Wall-mount Rack cabinet
2x Key for the front door
4x Vertical mounting rails
Set of mounting elements and screws
Dimensions, Weight
Product dimensions: 600 x 600 x 1080 mm (D x W x H)
Package dimensions: 190 x 650 x 1130 mm (D x W x H)
Product weight: 37500 g
Weight with packaging: 39640 g
