- New

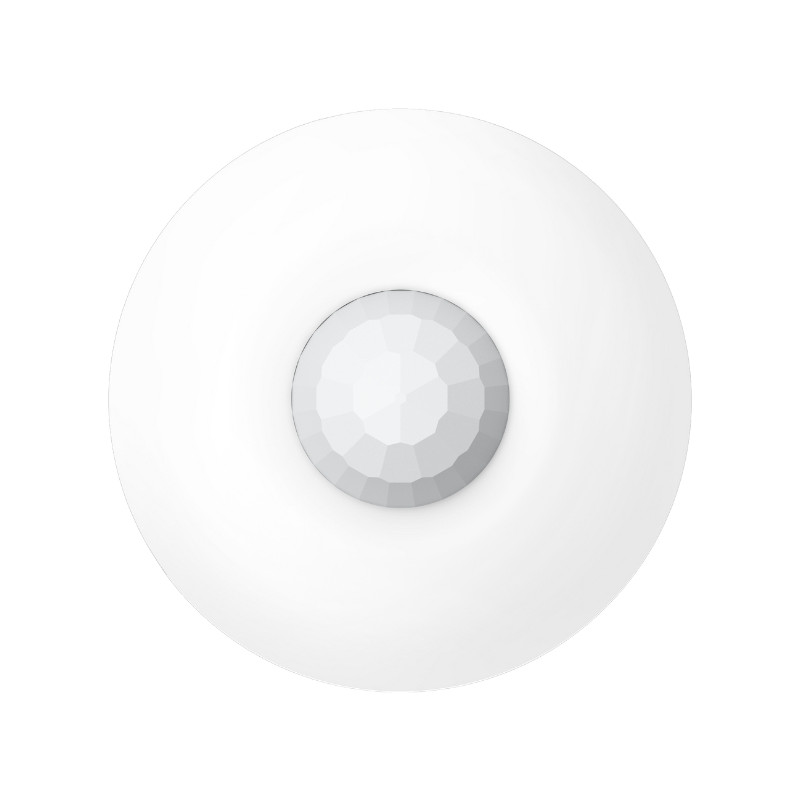

Wired 360 Degree PIR Ceiling Detector 12m Range Digital Tamper Protection LED Hikvision DS-PDCL12-EG2
zł167.28
Tax included
The DS-PDCL12-EG2 wired PIR ceiling detector is a professional solution in the field of security systems, designed to ensure the maximum level of security inside buildings. Thanks to the use of advanced passive infrared technology and a unique lens design, the device offers full coverage of the area within a 360-degree radius, which eliminates dead zones and allows for effective protection of the entire room using only one detection point. The heart of the detector is a modern, quad pyroelement (Quad PIR), which, combined with digital signal processing, guarantees extraordinary precision in detecting human movement while minimizing the risk of false alarms caused by environmental factors.
The main advantage of the DS-PDCL12-EG2 model is its versatility and reliability. The device is equipped with a digital temperature compensation function that automatically adjusts the sensor sensitivity to the prevailing thermal conditions. This is crucial in situations where the ambient temperature approaches human body temperature, which in the case of standard detectors could result in a lack of response. Additionally, the detector has built-in tamper protection, which immediately informs the alarm system of an attempt to unauthorizedly open the housing or tear the device from the ceiling. The aesthetic, low-profile white housing makes the detector discreetly blend into the ceiling without disturbing the design of modern office or residential interiors. By choosing this model, you are investing in proven technology from a global leader in security systems, which translates into years of trouble-free operation and peace of mind for users.
Wired 360 Degree PIR Ceiling Detector 12m Range Digital Tamper Protection LED
Model: Hikvision DS-PDCL12-EG2
EAN: 6931240020678 SKU: 931020679
- Passive Infrared (PIR) with quad pyroelement
- Full 360-degree detection range up to 12 meters
- Digital temperature compensation for stable operation
- Advanced Digital Signal Processing (DSP)
- Dual tamper protection (opening and detachment)
- Alarm signaling via blue LED
- Wide supply voltage range 9-16V DC
- Discreet ceiling mounting and modern design
Description
The DS-PDCL12-EG2 wired PIR ceiling detector is a professional solution in the field of security systems, designed to ensure the maximum level of security inside buildings. Thanks to the use of advanced passive infrared technology and a unique lens design, the device offers full coverage of the area within a 360-degree radius, which eliminates dead zones and allows for effective protection of the entire room using only one detection point. The heart of the detector is a modern, quad pyroelement (Quad PIR), which, combined with digital signal processing, guarantees extraordinary precision in detecting human movement while minimizing the risk of false alarms caused by environmental factors.
The main advantage of the DS-PDCL12-EG2 model is its versatility and reliability. The device is equipped with a digital temperature compensation function that automatically adjusts the sensor sensitivity to the prevailing thermal conditions. This is crucial in situations where the ambient temperature approaches human body temperature, which in the case of standard detectors could result in a lack of response. Additionally, the detector has built-in tamper protection, which immediately informs the alarm system of an attempt to unauthorizedly open the housing or tear the device from the ceiling. The aesthetic, low-profile white housing makes the detector discreetly blend into the ceiling without disturbing the design of modern office or residential interiors. By choosing this model, you are investing in proven technology from a global leader in security systems, which translates into years of trouble-free operation and peace of mind for users.
Specification
Purpose
Internal intrusion and robbery signaling systems (SSWiN)
Detection technology
Passive Infrared (PIR) based on a quad sensor (Quad PIR)
Range and viewing angle
Maximum detection range is 12 meters at a full 360° angle
Installation height
Recommended installation height from 2.4 m to 4.0 m
Signal processing
Advanced Digital Signal Processing (DSP) with pulse analysis algorithm
Temperature compensation
Digital, automatic sensitivity adjustment relative to ambient temperature
Sensitivity adjustment
Two setting levels: Automatic and Low Level
Optical signaling
Blue LED informing about intruder detection (can be disabled)
Tamper protection
Full protection against opening the housing and detaching the device from the surface (Tamper)
Electrical parameters
Power supply 9V - 16V DC, power consumption up to 13 mA
Environmental conditions
Operating temperature from -10°C to +55°C, humidity up to 95% without condensation
Mechanical construction
High-quality ABS plastic housing, white color, ceiling mounting
Software and logic
The detector's built-in firmware is based on intelligent digital signal processing (DSP) algorithms. This system continuously monitors signals from the quad pyroelement, applying advanced filtering of electrical noise and interference from white light sources. The device's logic allows for precise extraction of characteristic human movement patterns, which effectively distinguishes it from air mass movements or small animals. The software also manages the digital temperature compensation function, dynamically changing alarm trigger thresholds depending on readings from the built-in thermistor. As a result, the detector maintains constant sensitivity regardless of the season. The entire decision-making process takes place in a fraction of a second, which guarantees an immediate response of the alarm system at the moment the protected zone is breached.
Certification and codes
Compliance with CE standards, SAP code: 314300240, 2-year warranty
Contents
1x PIR Detector DS-PDCL12-EG2
1x Set of mounting plugs and screws
1x User manual
Dimensions, Weight
Product dimensions: 33 x 101 x 101 mm (D x W x H)
Package dimensions: 45 x 105 x 105 mm (D x W x H)
Product weight: 79 g
Weight with packaging: 124 g
