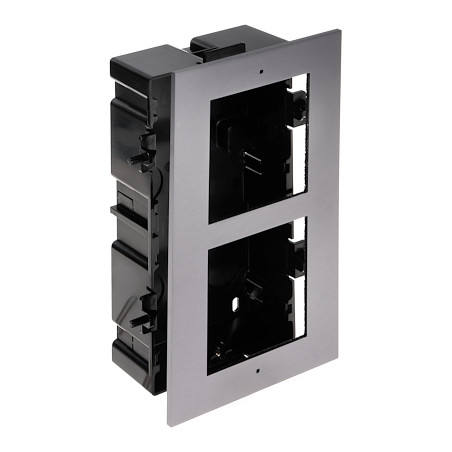

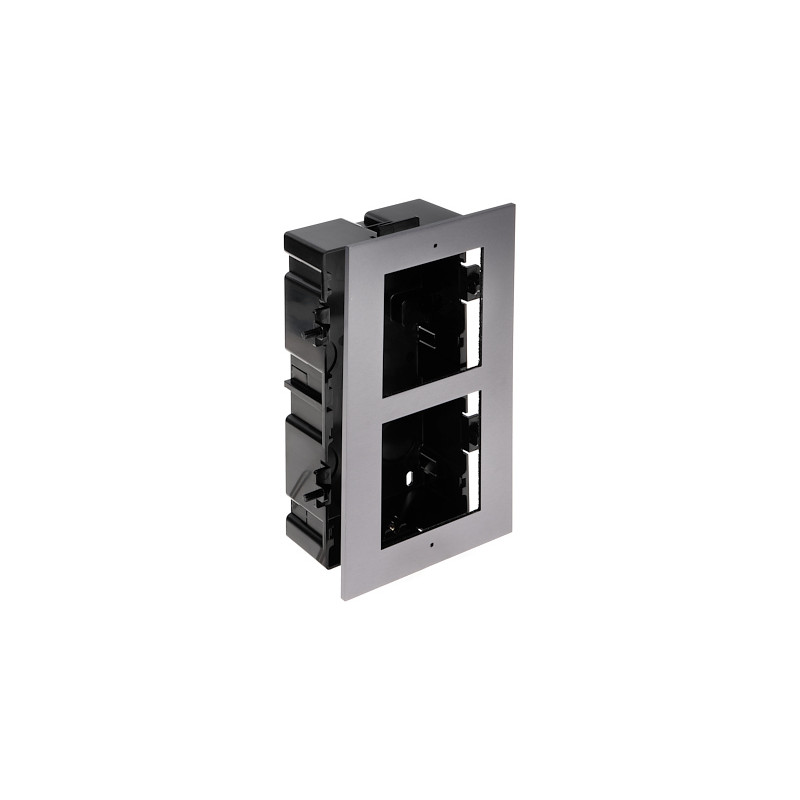

Flush mount housing for modular video intercom 2-module mounting frame installation box accessories

Model: Hikvision DS-KD-ACF2

EAN: 6931240019207 SKU: 931019203

• Dedicated to Hikvision DS-KD-xx series modular video intercoms
• Allows mounting of 2 functional modules simultaneously
• Front panel made of high-quality aluminum
• Mounting box made of durable plastic
• Aesthetic flush mounting (level with the wall)
• Modern color scheme: Black + Graphite
• High resistance to external factors
• Full compatibility with Hikvision mounting accessories

Description

The professional DS-KD-ACF2 flush mount housing is a dedicated mounting solution for modern Hikvision video intercom systems. It has been designed specifically for the DS-KD-xx modular series, enabling aesthetic and durable installation of two selected functional modules, such as the main camera module, keypad, card reader, or name tag. The construction consists of two key elements: a durable mounting box made of high-quality plastic, which is embedded inside the wall, and an elegant front panel made of aviation-grade aluminum in a graphite color. The product's advantages are numerous and include, above all, high resistance to weather conditions and mechanical damage. Thanks to the precise fit of the components, installation is quick and intuitive, and the final effect is extremely professional. The housing ensures the device is perfectly flush with the facade surface, which significantly enhances the aesthetic appeal of the building entrance. The product is covered by a 3-year manufacturer's warranty, which confirms its reliability. It is an ideal choice for installers and users looking for solid accessories for access control and video communication systems that combine functionality with modern design. The use of aluminum in the external panel guarantees that the frame will not corrode and will retain its original appearance for many years of intensive use in various climatic conditions.

Specification

Purpose

Hikvision DS-KD-xx series modular video intercom systems

Number of modules mounted

2 units (e.g., main module + expansion module)

Front panel material

High-quality aluminum (corrosion-resistant)

Mounting box material

Durable plastic (ABS/PC)

Mounting type

Flush mounting

Color scheme

Black (box) + Graphite (external frame)

External frame dimensions

236 x 124 x 4 mm (protruding part)

Flush mount box dimensions

236 x 124 x 60 mm

Internal dimensions (space for modules)

200 x 95 x 42 mm

Device weight

0.3 kg (300 grams)

Manufacturer SAP code

305700479

Warranty

36 months (3 years)

Operating temperature

-40 °C ... 60 °C

Software and system

The product is a passive element of the Hikvision IP system. It works with iVMS-4200 software and the Hik-Connect mobile application. The Hik-Connect application allows for remote answering of video intercom calls, real-time video preview, opening the lock, and viewing event history. The iVMS-4200 software is a comprehensive platform for managing security systems, allowing for full configuration of the modules installed in the housing, user permission management, and integration with CCTV video monitoring systems.

Contents

1x Front panel (aluminum frame)

1x Flush mount box (plastic)

1x Set of mounting screws

1x Gasket and installation accessories

Dimensions, Weight

Product dimensions: 60 x 124 x 236 mm (Depth x Width x Height)

Package dimensions: 120 x 175 x 265 mm (Depth x Width x Height)

Product weight: 300 g

Weight with packaging: 512 g
