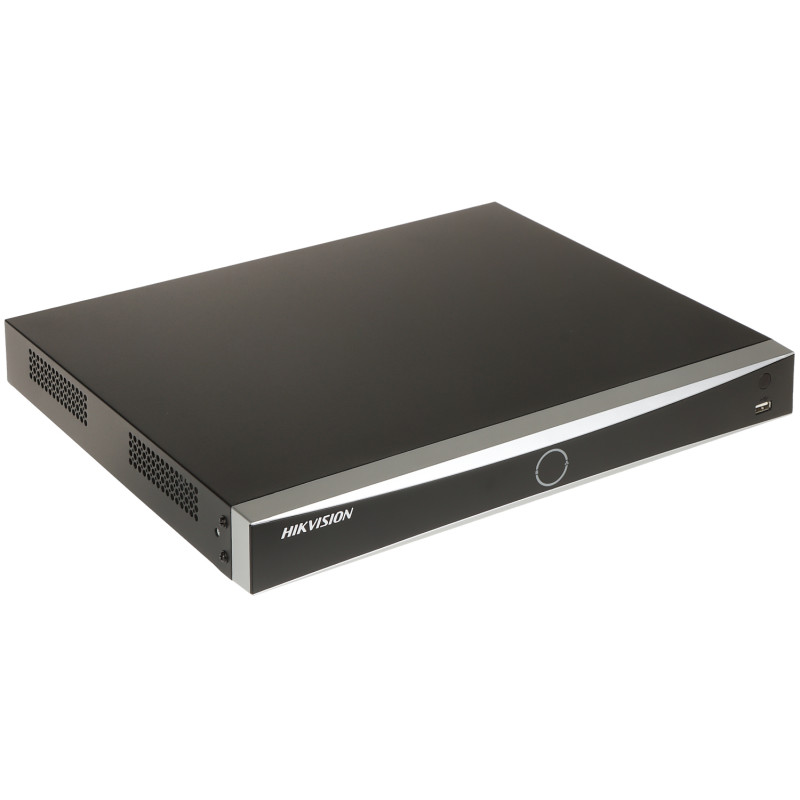

16-Channel 12MP AcuSense 4K IP NVR HDMI VGA H.265+ ONVIF P2P Face Detection Perimeter Protection

Model: Hikvision DS-7616NXI-K2(D)/PL

EAN: 6931240043936 SKU: 931043935

• Supports up to 16 IP channels with resolution up to 12 MP
• AcuSense technology - intelligent false alarm filtering
• Face recognition and comparison (database up to 20,000 images)
• Advanced perimeter protection: intrusion and line crossing
• Support for H.265+ / H.265 / H.264+ / H.264 compression
• 4K HDMI and VGA video output
• Supports 2 SATA hard drives up to 16TB each
• Remote access via P2P cloud and Hik-Connect app
• Intelligent Motion Detection 2.0 with human and vehicle classification
• ONVIF standard compliance

Description

The professional DS-7616NXI-K2(D)/PL network video recorder is an advanced device designed for IP monitoring systems, redefining security standards with AcuSense technology. The device supports up to 16 IP channels with an impressive resolution of up to 12 MP, allowing for high-detail image recording. The main advantage of this model is the integrated artificial intelligence, which enables precise false alarm filtering by recognizing human and vehicle silhouettes. As a result, the system does not react to moving leaves, animals, or weather conditions, significantly reducing the number of unnecessary notifications.

The recorder supports the latest video compression standards, including H.265+, which allows for hard drive space savings of up to 75% while maintaining excellent image quality. The device features two SATA drive slots, each with a capacity of up to 16TB, providing vast space for archived recordings. The 4K HDMI output allows for image display on modern monitors and TVs in full resolution. Additionally, features such as face recognition (support for 16 databases and 20,000 images) and advanced perimeter protection make it an ideal solution for demanding business and private users.

Remote access to the system is extremely simple thanks to the free Hik-Connect application available for Android and iOS. It enables live viewing, playback of recordings, and receiving instant notifications about alarm events from anywhere in the world. A solid construction, wide operating temperature range, and an intuitive menu make this recorder the reliable heart of any modern CCTV system.

Specification

Standard and Channels

Standard: IP; Number of supported channels: 16

Resolution and Bitrate

Supported resolutions: up to 12 MP; Bitrate: 160 Mbps (incoming)

Artificial Intelligence (NVR)

Face recognition: Face comparison with images from the database, Support for up to 16 face databases, total of 20,000 face images, Intelligent person search based on face image; Perimeter protection: intrusion, line crossing with separate rules for vehicles and pedestrians; Intelligent motion detection: False alarm filtering based on person and vehicle recognition

Artificial Intelligence (Camera)

Camera function support: Face recognition, Advanced perimeter protection, Intelligent object tracking, Intelligent motion detection, ANPR, VCA (metadata support)

Compression and Archiving

Image compression method: H.265+ / H.265 / H.264+ / H.264; Supported hard drives: 2 x 16 TB SATA; External archiving: USB drive (pendrive, external drive)

Video/Audio Inputs and Outputs

Video outputs: 1 x HDMI 4K, 1 x VGA; Audio inputs: 1 x CINCH (RCA); Audio outputs: 1 x CINCH (RCA)

Interfaces and Connectors

Network interface: 1 x RJ-45 10/100/1000 Base-TX; USB: 2 x USB 2.0; Alarm inputs/outputs: 4 / 1

Network and Protocols

ONVIF: Yes; Default IP address: 192.168.1.64; Web access ports: 80, 8000; PC application access ports: 8000

Software and Network Functions

Mobile phone access: Port 8000 or cloud access (P2P). The Hik-Connect software is an advanced mobile platform enabling full management of the monitoring system. The application allows for real-time image viewing, remote playback of recordings from the timeline, and instant notifications about motion detection or zone violations. Thanks to P2P cloud technology, the user does not need a static IP address. The software also enables management of face databases, AI parameter configuration, and two-way audio communication. The application is completely free, offers an intuitive interface, and ensures a high level of data security through transmission encryption.

Power Supply and Consumption

Power supply: 12 V DC / 3.33 A (power adapter included); Power consumption: ≤ 15 W (without HDD)

Operating Conditions

Operating temperature: -10 °C ... 55 °C

Physical Parameters

Weight: 1.66 kg; Dimensions: 385 x 322 x 52 mm

Manufacturer Data

Manufacturer / Brand: Hikvision; SAP Code: 303622735; Warranty: 3 years

Languages

Supported languages: Polish

Contents

1x IP NVR

1x 12V 3.33A Power adapter

1x Computer mouse

1x Set of screws for drive mounting

1x SATA cables

Dimensions, Weight

Product dimensions: 322 x 385 x 52 mm (D x W x H)

Package dimensions: 395 x 440 x 135 mm (D x W x H)

Product weight: 1660 g

Weight with packaging: 2790 g
