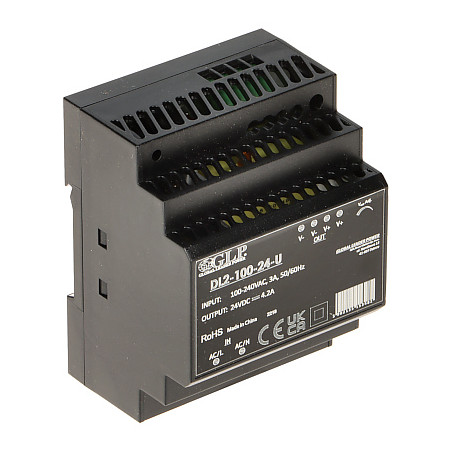

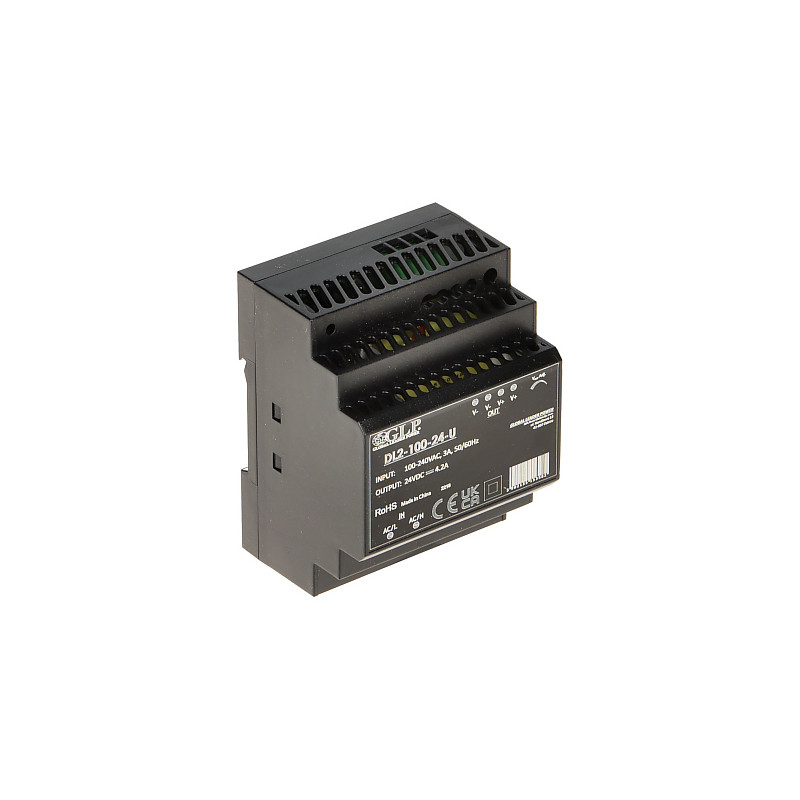

Industrial DIN Rail Switching Power Supply 24V DC 4.2A 100W with Voltage Regulation and 90% Efficiency Delta DL2-100-24-U
zł192.70
Tax included
The DL2-100-24-U switching power supply is an advanced energy solution designed for mounting on a standard DIN rail (TS35/7.5 or 15). The device is characterized by exceptional operational stability and high efficiency reaching up to 90%, which translates into lower energy losses and reduced heat generation. This is crucial in control cabinets where space and ventilation are often limited.
One of the most important advantages of this model is its wide operating temperature range, from -40°C to 70°C, which allows for trouble-free operation in extreme industrial conditions. The power supply offers a 24V DC output voltage with the possibility of precise regulation in the range from 21.6V to 29V, which enables perfect matching to the requirements of a specific receiver and compensation for voltage drops on cables. Thanks to a current capacity of 4.2A and a power of 100.8W, this product is ideal for powering automation systems, LED lighting, or CCTV monitoring systems.
Operational safety is guaranteed by a series of built-in protections: short-circuit, overload, and overvoltage. The solid DIN-type housing ensures easy installation and mechanical durability. The product is covered by a 3-year manufacturer's warranty, which confirms its high quality of workmanship and reliability. The power supply accepts a wide range of input voltage (85-264V AC or 120-370V DC), making it a universal tool for global applications. By choosing this model, you are investing in modern switching technology that will meet even the most demanding engineering and industrial projects.
Industrial DIN Rail Switching Power Supply 24V DC 4.2A 100W with Voltage Regulation and 90% Efficiency
Model: Delta DL2-100-24-U
EAN: 6931240063378 SKU: 931063373
- Mounting on DIN rail TS35/7.5 or 15
- High energy efficiency up to 90%
- Wide operating temperature range from -40°C to 70°C
- Precise output voltage regulation 21.6V - 29V
- Comprehensive protections: short-circuit, overload, overvoltage
- Cooling by free air convection
- Long warranty period - 3 years
Description
The DL2-100-24-U switching power supply is an advanced energy solution designed for mounting on a standard DIN rail (TS35/7.5 or 15). The device is characterized by exceptional operational stability and high efficiency reaching up to 90%, which translates into lower energy losses and reduced heat generation. This is crucial in control cabinets where space and ventilation are often limited.
One of the most important advantages of this model is its wide operating temperature range, from -40°C to 70°C, which allows for trouble-free operation in extreme industrial conditions. The power supply offers a 24V DC output voltage with the possibility of precise regulation in the range from 21.6V to 29V, which enables perfect matching to the requirements of a specific receiver and compensation for voltage drops on cables. Thanks to a current capacity of 4.2A and a power of 100.8W, this product is ideal for powering automation systems, LED lighting, or CCTV monitoring systems.
Operational safety is guaranteed by a series of built-in protections: short-circuit, overload, and overvoltage. The solid DIN-type housing ensures easy installation and mechanical durability. The product is covered by a 3-year manufacturer's warranty, which confirms its high quality of workmanship and reliability. The power supply accepts a wide range of input voltage (85-264V AC or 120-370V DC), making it a universal tool for global applications. By choosing this model, you are investing in modern switching technology that will meet even the most demanding engineering and industrial projects.
Specification
Power supply type
Switching - an advanced electronic circuit providing stable output voltage with high energy efficiency.
AC input voltage
85 V ... 264 V AC - universal input range allowing for safe operation in almost any power grid in the world.
DC input voltage
120 V ... 370 V DC - support for DC power supply, which increases the flexibility of applications in specialized systems.
Output voltage
24 V DC - standard industrial voltage, electronically stabilized for the protection of sensitive receivers.
Output voltage regulation
21.6 V ... 29 V DC - built-in potentiometer allows for compensation of voltage drops on long power lines.
Power supply current capacity
4.2 A - high output current allowing for powering extensive automation and monitoring systems.
Power supply power
100.8 W - high rated power enclosed in a compact housing mounted on a rail.
Number of outputs
2 pcs. - double screw terminals facilitating aesthetic and safe connection of multiple wires.
Efficiency
90 % - minimization of energy losses translates into low operating temperature and longer device life.
Housing type
DIN - standard width and snap-in system allow for instant installation in distribution cabinets.
Protections
Short-circuit, Overload, Overvoltage - full protection package for the power supply and connected equipment.
Operating temperature
-40 °C ... 70 °C - extreme thermal resistance allowing for installation in outdoor cabinets and production halls.
Relative humidity
10 % ... 95 % - resistance to condensation and difficult environmental conditions prevailing in the industry.
Dimensions and weight
92.7 x 70 x 58 mm / 250 g - optimization of dimensions allows for saving valuable space on the mounting rail.
Warranty
3 years - manufacturer's declaration of the highest quality of components and construction reliability.
Contents
1x Professional DL2-100-24-U switching power supply designed for DIN rail
1x Technical documentation and installation manual.
Dimensions, Weight
Product dimensions: 58 x 70 x 93 mm (D x W x H)
Package dimensions: 60 x 75 x 95 mm (D x W x H)
Product weight: 250 g
Weight with packaging: 276 g
