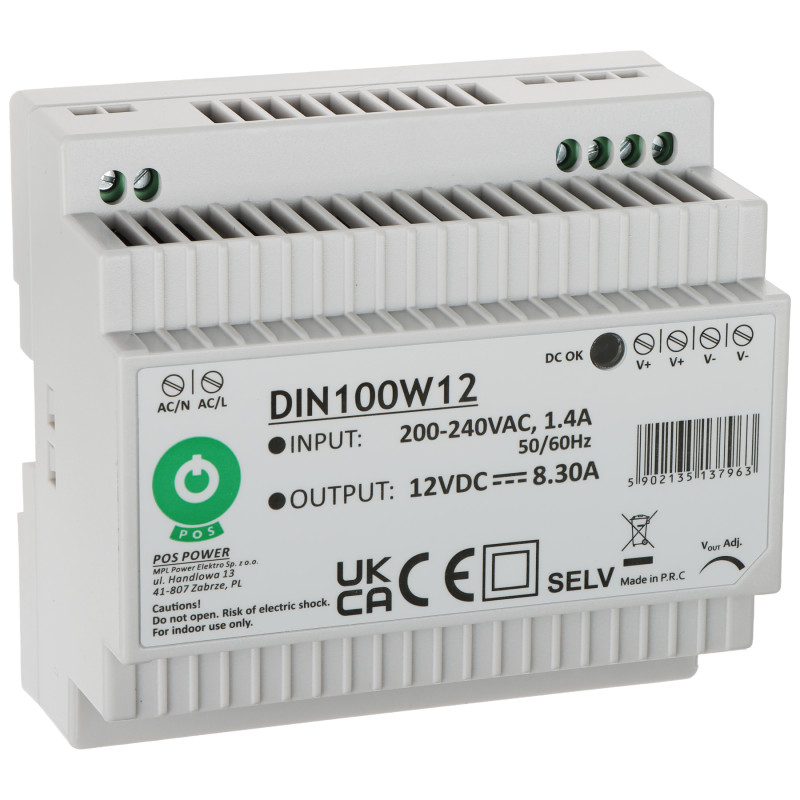

12V 8.3A 100W DIN Rail Switching Power Supply with Voltage Adjustment TS-35 Mount Stabilized POS DIN100W12
zł143.21
Tax included
The POS DIN100W12 switching power supply is an advanced power solution designed for professional automation systems, monitoring, and industrial installations. The device features a high current efficiency of 8.3A at an output voltage of 12V DC, resulting in a total power of 100W. One of the key advantages of this model is the ability to precisely adjust the output voltage in the range from 10.7V to 13.5V, which allows for effective compensation of voltage drops on long power cables.
The power supply design is fully adapted for mounting on a standard DIN rail TS35/7.5 or 15, which significantly facilitates installation in control cabinets and electrical switchboards. The product is distinguished by exceptional resistance to harsh environmental conditions, including high operating temperatures reaching up to 70°C. The high efficiency of the device, exceeding 86%, guarantees minimal energy loss and limited component heating, which directly affects the longevity and reliability of the entire system.
Operational safety is ensured by integrated protection systems: short-circuit, overload, overvoltage, and thermal. Thanks to two power outputs, the user gains greater flexibility in connecting receivers. A solid DIN-type housing and a two-year manufacturer's warranty confirm the high quality of this component. It is an ideal choice for installers looking for a stable power source for CCTV cameras, alarm systems, or PLC controllers, where reliability and precision of electrical parameters are essential.
12V 8.3A 100W DIN Rail Switching Power Supply with Voltage Adjustment TS-35 Mount Stabilized
Model: POS DIN100W12
EAN: 6931240093719 SKU: 931093716
- Mounting on DIN rail TS35/7.5 or 15
- Wide input voltage range 180-264V AC
- Precise output voltage adjustment 10.7 - 13.5V DC
- High energy efficiency above 86%
- Comprehensive protection package: SCP, OLP, OVP, OTP
- Cooling by free air convection
- Two power outputs for easy connection of multiple receivers
- Resistance to high operating temperatures up to 70°C
Description
The POS DIN100W12 switching power supply is an advanced power solution designed for professional automation systems, monitoring, and industrial installations. The device features a high current efficiency of 8.3A at an output voltage of 12V DC, resulting in a total power of 100W. One of the key advantages of this model is the ability to precisely adjust the output voltage in the range from 10.7V to 13.5V, which allows for effective compensation of voltage drops on long power cables.
The power supply design is fully adapted for mounting on a standard DIN rail TS35/7.5 or 15, which significantly facilitates installation in control cabinets and electrical switchboards. The product is distinguished by exceptional resistance to harsh environmental conditions, including high operating temperatures reaching up to 70°C. The high efficiency of the device, exceeding 86%, guarantees minimal energy loss and limited component heating, which directly affects the longevity and reliability of the entire system.
Operational safety is ensured by integrated protection systems: short-circuit, overload, overvoltage, and thermal. Thanks to two power outputs, the user gains greater flexibility in connecting receivers. A solid DIN-type housing and a two-year manufacturer's warranty confirm the high quality of this component. It is an ideal choice for installers looking for a stable power source for CCTV cameras, alarm systems, or PLC controllers, where reliability and precision of electrical parameters are essential.
Specification
Power supply type
Switching - an advanced high-frequency converter ensuring stable output parameters with minimal energy loss.
Supply voltage
180 ... 264 V AC - a wide AC input range allowing for stable operation even with large fluctuations in the power grid.
Output voltage
12 V DC - constant output voltage ideal for video monitoring systems, LED lighting, and building automation.
Voltage adjustment
10.7 ... 13.5 V - a built-in potentiometer allows for precise voltage tuning to compensate for drops on long cable lines.
Current efficiency
8.3 A - the maximum continuous current that the power supply can deliver to connected receivers while maintaining full stability.
Rated power
100 W - the total output power of the device, allowing for the powering of extensive electronic and actuator systems.
Number of outputs
2 pcs. - dual output terminals facilitating power distribution to multiple devices simultaneously without the need for additional splitters.
Energy efficiency
> 86 % - a high efficiency coefficient reducing heat emission to the environment and lowering system operating costs.
Housing type
DIN - a standard modular housing made of high-quality plastic, adapted for quick mounting on TS-35 rails.
Protections
Short-circuit (SCP), Overload (OLP), Overvoltage (OVP), Thermal (OTP) - a full protection package ensuring the safety of the power supply and receivers.
Operating conditions
Temperature -20 °C ... 50 °C, Humidity 45 ... 85 % - the device is adapted for indoor operation in a wide range of ambient temperatures.
Operation signaling
LED indicator informing about the presence of voltage at the device output, which significantly facilitates service diagnostics and monitoring of operating status.
Cooling
Convection - passive cooling through free air circulation, which eliminates the need for loud and failure-prone fans.
Compliance and standards
The product meets rigorous European safety and electromagnetic compatibility standards confirmed by the CE certificate.
Contents
1x DIN100W12 switching power supply
1x User manual / Technical data sheet
Dimensions, Weight
Product dimensions: 56 x 93 x 100 mm (D x W x H)
Package dimensions: 65 x 105 x 105 mm (D x W x H)
Product weight: 302 g
Weight with packaging: 333 g
