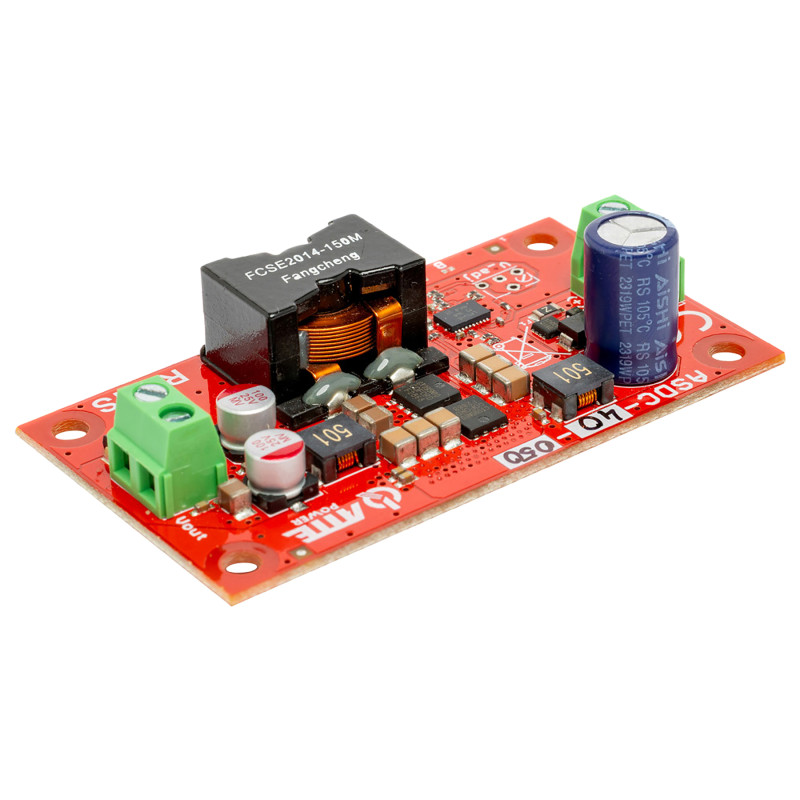

DC/DC Step-Down Voltage Converter 16-56V to 5V 8A 40W Switching Power Supply Module Stabilizer

Model: ATTE ASDC-40-050-OF

EAN: 6931240059494 SKU: 931059492

• High energy conversion efficiency
• Wide input voltage range 16V - 56V DC
• Stable 5V DC output voltage
• Maximum output current up to 8A
• Integrated short-circuit protection (SCP)
• Integrated overload protection (OLP)
• Integrated overvoltage protection
• Output voltage adjustment capability
• Open Frame design for integration
• 3-year manufacturer warranty

Description

The professional ASDC-40-050-OF step-down converter module is a high-performance DC/DC power solution designed for systems requiring a stable 5V voltage under significant current load. The device features a very wide input voltage range from 16V to 56V DC, making it an extremely versatile component in low-voltage installations, CCTV monitoring systems, and industrial automation.

A key advantage of the module is its high current efficiency of up to 8A, which translates to an output power of 40W. Thanks to the Open Frame (OF) design, the module is ideal for installation inside other devices or dedicated enclosures, ensuring optimal heat dissipation during intensive operation. Precise output voltage regulation allows for adjusting operating parameters to specific receiver requirements, ensuring the safety and stability of powered electronic circuits.

Operational safety is enhanced by advanced protection systems. The module is equipped with a full suite of protections: short-circuit, overvoltage, and overload. These protect not only the converter itself but also the expensive end devices connected to it from the effects of power grid failures or installation errors. The robust design and use of high-quality components allowed the manufacturer to offer a 3-year warranty period, confirming the product's reliability in demanding operating conditions.

Product advantages:

- Very wide input voltage range (up to 56V DC)

- High 8A output current enabling power supply for demanding receivers

- Compact dimensions facilitating installation in tight spaces

- Full electronic protection (short-circuit, overload, overvoltage)

- Possibility of precise output voltage regulation

- Long service life and 36-month manufacturer warranty

- Open Frame design facilitating system integration

Specification

Device type

DC/DC Step-Down Converter Module

Number of inputs

1 - dedicated input power connector

Number of outputs

1 - dedicated output power connector

Supply voltage (input)

16 V ... 56 V DC (direct current)

Output voltage

5 V DC (stabilized)

Output voltage regulation

Yes - built-in potentiometer for precise parameter setting

Output current

Maximum 8 A (ensures stable operation at full load)

Output power

40 W (total rated power of the device)

Short-circuit protection

Yes - automatic output disconnection in case of short-circuit detection

Overvoltage protection

Yes - protection against sudden voltage spikes in the installation

Overload protection

Yes - module protection against current draw exceeding 8A

Design

Open Frame (OF) - module without external casing, intended for internal mounting

Operating conditions

Intended for continuous operation indoors or in external enclosures with appropriate IP rating

Warranty

3 years (36 months) from the date of purchase

Application

Video surveillance systems, microcontroller power supply, LED lighting systems, home automation

Contents

1x ASDC-40-050-OF converter module

Dimensions, Weight

Product dimensions: 20 x 74 x 41 mm (D x W x H)

Package dimensions: 35 x 90 x 55 mm (D x W x H)

Product weight: 37 g

Weight with packaging: 62 g
