- New

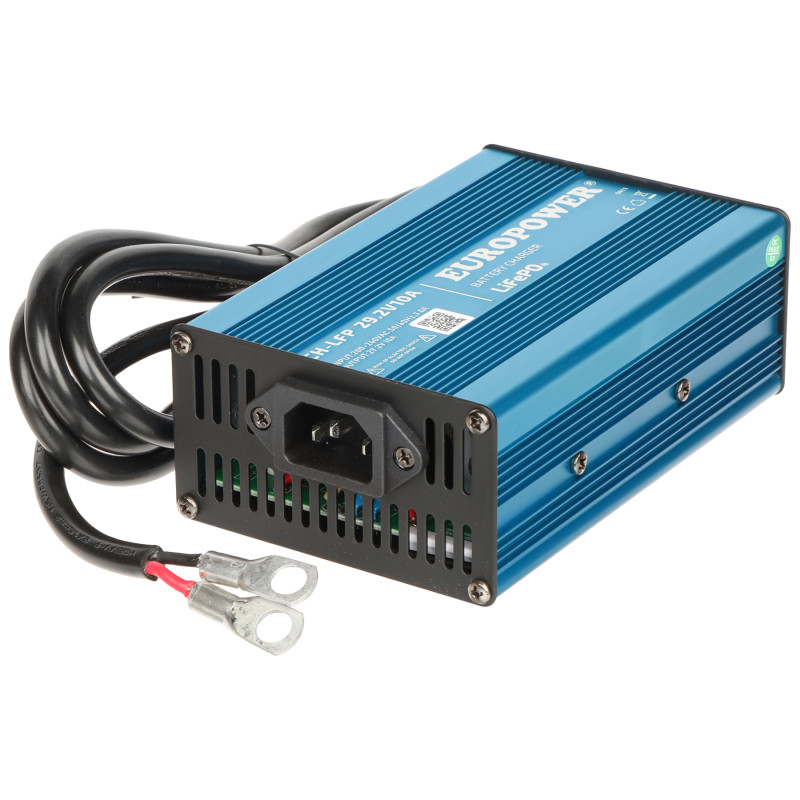

LiFePO4 Battery Charger 24V 10A EUROPOWER CHLFP/24/10
zł265.25
Tax included
The professional CHLFP/24/10 charger has been specifically designed for lithium iron phosphate (LiFePO4) batteries. The device utilizes an advanced two-stage CC-CV (Constant Current - Constant Voltage) charging process. In the first phase, the charger delivers a constant current of 10A, allowing for fast and safe energy replenishment. Once the battery reaches the appropriate voltage threshold, the device automatically switches to constant voltage mode, completing the process in a controlled manner that is safe for the cells.
The charger's design prioritizes safety and durability. It is equipped with a range of protections, including overcharge, short-circuit, and overcurrent protection. The solid metal housing ensures excellent heat dissipation and mechanical resistance, which is crucial for cyclic and buffer operation. The set includes dedicated connection cables with M8 terminals, facilitating installation. The device is intuitive to operate thanks to the built-in LED indicator that informs about the operating status. Please note that the charger does not have reverse polarity protection, so special attention is required when connecting the battery terminals.
LiFePO4 Battery Charger 24V 10A
Model: EUROPOWER CHLFP/24/10
EAN: 6931240078396 SKU: 931078396
- Two-stage CC-CV charging process
- Short-circuit and overload protection
- Overcharge protection
- Solid metal housing
- LED status indicator
- Connection cables with M8 terminals included
Description
The professional CHLFP/24/10 charger has been specifically designed for lithium iron phosphate (LiFePO4) batteries. The device utilizes an advanced two-stage CC-CV (Constant Current - Constant Voltage) charging process. In the first phase, the charger delivers a constant current of 10A, allowing for fast and safe energy replenishment. Once the battery reaches the appropriate voltage threshold, the device automatically switches to constant voltage mode, completing the process in a controlled manner that is safe for the cells.
The charger's design prioritizes safety and durability. It is equipped with a range of protections, including overcharge, short-circuit, and overcurrent protection. The solid metal housing ensures excellent heat dissipation and mechanical resistance, which is crucial for cyclic and buffer operation. The set includes dedicated connection cables with M8 terminals, facilitating installation. The device is intuitive to operate thanks to the built-in LED indicator that informs about the operating status. Please note that the charger does not have reverse polarity protection, so special attention is required when connecting the battery terminals.
Specification
Battery type
LiFePO4 (25.6V)
Battery capacity
>= 20 Ah
Typical charging time
50Ah ~ 5h, 100Ah ~ 10h
Charging current
10 A
Charging voltage
29.2 V
Maximum output power
292 W
LED indicator
Yes
LED display
No
Cable length
1.5m (to battery, M8 connector), 1.4m (power cord)
Power supply
200 - 240V AC @ 50/60Hz
Operating temperature
0 °C ... 45 °C
Ingress protection rating
None
Insulation class
None
Warranty
1 year
Contents
1x CHLFP/24/10 Charger
1x Power cord
1x Battery cable with M8 terminals
Dimensions, Weight
Product dimensions: 51 x 157 x 90 mm (D x W x H)
Packaging dimensions: 65 x 210 x 160 mm (D x W x H)
Product weight: 710 g
Weight with packaging: 948 g
