Wireless PIR detector with camera and infrared illuminator DAHUA ARD1731-W2(868)
zł438.86
Tax included
The wireless PIR detector with camera is an advanced security device designed for effective video verification of alarm events. Thanks to the built-in camera, the user can verify the cause of an alarm trigger in real-time, which significantly reduces the number of false interventions. The device uses modern RF-HD 2.4GHz image transmission technology, which allows for the instant transfer of up to 6 high-resolution photos (1600x1200 px) in just 10 seconds. It is an ideal solution for those who value fast response times and high-quality evidence material.
The detector is fully compatible with Dahua wireless access control and alarm systems operating in the 868 MHz band. The use of AES-128 data encryption and advanced anti-jamming protection through frequency hopping guarantees the highest level of transmission security. The device features a long battery life of up to 4 years, making it an extremely economical and maintenance-free element of the security system. The robust PC+ABS plastic housing ensures durability, and the built-in tamper switch protects against unauthorized opening or removal of the detector from the wall. Thanks to its compact dimensions and aesthetic appearance, the detector fits perfectly into any interior while offering professional perimeter protection.

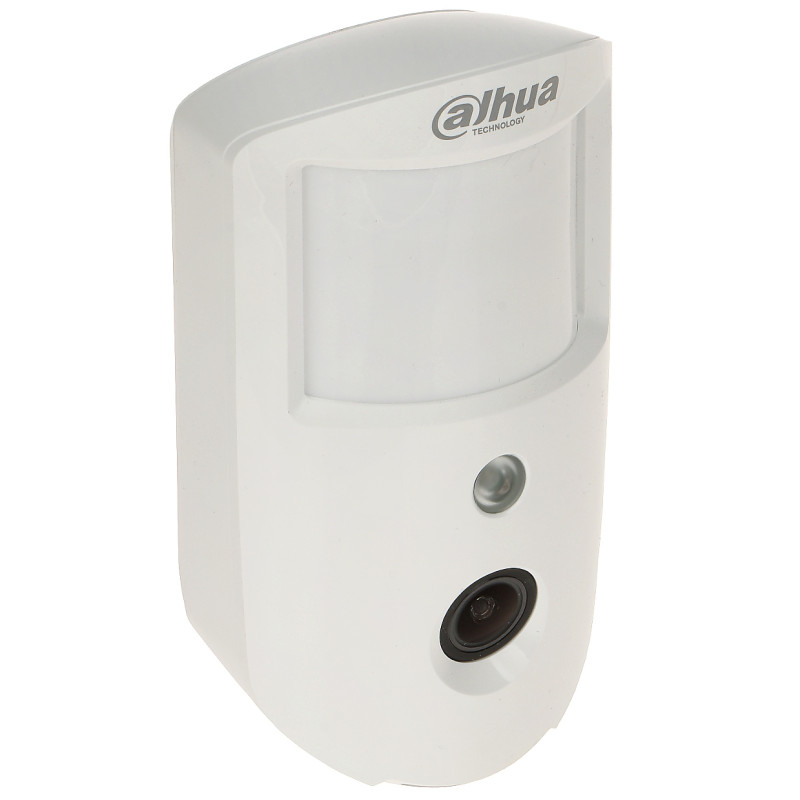

Wireless PIR detector with camera and infrared illuminator
Model: DAHUA ARD1731-W2(868)
EAN: 6931240028469 SKU: 931028467
- Built-in CMOS camera with IR illuminator (12m)
- HD 2.4GHz image transmission (up to 6 photos in 10s)
- 868MHz two-way communication
- AES-128 data encryption
- Pet immunity up to 18 kg
- Detection range 12m, angle 86 degrees
- Tamper switch
- Battery powered (3x CR123A) with up to 4 years of operation
Description
The wireless PIR detector with camera is an advanced security device designed for effective video verification of alarm events. Thanks to the built-in camera, the user can verify the cause of an alarm trigger in real-time, which significantly reduces the number of false interventions. The device uses modern RF-HD 2.4GHz image transmission technology, which allows for the instant transfer of up to 6 high-resolution photos (1600x1200 px) in just 10 seconds. It is an ideal solution for those who value fast response times and high-quality evidence material.
The detector is fully compatible with Dahua wireless access control and alarm systems operating in the 868 MHz band. The use of AES-128 data encryption and advanced anti-jamming protection through frequency hopping guarantees the highest level of transmission security. The device features a long battery life of up to 4 years, making it an extremely economical and maintenance-free element of the security system. The robust PC+ABS plastic housing ensures durability, and the built-in tamper switch protects against unauthorized opening or removal of the detector from the wall. Thanks to its compact dimensions and aesthetic appearance, the detector fits perfectly into any interior while offering professional perimeter protection.
Specification
Compatibility
DAHUA wireless alarm systems
Frequency band
868.0 ... 868.6 MHz (alarm), 2.4 GHz (HD image transmission)
Radio communication range
max. 1600 m @ 868 MHz, max. 300 m @ 2.4 GHz (in open space)
Alarm signaling
Signal to alarm control panel, LED indicator
Tamper switch
Yes (signaling of opening or removal of the housing)
Battery
3 x CR123A 3 V (included)
Battery life
~ 4 years
Power consumption
max. 230 mA, 65 µA (standby mode)
Software and features
The device works with the Dahua mobile application, which enables remote viewing of the camera image when an alarm occurs. The software supports cloud updates, ensuring access to the latest security patches and features. The system offers cloud cache for video and image recordings for a period of 1 week. The application allows for PIR sensitivity configuration (3 levels), battery status monitoring, and radio signal strength. Thanks to two-way communication, the user receives instant notifications about events, and AES-128 encryption protects transmitted data from interception. The user interface is intuitive, allowing for quick video verification and alarm system management from anywhere in the world.
PIR detection
Sensitivity adjustment (3 levels), detection angle 86°, range 12m, pet immunity up to 18kg, detection speed 0.3 - 3 m/s
Camera
CMOS, viewing angle 88°, resolutions: 1600x1200, 1280x960, 640x480, 320x240 px, JPEG format, day/night mode, IR illuminator 12m
Housing
Plastic (PC + ABS), white color
Operating conditions
Temperature: -10°C ... 55°C, humidity: 10% ... 90%
Warranty
3 years
Contents
1x Wireless PIR detector with camera ARD1731-W2(868)
3x CR123A battery
Mounting elements
Dimensions, Weight
Product dimensions: 53 x 71 x 128 mm (D x W x H)
Package dimensions: 170 x 120 x 65 mm (D x W x H)
Product weight: 210 g
Weight with package: 336 g
