AOD-210-GY Wireless Dual PIR and MW Outdoor Detector ABAX ABAX2 SATEL AOD-210-GY
zł756.45
Tax included

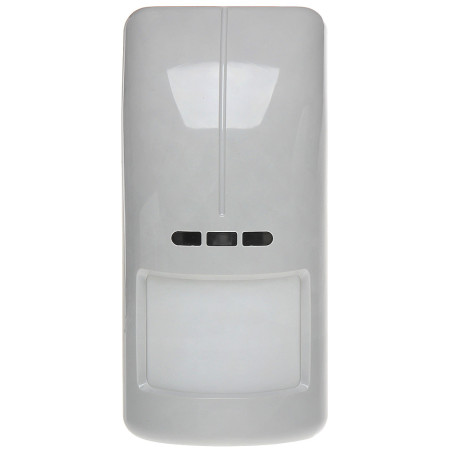

The AOD-210-GY wireless motion detector is an advanced device designed to detect intruders in a protected space, both indoors and outdoors. Thanks to the use of dual detection technology, combining passive infrared (PIR) and microwave (MW), the device is characterized by exceptionally high resistance to false alarms, which is crucial in variable weather conditions such as rain, snow, fog, or strong wind. The detector is ideal for places where wired installation is difficult or impossible, e.g., in kiosks, summer houses, boutiques, garages, or workshops.
The device is fully compatible with ABAX and ABAX2 wireless systems, which ensures stable and secure radio communication. The advanced energy management used allows for many years of operation on a single CR123A lithium battery, making the system as reliable as traditional wired solutions. An additional advantage is the built-in twilight sensor, which allows the detector to be used in building automation systems. The IP54-rated housing guarantees protection against external factors, and advanced temperature compensation ensures precise operation in a wide temperature range from -40°C to 55°C. The detector also has a creep zone control function and tamper detection (opening the housing or detachment from the surface), which significantly increases the security level of the protected object.
AOD-210-GY Wireless Dual PIR and MW Outdoor Detector ABAX ABAX2
Model: SATEL AOD-210-GY
EAN: 6931240084540 SKU: 931084545
- Dual detection technology: PIR + MW
- High resistance to false alarms
- Compatibility with ABAX/ABAX2 systems
- Built-in twilight sensor
- Indoor and outdoor use (IP54)
- Advanced temperature compensation
- Tamper detection (opening/detachment)
- Battery power with advanced energy management
Description
The AOD-210-GY wireless motion detector is an advanced device designed to detect intruders in a protected space, both indoors and outdoors. Thanks to the use of dual detection technology, combining passive infrared (PIR) and microwave (MW), the device is characterized by exceptionally high resistance to false alarms, which is crucial in variable weather conditions such as rain, snow, fog, or strong wind. The detector is ideal for places where wired installation is difficult or impossible, e.g., in kiosks, summer houses, boutiques, garages, or workshops.
The device is fully compatible with ABAX and ABAX2 wireless systems, which ensures stable and secure radio communication. The advanced energy management used allows for many years of operation on a single CR123A lithium battery, making the system as reliable as traditional wired solutions. An additional advantage is the built-in twilight sensor, which allows the detector to be used in building automation systems. The IP54-rated housing guarantees protection against external factors, and advanced temperature compensation ensures precise operation in a wide temperature range from -40°C to 55°C. The detector also has a creep zone control function and tamper detection (opening the housing or detachment from the surface), which significantly increases the security level of the protected object.
Specification
Compatibility
ABAX/ABAX2
Frequency band
868 MHz ... 868.6 MHz
Radio communication range
Up to 2000 m (ABAX2 @ ACU-220), up to 1600 m (ABAX2 @ ACU-280), up to 500 m (ABAX)
PIR detector range
16 m / 90°
Pet immunity
Up to 20 kg
Power supply
CR123A 3 V (included)
Battery life
Up to 2 years (in energy-saving mode)
Detectable motion speed
0.3 ... 3 m/s
Recommended mounting height
2.4 m
Security grade
Grade 2
Operating temperature
-40°C ... 55°C
Ingress protection rating
IP54
Software and configuration
The device supports remote configuration via ABAX/ABAX2 systems. The alarm control panel software allows for full management of detector parameters, including adjustment of PIR and MW detection sensitivity. The system allows for monitoring battery status, radio signal quality, and remote firmware updates when using ABAX2 controllers. Advanced digital algorithms analyze signals from both sensors, which allows for intelligent elimination of false alarms caused by weather conditions or small animals.
Selected features
Passive infrared (PIR) and microwave (MW), built-in twilight sensor, remote configuration, advanced energy management, advanced temperature compensation, high resistance to false alarms, operation in adverse weather conditions (rain, snow, fog, strong wind), adjustable detection sensitivity, creep zone control, tamper detection.
Contents
1x AOD-210-GY Detector
1x CR123A Battery
Dimensions, Weight
Product dimensions: 58 x 65 x 138 mm (D x W x H)
Package dimensions: 65 x 160 x 70 mm (D x W x H)
Product weight: 180 g
Weight with packaging: 218 g
