- New

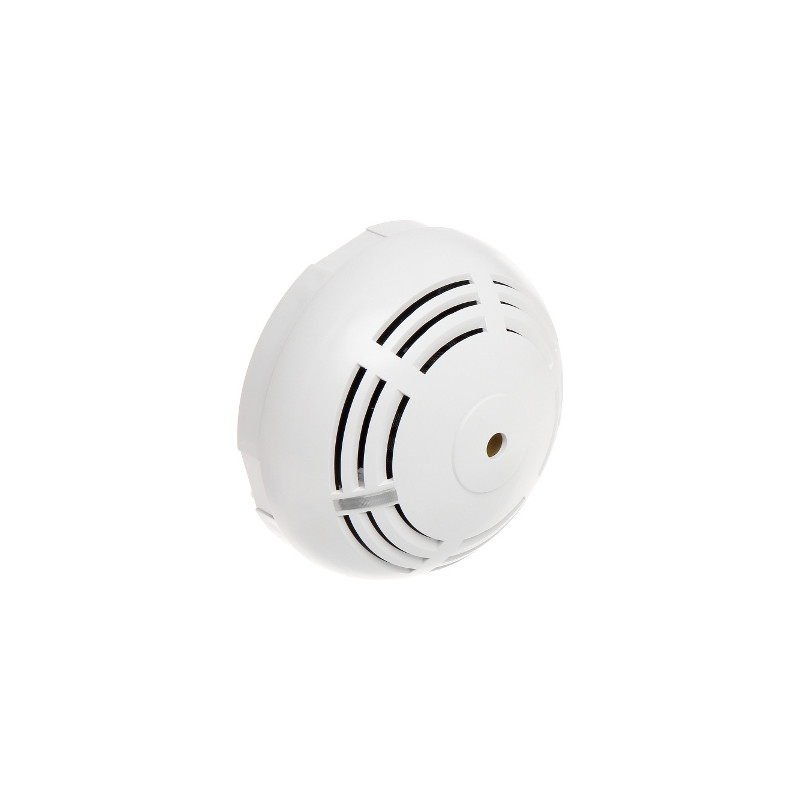

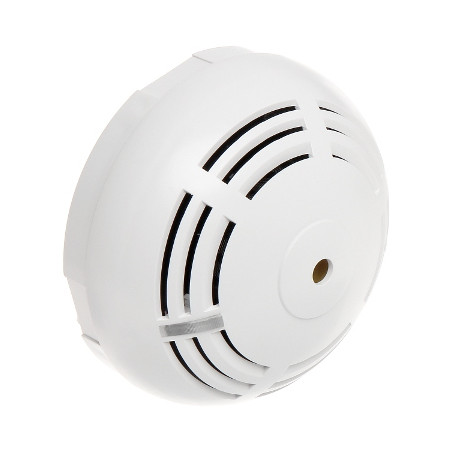

ABAX2 Wireless Carbon Monoxide Detector SATEL ACMD-200
zł454.49
Tax included
The ACMD-200 is an advanced wireless carbon monoxide (CO) detector designed to provide the highest level of safety in residential and commercial premises. The device is characterized by high precision in detecting dangerous gas concentrations, allowing for a rapid response in life-threatening situations. Thanks to the use of a modern electrochemical sensor, the detector guarantees long service life and operational reliability for up to 10 years. The digital temperature compensation mechanism allows for stable operation across a wide range of environmental conditions, eliminating the risk of false alarms caused by ambient temperature changes.
The device offers great installation flexibility, capable of operating in standalone mode or as an integral part of the two-way ABAX2 wireless system. If a carbon monoxide concentration threshold is exceeded, the detector immediately triggers optical (LED) and acoustic (buzzer) signaling, effectively warning occupants. The use of AES encrypted radio communication and frequency hopping technology ensures resistance to jamming attempts and signal interference. An additional advantage is the built-in temperature sensor and advanced power-saving features, which in ABAX2 mode allow for significantly extended battery life. The detector also features tamper protection to prevent unauthorized opening of the enclosure, making it a complete solution for modern security systems.
ABAX2 Wireless Carbon Monoxide Detector
Model: SATEL ACMD-200
EAN: 6931240068229 SKU: 931068227
- Electrochemical carbon monoxide sensor with a 10-year service life
- Compatibility with the ABAX2 wireless system or standalone operation
- Two-way encrypted radio communication (AES)
- Anti-jamming protection via frequency hopping
- Built-in temperature sensor (0°C ... 55°C)
- Digital temperature compensation
- Optical and acoustic signaling
- Tamper protection against enclosure opening
- ECO option to extend battery life
Description
The ACMD-200 is an advanced wireless carbon monoxide (CO) detector designed to provide the highest level of safety in residential and commercial premises. The device is characterized by high precision in detecting dangerous gas concentrations, allowing for a rapid response in life-threatening situations. Thanks to the use of a modern electrochemical sensor, the detector guarantees long service life and operational reliability for up to 10 years. The digital temperature compensation mechanism allows for stable operation across a wide range of environmental conditions, eliminating the risk of false alarms caused by ambient temperature changes.
The device offers great installation flexibility, capable of operating in standalone mode or as an integral part of the two-way ABAX2 wireless system. If a carbon monoxide concentration threshold is exceeded, the detector immediately triggers optical (LED) and acoustic (buzzer) signaling, effectively warning occupants. The use of AES encrypted radio communication and frequency hopping technology ensures resistance to jamming attempts and signal interference. An additional advantage is the built-in temperature sensor and advanced power-saving features, which in ABAX2 mode allow for significantly extended battery life. The detector also features tamper protection to prevent unauthorized opening of the enclosure, making it a complete solution for modern security systems.
Specification
Compatibility
SATEL ABAX2 wireless alarm systems
Detection
Carbon monoxide (CO)
Alarm signaling
Acoustic (buzzer), Optical (LED)
Alarm concentration
50-75 ppm for 75 minutes; 75-120 ppm for 25 minutes; > 120 ppm for 1 minute
Frequency band
868.0 MHz ... 868.6 MHz
Radio communication range
2000 m (ACU-220), 1200 m (ACU-280) in open area
Power supply
1 x CR123A 3V battery (included)
Battery life
~ 5 years (standalone operation), ~ 2 years (ABAX2)
Operating temperature
0 °C ... 55 °C
Software and communication
The device works with ABAX2 system controllers (ACU-220, ACU-280). Communication is two-way using AES encryption, which ensures a high level of data transmission security. The ABAX2 system allows for remote monitoring of the detector status, including battery level control and sensor diagnostics. The controller software allows for the configuration of the ECO mode, which optimizes energy consumption, extending the device's operating time by up to four times. The system automatically manages frequency hopping to avoid radio interference, which guarantees operational reliability in environments with high density of wireless signals.
Selected features
Electrochemical CO sensor, 10-year service life, test mode, gas sensor supervision, fault signaling, battery status control, low battery alarm, built-in temperature sensor, tamper protection.
Recommended mounting height
1.5 ... 2.0 m from the floor
Manufacturer / Brand
SATEL
Warranty
2 years
Contents
1x ACMD-200 detector
1x CR123A battery
Dimensions, Weight
Product dimensions: 49 x 108 x 108 mm (D x W x H)
Packaging dimensions: 70 x 120 x 120 mm (D x W x H)
Product weight: 140 g
Weight with packaging: 210 g
