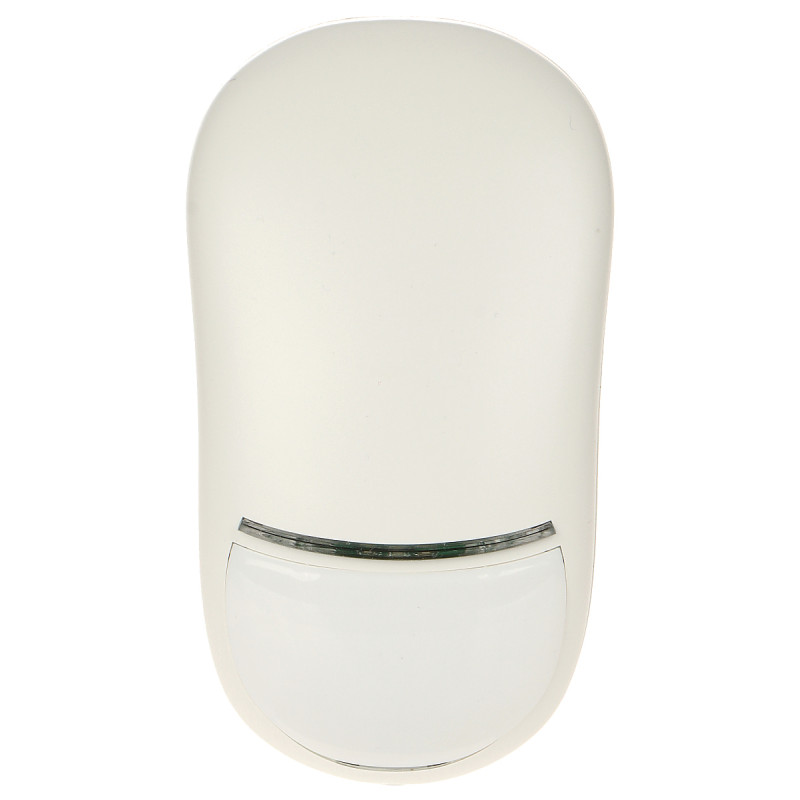

Digital Dual PIR and Microwave Motion Detector Grade 2 Pet Immune 20kg Wired Alarm Sensor VIDICON IX-PLUS
zł169.75
Tax included
IX-PLUS is a professional digital dual detector designed for indoor use, combining two independent detection technologies: passive infrared (PIR) and microwave (MW). Thanks to the dual technology, the device is characterized by exceptional effectiveness in detecting intruders while maximizing the reduction of false alarms that could be caused by environmental factors.
A key advantage of the detector is its full digital signal analysis. The device is not affected by interference caused by white light, ultraviolet radiation, or rapid temperature changes. It is also completely resistant to electromagnetic radiation and air movements generated by air conditioning or heating systems.
The product offers advanced operating modes, such as AND (alarm triggered when motion is detected by both sensors simultaneously) and Smart-OR (intelligent activation logic upon prolonged detection by one of the sensors). An additional advantage is the pet immunity function for animals weighing up to 20 kg, which allows pets to move freely in the protected zone without triggering the alarm system. The use of high-quality LODIFF Fresnel lenses and POLY IR filters ensures precise coverage of the detection area up to 15 meters at a 100-degree angle. It is an ideal solution for demanding security systems, combining reliability with modern digital technology.
Digital Dual PIR and Microwave Motion Detector Grade 2 Pet Immune 20kg Wired Alarm Sensor
Model: VIDICON IX-PLUS
EAN: 6931240028766 SKU: 931028769
- Dual detection technology: PIR (infrared) + MW (microwave)
- Full digital signal analysis to eliminate false alarms
- Pet immunity for animals weighing up to 20 kg
- Advanced AND and Smart-OR logic modes
- Detection range up to 15 meters with a 100-degree wide angle
- Built-in EOL parametric resistors configurable via jumpers
- Compliance with EN 50131-2-4 Grade 2 safety standard
- High radio frequency (RF) interference immunity up to 30 V/m
- Digital temperature compensation for stable operation in various conditions
- Dual tamper protection (housing opening and wall detachment)
Description
IX-PLUS is a professional digital dual detector designed for indoor use, combining two independent detection technologies: passive infrared (PIR) and microwave (MW). Thanks to the dual technology, the device is characterized by exceptional effectiveness in detecting intruders while maximizing the reduction of false alarms that could be caused by environmental factors.
A key advantage of the detector is its full digital signal analysis. The device is not affected by interference caused by white light, ultraviolet radiation, or rapid temperature changes. It is also completely resistant to electromagnetic radiation and air movements generated by air conditioning or heating systems.
The product offers advanced operating modes, such as AND (alarm triggered when motion is detected by both sensors simultaneously) and Smart-OR (intelligent activation logic upon prolonged detection by one of the sensors). An additional advantage is the pet immunity function for animals weighing up to 20 kg, which allows pets to move freely in the protected zone without triggering the alarm system. The use of high-quality LODIFF Fresnel lenses and POLY IR filters ensures precise coverage of the detection area up to 15 meters at a 100-degree angle. It is an ideal solution for demanding security systems, combining reliability with modern digital technology.
Specification
Application and Purpose
Indoor motion detector for intrusion and robbery alarm systems
Detection Technology
Dual: Passive infrared (PIR) and microwave (MW) path
Range and Field of View
Maximum range: 15 m; Detection angle: 100 °
Alarm Logic
AND mode (PIR+MW); Smart-OR mode (intelligent single-path analysis)
Pet Immunity
Ignoring animals weighing up to 20 kg
Optics and Lenses
LODIFF® Fresnel lens array; Lenses with UV POLY IR® filter; White light filter
Signal Analysis
Fully digital processing; Pulse counter; Digital temperature compensation
Outputs and Connectors
Alarm output: NC; Built-in EOL parametric resistors (set via jumpers)
Tamper Protection
Tamper: Detection of housing opening and detachment of the device from the surface
Interference Immunity
RF immunity: 30 V/m; White light and UV immunity; EM radiation immunity
Electrical Parameters
Supply voltage: 9 ... 15 V DC; Maximum current consumption: 32 mA
Environmental Conditions
Operating temperature: -20 °C ... 40 °C
Certification
Security grade: Grade 2 according to EN 50131-2-4
Installation
Recommended mounting height: 1.8 m ... 2.2 m; Wall or SN-4 bracket mounting possible
Software and Algorithms
The device uses an advanced digital signal processing algorithm that analyzes data from both sensors in real time. The Smart-OR function allows for intelligent switching of detection logic, which prevents the 'blinding' of one of the paths. The digital temperature compensation system automatically adjusts the detector's sensitivity to the ambient temperature, ensuring constant detection effectiveness regardless of the season. The pulse counter algorithm allows for precise tuning of sensitivity to the specifics of the protected facility, minimizing the impact of external interference.
Contents
1x IX-PLUS dual detector
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 40 x 63 x 114 mm (D x W x H)
Package dimensions: 45 x 65 x 115 mm (D x W x H)
Product weight: 80 g
Weight with packaging: 100 g
