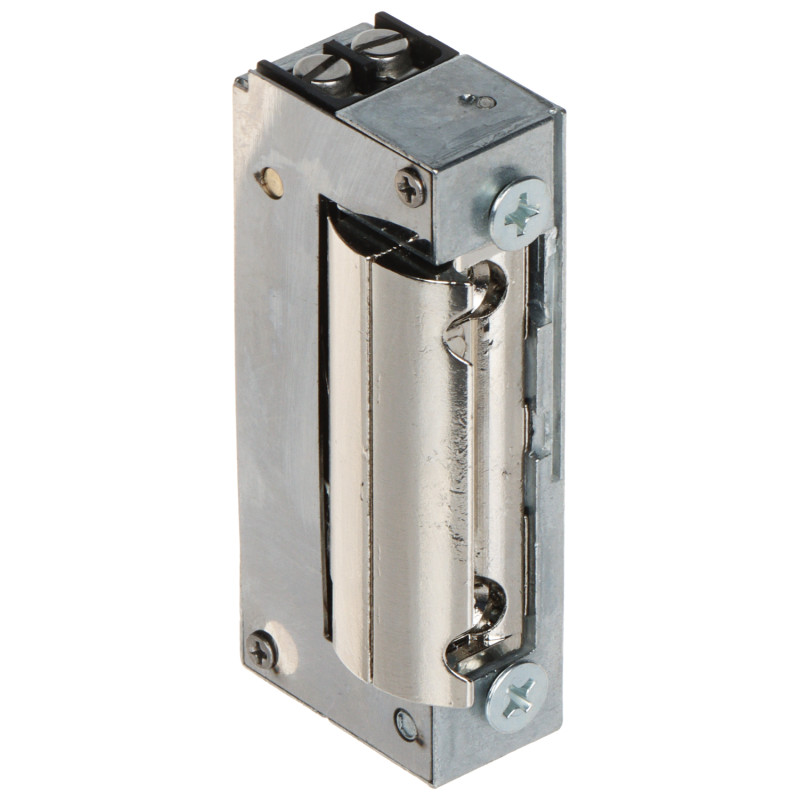

Narrow Symmetrical Electric Strike 24V AC/DC for Left Right Doors 3.5mm Adjustment NC Radial Latch

Model: BIRA XS24U

EAN: 6931240041314 SKU: 931041312

• Narrow profile (only 16.2 mm wide) ideal for ALU and PVC profiles
• Symmetrical design allowing installation in left and right doors
• Radial latch shape preventing it from extending beyond the lock outline
• 3.5 mm clearance adjustment for precise fitting
• High mechanical strength against pressure up to 3000 N (300 kg)
• NC operating mode - closed without power supply
• Very high durability confirmed by a 200,000 cycle test
• Compatible with both alternating current (AC) and direct current (DC)

Description

The XS24U electric strike from the Hartte series is a professional solution for access control systems, characterized by an exceptionally narrow design with a width of only 16.2 mm. Due to these compact dimensions, the device is ideal for installation in modern, narrow aluminum profiles and door frames where standard strikes cannot be used.

A key advantage of the XS24U model is its symmetrical design, which makes it fully universal and suitable for installation in both left and right doors. The radial shape of the strike latch is another innovation – during operation, this element moves along an arc without extending beyond the electric strike housing. This allows for a significant reduction in the size of the mounting hole in the door frame, which not only looks aesthetic but also speeds up the installation process.

The device has been designed for high reliability and durability. Mechanical strength at the level of 3000 N (corresponding to a pressure of approximately 300 kg) guarantees safety, and the tested number of opening cycles of 200,000 confirms the product's longevity even under intensive use. Additionally, the 3.5 mm clearance adjustment allows for precise fitting of the strike to the latch bolt, eliminating potential vibrations or difficulties with closing the door.

Product advantages:

- Extremely narrow profile (16.2 mm) facilitating installation in PVC and ALU profiles.

- Universal installation (left/right doors).

- High resistance to break-in and pressure (3000 N).

- Radial latch minimizing interference with the door frame structure.

- Compatible with direct current (DC) and alternating current (AC) in a wide voltage range of 20-26V.

- Solid construction by the renowned manufacturer BIRA.

Specification

Rated voltage

The device supports a wide voltage range: 21 ... 26 V AC (alternating current) and 20 ... 26 V DC (direct current), ensuring compatibility with most intercom systems.

Current consumption (AC)

The current consumption at 24 V AC is 280 mA. Power supplies with appropriate current capacity should be used.

Current consumption (DC)

The current consumption at 24 V DC is 400 mA. Operation on direct current ensures quieter device performance.

Universal application

Thanks to its symmetrical design, the electric strike is perfect for various types of left and right doors (wooden, metal, PVC).

Latch lock

The XS24U model does not have a mechanical latch lock (no permanent unlock function without power).

Memory function

No memory function. The strike releases the lock only during the electrical impulse.

Operating mode (NC)

Normally Closed (NC). This means that in the absence of power, the electric strike locks the entrance.

Clearance adjustment

Integrated adjustment in the range of 3.5 mm allows for precise setting of the contact point with the main lock bolt.

Mechanical strength

The permissible door load acting directly on the strike is 3000 N, which guarantees high resistance to forced entry attempts.

Continuous operation time

The device is not designed for continuous operation under voltage. It requires impulse control.

Coil resistance

The coil resistance is 60 Ohm, which translates into stable operation in the dedicated 24V voltage range.

Durability and cycles

High-quality workmanship guarantees trouble-free operation for a minimum of 200,000 opening and closing cycles.

Radial design

The radial shape of the strike ensures that it does not extend beyond the housing during opening, which facilitates installation in the door frame.

Dimensions and profile

Width: 16.2 mm, Height: 67 mm, Depth: 28 mm. Narrow profile dedicated to modern door joinery.

Interface and Control

The XS24U device is an actuator component and does not have built-in firmware. However, it works with a wide range of access control systems, GSM controllers, RFID readers, and video intercom systems. The control logic is based on providing an electrical impulse, which allows for integration with any mobile application supporting a given access controller (e.g., Tuya Smart, eWeLink, or dedicated systems like Roger), enabling remote door opening, creating access schedules, and monitoring the entrance status in real-time.

Contents

1x XS24U Hartte BIRA Electric Strike

1x Installation and operation manual

Dimensions, Weight

Product dimensions: 28 x 16 x 67 mm (D x W x H)

Packaging dimensions: 28 x 35 x 97 mm (D x W x H)

Product weight: 136 g

Weight with packaging: 140 g
