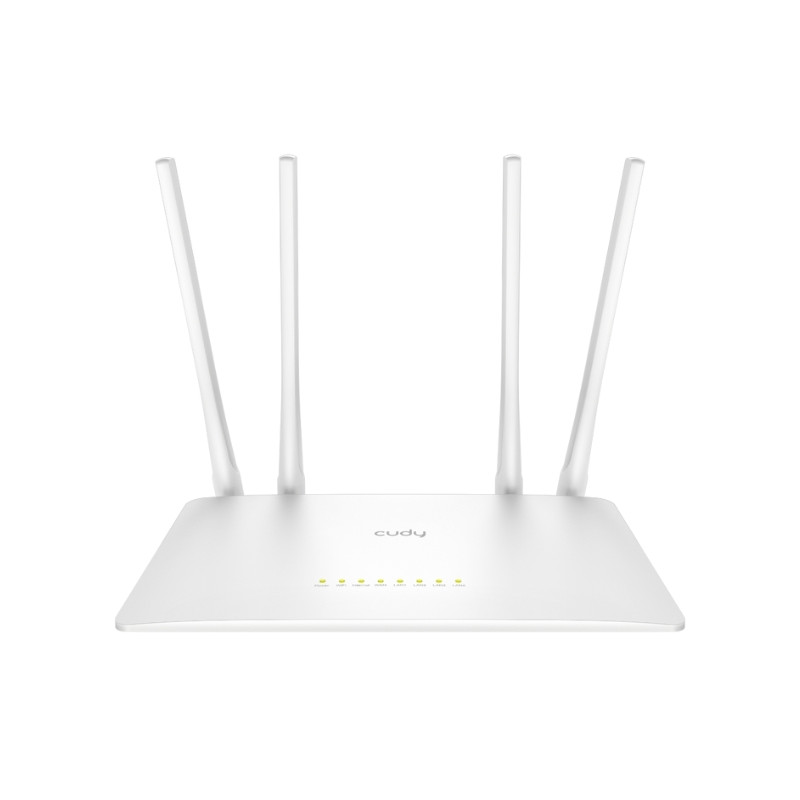

Wi-Fi 5 AC1200 Dual-Band Router 2.4GHz 5GHz 1200Mbps 4 Antennas WAN LAN AP WISP Range Extender Stable Coverage

Model: CUDY WR1200

EAN: 6931240074534 SKU: 931074533

• Wi-Fi 5 (802.11ac) standard for high performance
• Dual-band operation: 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps)
• Four integrated high-gain omnidirectional antennas
• Multifunctionality: Router, AP, Range Extender, and WISP modes
• Secure connection via WPS (Wi-Fi Protected Setup)
• Built-in DHCP server for automatic IP address configuration
• Support for dynamic and static IP addresses and PPPoE protocol
• Compact dimensions and modern design suitable for any interior

Description

The WR1200 router is a modern and efficient networking device operating on the Wi-Fi 5 (802.11ac) standard, designed to provide fast and stable Internet access in homes and small offices. Thanks to Dual-Band technology, the device operates simultaneously in two bands: 2.4 GHz with speeds up to 300 Mbps and 5 GHz with speeds up to 867 Mbps, providing a total throughput of 1200 Mbps. The 2.4 GHz band is ideal for everyday tasks such as browsing websites, checking email, or using social media, while the 5 GHz band offers significantly higher performance, necessary for smooth 4K video streaming, lag-free online gaming, and fast downloading of large files.

A key advantage of the router is its four integrated high-gain omnidirectional antennas, which significantly improve signal coverage, allowing for stable network coverage even in larger apartments and eliminating so-called dead zones. The device is exceptionally versatile, offering four operating modes: classic router, Access Point, Range Extender, and WISP mode, allowing for perfect adaptation to user needs and existing infrastructure. Additionally, the router is equipped with a WPS button, which enables instant and secure pairing of new devices without the need to enter passwords. A solid construction and an intuitive management system make the WR1200 a reliable solution for anyone who values comfort in work and entertainment on the network without any compromises.

Specification

Wireless standards

The device supports modern IEEE 802.11ac/n/a standards for the 5 GHz band and IEEE 802.11n/b/g for the 2.4 GHz band, ensuring compatibility with all Wi-Fi devices.

Operating frequency

The router operates in Dual-Band mode, simultaneously supporting 2.4 GHz and 5 GHz frequencies, which allows for network traffic optimization and interference avoidance.

Transmission speed

The maximum total speed is 1200 Mbps, with 300 Mbps for the 2.4 GHz band and 867 Mbps for the 5 GHz band, enabling work with demanding applications.

Antennas

Equipped with 4 integrated high-gain omnidirectional antennas that ensure wide signal coverage and connection stability throughout the building.

LAN cable interfaces

Features 4 RJ-45 LAN ports with 10/100 Mbps speed, used for wired connection of computers, consoles, Smart TVs, or other network devices.

WAN interface

1 RJ-45 WAN port with 10/100 Mbps speed, designed for connecting an Internet source (cable modem, fiber optic, or network wall jack).

Operating modes

The device can operate as a standard Router, Access Point (AP), Range Extender to increase the reach of an existing network, and in WISP mode.

Management and configuration

Management is performed via an intuitive interface available in a web browser (Web Server) or using a dedicated mobile application for Android and iOS systems.

Security features

Support for WPA/WPA2 encryption and the WPS (Wi-Fi Protected Setup) function, which allows for quick establishment of a secure, encrypted connection with a single button.

WAN network features

Support for various WAN connection types: Static IP, Dynamic IP, and the PPPoE protocol used by many Internet service providers.

DHCP server

The built-in DHCP server enables automatic assignment of IP addresses to all devices connected to the local network, which simplifies the configuration of home infrastructure.

Physical buttons

The housing features dedicated buttons: RESET (for restoring factory settings) and WPS (for quick pairing of wireless devices).

Power supply

The device is powered by 12 V DC. The set includes a dedicated power adapter with 1 A current capacity, ensuring stable router operation.

Software and application

The CUDY WR1200 router software offers a clear and modern administrative panel that allows for full customization of network settings. The user can easily configure network names (SSID), passwords, control device access, and manage transmission bands. The dedicated mobile application allows for remote monitoring of network status and quick changes to key parameters from anywhere in the home. The system supports advanced routing functions and is optimized for stability, which minimizes the need to restart the device even under heavy load from many simultaneous connections.

Physical parameters

Housing made of high-quality white plastic. The device dimensions are 204 x 137 x 38 mm, and its weight is only 270 grams, which facilitates installation in any location.

Warranty and certificates

The product has full CE certification, confirming compliance with European standards. The manufacturer provides a 2-year warranty period for the proper operation of the device.

Contents

1x WR1200 Router

1x 12V/1A power adapter

1x RJ-45 Ethernet cable

1x Quick start guide

Dimensions, Weight

Product dimensions: 38 x 204 x 137 mm (D x W x H)

Package dimensions: 65 x 290 x 250 mm (D x W x H)

Product weight: 270 g

Weight with packaging: 631 g
