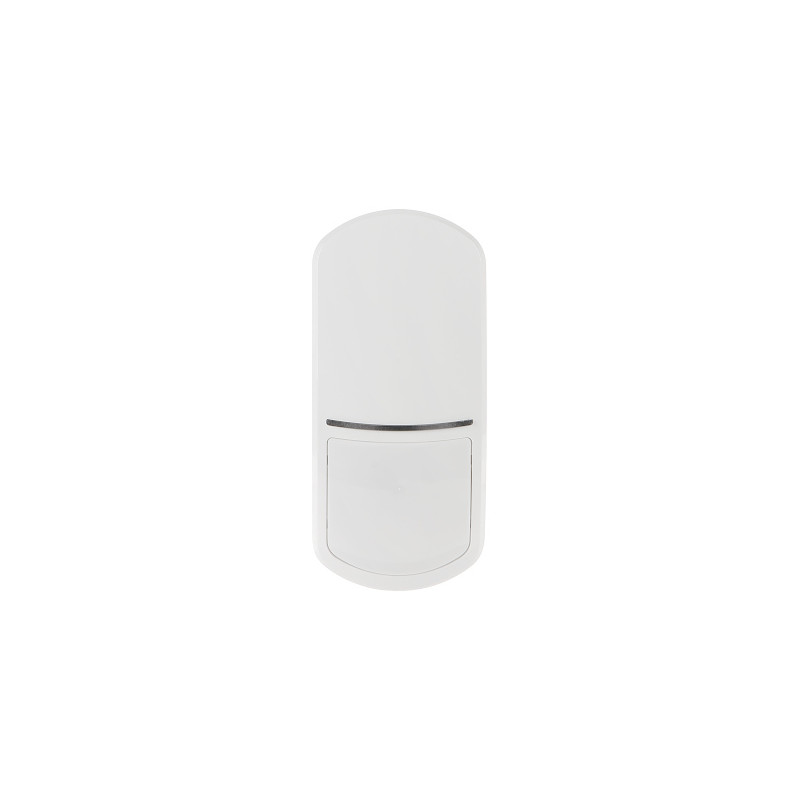

Digital PIR Motion Detector with LED Lighting Grade 2 White Home Alarm System SATEL SLIM-PIR-LUNA
zł167.56
Tax included
SLIM-PIR-LUNA is an advanced digital motion detector using passive infrared (PIR), which stands out from the competition with its unique LED lighting function. The device is designed for modern alarm systems, offering not only the highest level of security confirmed by Grade 2 certification but also additional utility functionality. Thanks to the built-in white LEDs, the detector can serve as corridor or emergency lighting, which is extremely practical in everyday home or office use.
The main advantage of the device is its operational precision. The use of a modern digital motion detection algorithm and a dual pyroelement minimizes the risk of false alarms, even in difficult environmental conditions. Digital temperature compensation ensures that the detector automatically adjusts its sensitivity to the ambient temperature, which guarantees stable operation throughout the year. This is crucial in rooms where the temperature can change rapidly.
Another advantage is the possibility of personalization. The user can remotely change the color of the LED indicator, choosing from seven available colors, which allows the device to be matched to the interior design or specific system requirements. Additionally, the detector has built-in parametric resistors (2EOL), which significantly speeds up the installation and connection process to the alarm control panel, eliminating the need for external resistors.
Physical security of the device is ensured by advanced tamper protection. The detector reacts immediately to any attempt to open the housing or detach it from the surface. The elegant, slim housing made of high-quality plastic makes the device discreetly blend into any room without disturbing its aesthetics. It is an ideal solution for those looking for reliability, modern design, and innovative features in one device that increases the comfort of household members.
Digital PIR Motion Detector with LED Lighting Grade 2 White Home Alarm System
Model: SATEL SLIM-PIR-LUNA
EAN: 6931240076736 SKU: 931076731
- Digital passive infrared (PIR) motion detection
- Integrated LED lighting with white diodes
- Compliance with the rigorous EN 50131-2-2 Grade 2 standard
- 7 selectable LED indicator colors
- Remote parameter configuration via OPT-1 remote control
- Built-in 2EOL parametric resistors for easy installation
- Advanced digital temperature compensation
- Full tamper protection (opening and detachment)
- Wide 90-degree viewing angle and range up to 24 meters
Description
SLIM-PIR-LUNA is an advanced digital motion detector using passive infrared (PIR), which stands out from the competition with its unique LED lighting function. The device is designed for modern alarm systems, offering not only the highest level of security confirmed by Grade 2 certification but also additional utility functionality. Thanks to the built-in white LEDs, the detector can serve as corridor or emergency lighting, which is extremely practical in everyday home or office use.
The main advantage of the device is its operational precision. The use of a modern digital motion detection algorithm and a dual pyroelement minimizes the risk of false alarms, even in difficult environmental conditions. Digital temperature compensation ensures that the detector automatically adjusts its sensitivity to the ambient temperature, which guarantees stable operation throughout the year. This is crucial in rooms where the temperature can change rapidly.
Another advantage is the possibility of personalization. The user can remotely change the color of the LED indicator, choosing from seven available colors, which allows the device to be matched to the interior design or specific system requirements. Additionally, the detector has built-in parametric resistors (2EOL), which significantly speeds up the installation and connection process to the alarm control panel, eliminating the need for external resistors.
Physical security of the device is ensured by advanced tamper protection. The detector reacts immediately to any attempt to open the housing or detach it from the surface. The elegant, slim housing made of high-quality plastic makes the device discreetly blend into any room without disturbing its aesthetics. It is an ideal solution for those looking for reliability, modern design, and innovative features in one device that increases the comfort of household members.
Specification
Application
Indoor
Detection method
Passive infrared (PIR) with dual pyroelement
Detection range
20 m x 24 m, 90° viewing angle
Sensitivity adjustment
Possibility to set 1 of 16 detection sensitivity levels
Lighting function
Realized using efficient white LEDs
Optical signaling
LED indicator with 7 selectable colors (remotely controlled)
Power supply
12 V DC / 97 mA (maximum current consumption)
Alarm outputs
Maximum output load: 40 mA / 24 V DC
Parametric resistors
Built-in 2EOL resistors: 2 x 1.1kΩ, 2 x 4.7 kΩ, 2 x 5.6 kΩ
Tamper protection
Optical protection reacting to housing opening and wall detachment
Temperature compensation
Full digital ambient temperature compensation
Movement speed
Detectable object movement speed: 0.3 ... 3 m/s
Operating temperature
-10 °C ... 55 °C
Safety standards
Compliance with EN 50131-2-2 @ Grade 2 standard
Configuration and Software
The device features advanced internal software based on digital signal processing, which allows for precise differentiation between an intruder and environmental interference. The system allows for remote configuration of operating parameters without the need for physical access to the interior of the detector, which is possible using the optional OPT-1 infrared remote control. The user can programmatically change the detection sensitivity, LED lighting operating mode, and alarm indicator color. The signal analysis algorithm is optimized for stability, which, combined with digital temperature compensation, ensures reliability in all conditions. The software also manages the LUNA function, allowing the detector to be used as an element of intelligent building lighting that reacts to the presence of people in the room regardless of the alarm system's armed state.
Contents
1x SLIM-PIR-LUNA PIR detector
1x User and installation manual
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 42 x 62 x 137 mm (D x W x H)
Package dimensions: 55 x 65 x 185 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 168 g
