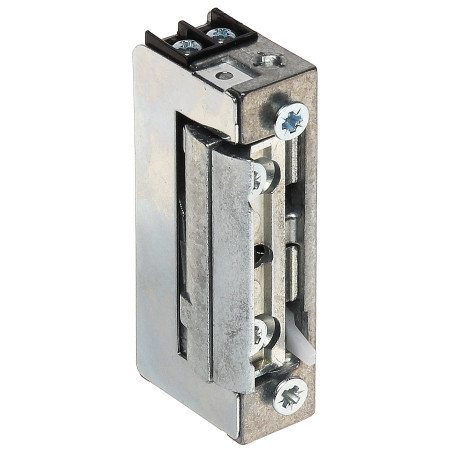

Electric strike for left and right doors and gates with latch lock bolt for gate 10V AC DC Delta R5-12.20
zł141.81
Tax included
An electric strike is a key component of access control systems, providing security and convenience in single-family homes, offices, and public utility facilities. This model is characterized by exceptional versatility, as it is adapted for installation in both left and right doors. Thanks to its solid construction and high resistance to pressure of up to 3000 N, the device guarantees long-term and trouble-free operation even in difficult operating conditions.
One of the most important advantages of this model is the built-in latch lock, which allows for permanent release of the bolt, which is extremely useful in places with high traffic during specific hours. The strike works with a wide range of latch and latch-bolt locks, making it an ideal solution for upgrading existing systems. The device can be powered by direct current (DC) or alternating current (AC) with a voltage of 10V, which provides flexibility when designing the electrical installation.
Precise clearance adjustment allows for a perfect fit of the strike to the door leaf, eliminating annoying vibrations and ensuring smooth closing. The product is made of high-quality materials, which is confirmed by the manufacturer's 2-year warranty. By choosing this strike, you are investing in a proven solution that combines functionality, durability, and ease of installation. It works perfectly in combination with intercoms, video intercoms, and keypads, creating a complete and secure entry system. Additionally, low weight and compact dimensions facilitate installation in narrow profiles and door frames. This is a product dedicated to professionals and individual users who value the reliability and durability of actuator elements.
Electric strike for left and right doors and gates with latch lock bolt for gate 10V AC DC
Model: Delta R5-12.20
EAN: 6931240025291 SKU: 931025294
- Universal design (left / right doors)
- Built-in latch lock (possibility of permanent opening)
- Latch bolt clearance adjustment
- High mechanical strength up to 3000 N
- AC or DC power supply
- Designed for metal profiles
- Compatible with latch and latch-bolt locks
Description
An electric strike is a key component of access control systems, providing security and convenience in single-family homes, offices, and public utility facilities. This model is characterized by exceptional versatility, as it is adapted for installation in both left and right doors. Thanks to its solid construction and high resistance to pressure of up to 3000 N, the device guarantees long-term and trouble-free operation even in difficult operating conditions.
One of the most important advantages of this model is the built-in latch lock, which allows for permanent release of the bolt, which is extremely useful in places with high traffic during specific hours. The strike works with a wide range of latch and latch-bolt locks, making it an ideal solution for upgrading existing systems. The device can be powered by direct current (DC) or alternating current (AC) with a voltage of 10V, which provides flexibility when designing the electrical installation.
Precise clearance adjustment allows for a perfect fit of the strike to the door leaf, eliminating annoying vibrations and ensuring smooth closing. The product is made of high-quality materials, which is confirmed by the manufacturer's 2-year warranty. By choosing this strike, you are investing in a proven solution that combines functionality, durability, and ease of installation. It works perfectly in combination with intercoms, video intercoms, and keypads, creating a complete and secure entry system. Additionally, low weight and compact dimensions facilitate installation in narrow profiles and door frames. This is a product dedicated to professionals and individual users who value the reliability and durability of actuator elements.
Specification
Rated voltage
10 V ± 2 V AC/DC - the device operates stably within the specified voltage range, which allows for compatibility with most standard intercom power supplies.
Current consumption
500 mA for alternating current (AC) and 600 mA for direct current (DC) - low energy demand allows for the use of long power cables without significant voltage drops.
Application
Universal, symmetrical design, enabling installation in right and left doors without the need for device modification.
Latch lock
Yes - equipped with a mechanical switch (slider) that allows for permanent unlocking of the bolt. This function is ideal for offices or shops where doors are to be generally accessible during opening hours.
Memory function
None - the bolt returns to the closed state immediately after the electrical impulse ceases, which increases the security of the facility.
Reversible operation
None - NC (Normally Closed) type device. In the de-energized state, the door is locked; opening occurs after applying power.
Clearance adjustment
Yes - the strike tongue has the ability to be adjusted within a range of a few millimeters, which allows for precise setting of the door pressure against the seal.
Permissible door pressure during latch release
30 N (approx. 3 kg) - maximum pressure force on the door at which the bolt is able to operate correctly and release the lock.
Permissible door load acting on the strike
3000 N (approx. 300 kg) - high mechanical strength guaranteeing resistance to forced entry attempts.
Permissible continuous operation time
30 minutes - the bolt is not adapted for continuous operation under voltage; exceeding this time may result in overheating of the coil.
Weight
130 grams - lightweight construction does not burden the door frame and facilitates installation.
Dimensions
18 mm width, 32 mm depth, 68 mm height - compact dimensions facilitate installation in aluminum and steel profiles.
Warranty
2 years (24 months) provided by the manufacturer's authorized service.
Material
High-quality metal alloy resistant to corrosion and mechanical wear, ensuring product longevity.
Bolt type
Symmetrical electric strike designed for doors and gates made of metal profiles.
Contents
1x Electric strike R5-12.20
Dimensions, Weight
Product dimensions: 32 x 18 x 68 mm (D x W x H)
Package dimensions: 25 x 35 x 75 mm (D x W x H)
Product weight: 130 g
Weight with packaging: 138 g
