- New

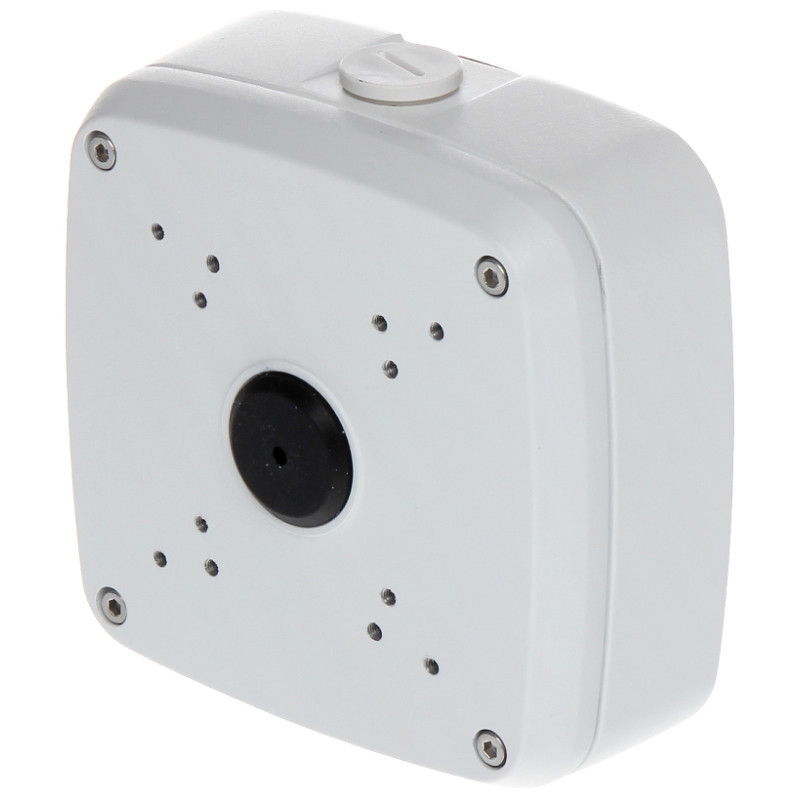

Wall mount junction box for outdoor surveillance cameras white aluminum DAHUA PFA121-V2
zł178.62
Tax included
The PFA121-V2 wall mount is a professional and reliable mounting solution designed by the renowned company Dahua for the most demanding CCTV systems. The main task of this accessory is to ensure stable and aesthetic camera mounting while protecting key installation components. The integrated junction box is a key advantage of this model, allowing for the complete concealment of cable connectors, excess wiring, and smaller power supplies inside. Thanks to this solution, the entire installation gains a professional look, and sensitive contact points are protected against the harmful effects of weather conditions such as rain, snow, or moisture, which significantly extends the trouble-free operation of the system.
The mount construction is made of high-quality aluminum alloy, which guarantees exceptional resistance to corrosion and mechanical damage. This is particularly important for outdoor installations where equipment is exposed to variable temperatures and acts of vandalism. The aluminum housing is lightweight yet extremely rigid, which minimizes vibrations transmitted to the camera, ensuring a stable and clear image even in difficult weather conditions. The aesthetic white finish (RAL 9003) allows the mount to blend discreetly into the architecture of modern buildings, offices, or warehouses.
Installation of the PFA121-V2 mount is intuitive and fast, which every installer will appreciate. The distance from the mounting surface of 55 mm provides an optimal amount of space for free cable routing without the risk of kinking. The mount is compatible with a wide range of Bullet and Dome cameras, making it a universal tool in the hands of a professional. Additionally, the product comes with a 3-year warranty, which confirms its high quality of workmanship and durability. By choosing this model, you gain the certainty that your camera will be mounted solidly, safely, and aesthetically, meeting the highest industry standards.
Wall mount junction box for outdoor surveillance cameras white aluminum
Model: DAHUA PFA121-V2
EAN: 6931240088159 SKU: 931088159
- Made of durable aluminum alloy
- Integrated junction box for cables, connectors, and power supply
- Full resistance to harsh weather conditions
- Aesthetic white color matching the facade
- Easy installation thanks to the included template
- Compatibility with a wide range of Dahua cameras
- 55 mm mounting distance for easy installation
- 3-year manufacturer warranty
Description
The PFA121-V2 wall mount is a professional and reliable mounting solution designed by the renowned company Dahua for the most demanding CCTV systems. The main task of this accessory is to ensure stable and aesthetic camera mounting while protecting key installation components. The integrated junction box is a key advantage of this model, allowing for the complete concealment of cable connectors, excess wiring, and smaller power supplies inside. Thanks to this solution, the entire installation gains a professional look, and sensitive contact points are protected against the harmful effects of weather conditions such as rain, snow, or moisture, which significantly extends the trouble-free operation of the system.
The mount construction is made of high-quality aluminum alloy, which guarantees exceptional resistance to corrosion and mechanical damage. This is particularly important for outdoor installations where equipment is exposed to variable temperatures and acts of vandalism. The aluminum housing is lightweight yet extremely rigid, which minimizes vibrations transmitted to the camera, ensuring a stable and clear image even in difficult weather conditions. The aesthetic white finish (RAL 9003) allows the mount to blend discreetly into the architecture of modern buildings, offices, or warehouses.
Installation of the PFA121-V2 mount is intuitive and fast, which every installer will appreciate. The distance from the mounting surface of 55 mm provides an optimal amount of space for free cable routing without the risk of kinking. The mount is compatible with a wide range of Bullet and Dome cameras, making it a universal tool in the hands of a professional. Additionally, the product comes with a 3-year warranty, which confirms its high quality of workmanship and durability. By choosing this model, you gain the certainty that your camera will be mounted solidly, safely, and aesthetically, meeting the highest industry standards.
Specification
Device type
Professional wall mount integrated with a junction box for CCTV cameras
Manufacturer
Dahua Technology - global leader in video surveillance solutions
Model
PFA121-V2 - improved version of the popular mounting bracket
Material
Die-cast high-quality aluminum alloy (AL-ADC12) with high resistance
Color
White (RAL 9003), powder-coated with UV-resistant paint
Load capacity
Safe working load up to 3.0 kg (6.61 lb) for vertical mounting
Mounting distance
55 mm (2.17") providing sufficient space for connectors and power supply
External dimensions
134 mm x 134 mm x 55 mm (5.28" x 5.28" x 2.17")
Device weight
640 grams (0.64 kg) - solid and massive aluminum construction
Pipe thread
Standard G3/4" thread allowing for the installation of IP68 cable glands
Operating temperature
Adapted for extreme conditions from -40°C to +60°C (-40°F to +140°F)
Ambient humidity
Full functionality at relative humidity from 0% to 90% RH
Application
Designed for outdoor and indoor mounting of Bullet and Dome cameras
Compatibility
Full compatibility with selected Dahua camera series (detailed list available in technical documentation)
Warranty
Extended warranty protection of 36 months (3 years) from the date of purchase
Contents
1x PFA121-V2 wall mount
1x Set of wall mounting screws
1x Set of screws for attaching the camera
1x Allen key
1x Mounting template for easy hole drilling
Dimensions, Weight
Product dimensions: 55 x 134 x 134 mm (D x W x H)
Package dimensions: 65 x 145 x 145 mm (D x W x H)
Product weight: 640 g
Weight with packaging: 650 g
