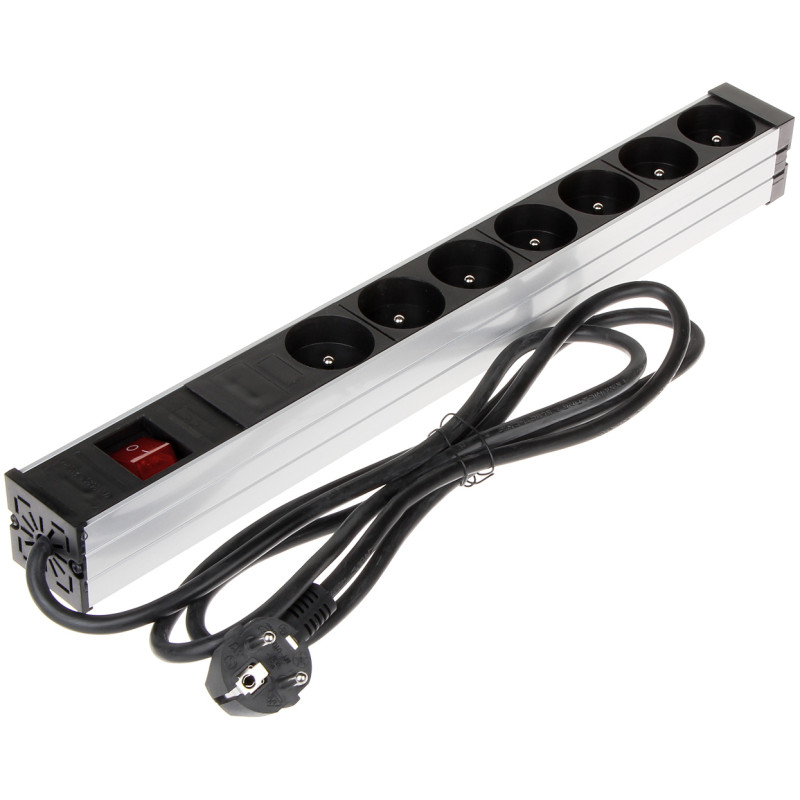

Power strip for 19 inch Rack cabinet 1U 7 sockets with switch 2m cable black PDU power distribution Delta PD-7K/RACK
zł148.60
Tax included
The PD-7K/RACK power strip is a professional solution dedicated to installation in standard 19-inch RACK telecommunications and server cabinets. The device is characterized by exceptional build quality and functionality that will meet the needs of even the most demanding installers of CCTV monitoring systems, computer networks, and audio-video systems. The main advantage of the product is that it is equipped with seven high-quality CEE 7/5 power sockets (with grounding pin), which allows for the safe connection of multiple devices simultaneously.
A key structural element is the metal mounting brackets. Thanks to their innovative design, they allow for the installation of the strip at any angle with a precise 30-degree increment. This provides enormous flexibility in managing cabling inside the cabinet, enabling both vertical and horizontal mounting, depending on available space and hardware configuration. The strip occupies 1U of height, which optimizes space usage in the cabinet.
Operational safety is ensured by a built-in, illuminated switch that allows for quick power cutoff to all connected receivers without the need to pull the plug from the wall socket. The strip is designed to work under high loads – its maximum current is up to 16A, which translates to a total receiver power of 3680W. A solid 2-meter power cord provides freedom in routing power to the cabinet. The use of a metal housing guarantees high resistance to mechanical damage and thermal stability during operation under full load. The aesthetic black finish makes the strip blend perfectly with most server cabinets available on the market. It is an essential element of every professional telecommunications installation, ensuring order in power supply and easy access to power consumption points.
Power strip for 19 inch Rack cabinet 1U 7 sockets with switch 2m cable black PDU power distribution
Model: Delta PD-7K/RACK
EAN: 6931240091760 SKU: 931091764
- 7 CEE 7/5 power sockets with grounding
- 19-inch RACK mounting standard with 1U height
- Innovative metal brackets with mounting angle adjustment every 30 degrees
- Illuminated double-pole power switch
- High-quality 2-meter power cord
- Maximum load up to 3680W (16A)
- Solid housing resistant to mechanical damage
- Vertical or horizontal mounting possible
Description
The PD-7K/RACK power strip is a professional solution dedicated to installation in standard 19-inch RACK telecommunications and server cabinets. The device is characterized by exceptional build quality and functionality that will meet the needs of even the most demanding installers of CCTV monitoring systems, computer networks, and audio-video systems. The main advantage of the product is that it is equipped with seven high-quality CEE 7/5 power sockets (with grounding pin), which allows for the safe connection of multiple devices simultaneously.
A key structural element is the metal mounting brackets. Thanks to their innovative design, they allow for the installation of the strip at any angle with a precise 30-degree increment. This provides enormous flexibility in managing cabling inside the cabinet, enabling both vertical and horizontal mounting, depending on available space and hardware configuration. The strip occupies 1U of height, which optimizes space usage in the cabinet.
Operational safety is ensured by a built-in, illuminated switch that allows for quick power cutoff to all connected receivers without the need to pull the plug from the wall socket. The strip is designed to work under high loads – its maximum current is up to 16A, which translates to a total receiver power of 3680W. A solid 2-meter power cord provides freedom in routing power to the cabinet. The use of a metal housing guarantees high resistance to mechanical damage and thermal stability during operation under full load. The aesthetic black finish makes the strip blend perfectly with most server cabinets available on the market. It is an essential element of every professional telecommunications installation, ensuring order in power supply and easy access to power consumption points.
Specification
Mounting standard
Compliant with the 19-inch RACK standard, which ensures full compatibility with most server and telecommunications cabinets available on the market.
Working height
1U - the strip occupies a minimal amount of space in the cabinet, allowing for efficient use of mounting space.
Number of output sockets
7 units of CEE 7/5 type (standard with grounding pin), arranged to facilitate the connection of angled plugs.
Rated voltage
230 V AC / 50 Hz - standard alternating current parameters ensuring stable operation of connected electronic devices.
Maximum total current
16 A - high current capacity enabling safe power supply for advanced IT and monitoring systems.
Maximum load
3680 W - the total power of all connected receivers can be nearly 3.7 kW, which is sufficient for extensive hardware sets.
Power cable length
2 meters - optimal length allowing for free routing of power from the main socket to the inside of the Rack cabinet.
Housing type
Durable construction made of metal and high-quality black plastic, ensuring longevity.
Power switch
Integrated double-pole switch with a built-in red light indicator informing about the presence of voltage in the sockets.
Mounting system
Metal side brackets with a unique angle adjustment function every 30 degrees, allowing for mounting at any slant.
Mounting orientation
Possibility of installation in horizontal orientation (standard on 19" rails) or vertical, depending on installation needs.
Protections
The design provides basic protection and grounding for all connected Class I devices.
External dimensions
Width 450 mm (without mounting ears), height 45 mm, depth 44 mm - compact dimensions facilitating installation.
Mass and logistics
The net weight of the device is 0.35 kg, while the gross weight in the transport packaging is 0.797 kg.
Manufacturer warranty
The product is covered by a full 2-year warranty, which proves the high reliability of the components used for production.
Contents
1x PD-7K/RACK power strip
1x Set of metal mounting brackets
1x Set of screws and cage nuts for RACK cabinet
1x User manual
Dimensions, Weight
Product dimensions: 44 x 450 x 45 mm (D x W x H)
Packaging dimensions: 55 x 525 x 75 mm (D x W x H)
Product weight: 350 g
Weight with packaging: 797 g
