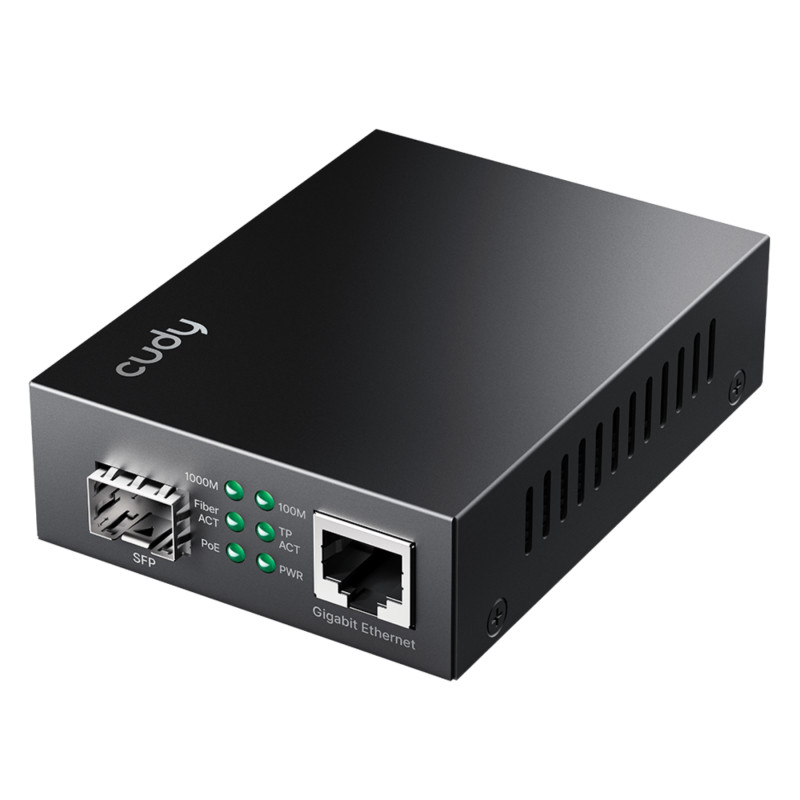

Gigabit Ethernet RJ45 to SFP Media Converter with 30W PoE+ Power CUDY MC220P
zł174.66
Tax included
The CUDY MC220P Gigabit media converter is an advanced network device designed for professional IP monitoring systems and extensive LAN network structures. The primary task of this device is the seamless conversion of electrical signals transmitted via traditional twisted-pair cables into optical signals, which allows for data transmission over distances significantly exceeding the standard 100-meter copper limitation.
One of the key advantages of the MC220P model is the integrated PoE+ (Power over Ethernet) function compliant with IEEE 802.3af and IEEE 802.3at standards. Thanks to this, the converter can deliver up to 30W of power directly to the connected end device, such as a modern IP camera, VoIP phone, or Wi-Fi access point. This eliminates the need for additional power cabling, which significantly reduces installation costs and simplifies system architecture.
The device is equipped with a universal SFP slot supporting speeds up to 1.25 Gbps. This allows the installer full freedom in selecting the appropriate fiber optic module (SFP mini-GBIC), matched to the specific type of fiber (single-mode or multi-mode) and the required transmission range. A solid metal housing ensures excellent heat dissipation, which translates into stable operation even in more difficult environmental conditions.
Product advantages:
- Full support for the Gigabit Ethernet standard on both ports.
- Efficient PoE+ power supply with up to 30W, ideal for PTZ cameras and powerful Access Points.
- Flexibility thanks to interchangeable SFP modules.
- Hot-Swap function allowing module replacement without turning off the power.
- Intuitive diagnostics thanks to a set of LED indicators (Power, Link/Act, PoE).
- Compact dimensions facilitating mounting in boxes and rack cabinets.
- High reliability confirmed by a 2-year manufacturer warranty.
Gigabit Ethernet RJ45 to SFP Media Converter with 30W PoE+ Power
Model: CUDY MC220P
EAN: 6931240062906 SKU: 931062909
- Gigabit Ethernet to fiber optic signal conversion
- Built-in PoE+ port with up to 30W power
- Support for IEEE 802.3af/at standards
- SFP slot compatible with 1.25G modules
- Hot-Swap function for optical modules
- High-durability metal housing
- 10/100/1000 Mbps speed auto-negotiation
- LED indicator set for operational diagnostics
Description
The CUDY MC220P Gigabit media converter is an advanced network device designed for professional IP monitoring systems and extensive LAN network structures. The primary task of this device is the seamless conversion of electrical signals transmitted via traditional twisted-pair cables into optical signals, which allows for data transmission over distances significantly exceeding the standard 100-meter copper limitation.
One of the key advantages of the MC220P model is the integrated PoE+ (Power over Ethernet) function compliant with IEEE 802.3af and IEEE 802.3at standards. Thanks to this, the converter can deliver up to 30W of power directly to the connected end device, such as a modern IP camera, VoIP phone, or Wi-Fi access point. This eliminates the need for additional power cabling, which significantly reduces installation costs and simplifies system architecture.
The device is equipped with a universal SFP slot supporting speeds up to 1.25 Gbps. This allows the installer full freedom in selecting the appropriate fiber optic module (SFP mini-GBIC), matched to the specific type of fiber (single-mode or multi-mode) and the required transmission range. A solid metal housing ensures excellent heat dissipation, which translates into stable operation even in more difficult environmental conditions.
Product advantages:
- Full support for the Gigabit Ethernet standard on both ports.
- Efficient PoE+ power supply with up to 30W, ideal for PTZ cameras and powerful Access Points.
- Flexibility thanks to interchangeable SFP modules.
- Hot-Swap function allowing module replacement without turning off the power.
- Intuitive diagnostics thanks to a set of LED indicators (Power, Link/Act, PoE).
- Compact dimensions facilitating mounting in boxes and rack cabinets.
- High reliability confirmed by a 2-year manufacturer warranty.
Specification
Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az (Energy Efficient Ethernet)
LAN Ports
1x SFP Port (1.25G), 1x RJ-45 10/100/1000 Mbps Port with PoE+ support
Transmission Speed
10/100/1000 Mbps auto-negotiation for copper port, fixed 1000 Mbps for optical port
PoE Power Supply
IEEE 802.3at/af standard, maximum output power up to 30W per port, power pins 1/2(+) and 3/6(-)
Transmission Distance
Up to 100m via Cat 5e/6 twisted pair, fiber optic distance depends on the used SFP module
LED Indicators
Power, Link/Act (connection activity), FDX (duplex mode), PoE (external power status)
Advanced Features
Hot Swap (SFP module replacement during operation), Auto MDI/MDI-X on RJ45 port, Store-and-Forward
Device Power Supply
54V DC / 0.66A (external power adapter included)
Operating Conditions
Temperature from 0°C to 50°C, humidity 10% - 90% (non-condensing)
Housing
Metal, providing shielding and passive cooling
Application
IP monitoring, backbone networks, distributed systems, PTZ camera power supply
Compliance
CE, FCC, RoHS
Interface and Software
Plug & Play device, does not require complex software configuration. Built-in hardware mechanisms automatically detect the type of connected device (Auto-detection) and negotiate the highest available transmission speed. The PoE power management system intelligently monitors power consumption by the end device, protecting against overload. The physical interface based on LED indicators allows for immediate verification of the fiber optic link status and PoE power status without the need for additional diagnostic tools. Support for the IEEE 802.3az standard allows for a reduction in energy consumption during periods of low network traffic.
Warranty
24 months (2 years)
Contents
1x MC220P Media Converter
1x 54V DC Power Adapter
1x User Manual
Dimensions, Weight
Product dimensions: 71 x 95 x 27 mm (D x W x H)
Package dimensions: 130 x 190 x 60 mm (D x W x H)
Product weight: 148 g
Weight with packaging: 430 g
