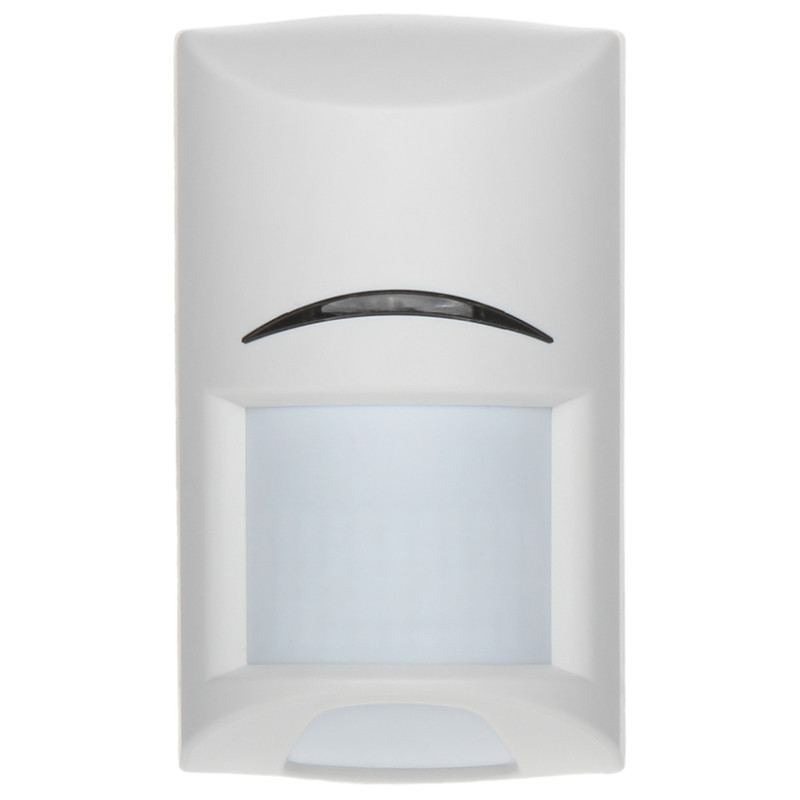

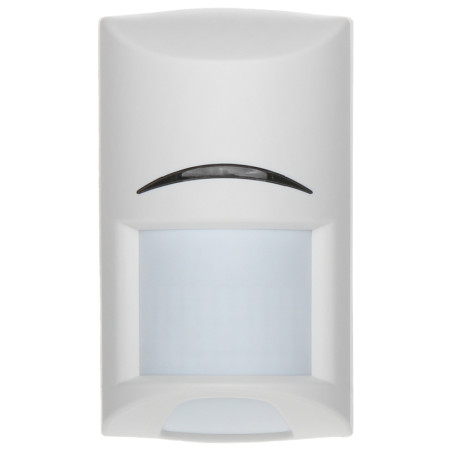

Digital passive infrared PIR motion detector, pet immune up to 20kg, 12x12m range, indoor, alarm BOSCH ISC-BPR2-WP12
zł147.29
Tax included
The Bosch ISC-BPR2-WP12 PIR detector is an advanced detection device that serves as the foundation for modern security systems. By utilizing innovative passive infrared technology, this detector offers unparalleled precision in motion detection while eliminating the risk of false alarms. It is a solution dedicated to residential and commercial properties where reliability and discretion are priorities. One of the most important features of this model is its full immunity to pets weighing up to 20 kilograms. This means that dog or cat owners can freely use the alarm system without worrying that their pets will trigger an unnecessary alarm during their absence.
The device is equipped with a digital temperature compensation function, which is crucial for maintaining detection stability in variable thermal conditions. In situations where the room temperature approaches human body temperature, traditional detectors may lose effectiveness – the ISC-BPR2-WP12 model automatically corrects its parameters to always detect an intruder. Additionally, the dual pyroelement and advanced signal processing make the detector resistant to electromagnetic interference, sudden gusts of air, or lighting changes.
Installation of the detector is extremely simple thanks to the well-thought-out housing design, which allows for installation on both flat walls and in corners (using optional brackets). The aesthetic appearance and compact dimensions ensure the device is unobtrusive, maintaining the interior's aesthetics. By choosing Bosch products, you are opting for technology from a global leader in the security industry, which translates into peace of mind and the certainty that your property is protected by top-class equipment. This detector is also characterized by very low power consumption, which is important in large installations where every milliampere matters for the system's energy balance. Solid construction and a two-year warranty are additional advantages that speak for choosing this professional motion sensor.
Digital passive infrared PIR motion detector, pet immune up to 20kg, 12x12m range, indoor, alarm
Model: BOSCH ISC-BPR2-WP12
EAN: 6931240055243 SKU: 931055240
- Digital passive infrared (PIR) detector
- Pet immunity for animals up to 20 kg
- Wide 12 x 12 meter detection range
- Advanced digital temperature compensation
- Dual pyroelement for higher stability
- Very low current consumption (only 9 mA)
- Built-in tamper protection (Tamper contact)
- Modern Fresnel lens and aesthetic housing
Description
The Bosch ISC-BPR2-WP12 PIR detector is an advanced detection device that serves as the foundation for modern security systems. By utilizing innovative passive infrared technology, this detector offers unparalleled precision in motion detection while eliminating the risk of false alarms. It is a solution dedicated to residential and commercial properties where reliability and discretion are priorities. One of the most important features of this model is its full immunity to pets weighing up to 20 kilograms. This means that dog or cat owners can freely use the alarm system without worrying that their pets will trigger an unnecessary alarm during their absence.
The device is equipped with a digital temperature compensation function, which is crucial for maintaining detection stability in variable thermal conditions. In situations where the room temperature approaches human body temperature, traditional detectors may lose effectiveness – the ISC-BPR2-WP12 model automatically corrects its parameters to always detect an intruder. Additionally, the dual pyroelement and advanced signal processing make the detector resistant to electromagnetic interference, sudden gusts of air, or lighting changes.
Installation of the detector is extremely simple thanks to the well-thought-out housing design, which allows for installation on both flat walls and in corners (using optional brackets). The aesthetic appearance and compact dimensions ensure the device is unobtrusive, maintaining the interior's aesthetics. By choosing Bosch products, you are opting for technology from a global leader in the security industry, which translates into peace of mind and the certainty that your property is protected by top-class equipment. This detector is also characterized by very low power consumption, which is important in large installations where every milliampere matters for the system's energy balance. Solid construction and a two-year warranty are additional advantages that speak for choosing this professional motion sensor.
Specification
Application
Indoor - The device is designed for indoor installation, providing protection in standard home and office conditions.
Detection Technology
Passive Infrared (PIR) - Uses an advanced sensor that reacts to thermal radiation emitted by moving objects, allowing for precise intruder detection.
Pyroelement
Dual - The use of a dual photosensitive element significantly increases resistance to false alarms caused by sudden lighting changes or minor environmental disturbances.
Detection Range
12 x 12 meters - The wide detection angle allows for effective monitoring of large areas, such as living rooms, corridors, or open-space offices using a single device.
Pet Immunity
Up to 20 kg (Pet Friendly) - Specially designed optics and signal analysis algorithms allow for ignoring the movement of small pets, eliminating the need to lock pets away while the system is armed.
Digital Temperature Compensation
Yes - An advanced electronic circuit continuously monitors ambient temperature and automatically adjusts detection sensitivity, ensuring constant effectiveness regardless of the season or temperature inside the facility.
Signal Processing (FSP)
The firmware of the Bosch ISC-BPR2-WP12 detector is responsible for advanced analysis of signals arriving from the pyroelement. The First Step Processing (FSP) digital signal processing algorithm allows for almost instantaneous reaction to human movement while ignoring typical sources of false alarms. The system intelligently analyzes the amplitude, polarity, slope, and duration of the signal, which allows for precise differentiation between an intruder and background noise or small animal movement. Additionally, the software manages the digital temperature compensation function, dynamically adjusting sensitivity thresholds in real-time, which guarantees detection reliability in extreme thermal conditions without the need for installer intervention.
Maximum Output Load
100 mA / 25 V DC - Standard NC (Normally Closed) relay output compatible with most alarm control panels available on the market (Satel, Bosch, DSC).
Power Supply
12 V DC - The device is powered by direct current, typical for intrusion and robbery signaling systems (SSWiN).
Current Consumption
9 mA - An exceptionally energy-efficient design minimizes the load on the system power supply and significantly extends the operating time of the entire system on battery power.
Operating Temperature
-10 °C ... 55 °C - A wide temperature range guarantees reliability in various climate zones and in rooms with variable temperatures.
Tamper Protection
Tamper Contact - A built-in microswitch detects any attempt at unauthorized opening of the detector housing, sending an immediate sabotage notification to the alarm control panel.
Optics and Lens
Advanced Fresnel Lens - A high-quality optical system ensures precise detection zones and minimizes dead zones, which prevents passing under the detector without being detected.
Housing and Mounting
Made of high-quality ABS plastic, resistant to UV radiation and mechanical damage. The design allows for wall or corner mounting.
Warranty
2 years - The manufacturer provides full technical and warranty support for a period of 24 months from the date of purchase, which confirms the high quality of the product.
Contents
1x Bosch ISC-BPR2-WP12 PIR Detector
1x Set of mounting plugs and screws
1x Installation and operation manual in Polish
Dimensions, Weight
Product dimensions: 43 x 60 x 105 mm (D x W x H)
Packaging dimensions: 110 x 60 x 45 mm (D x W x H)
Product weight: 80 g
Weight with packaging: 105 g
