- New

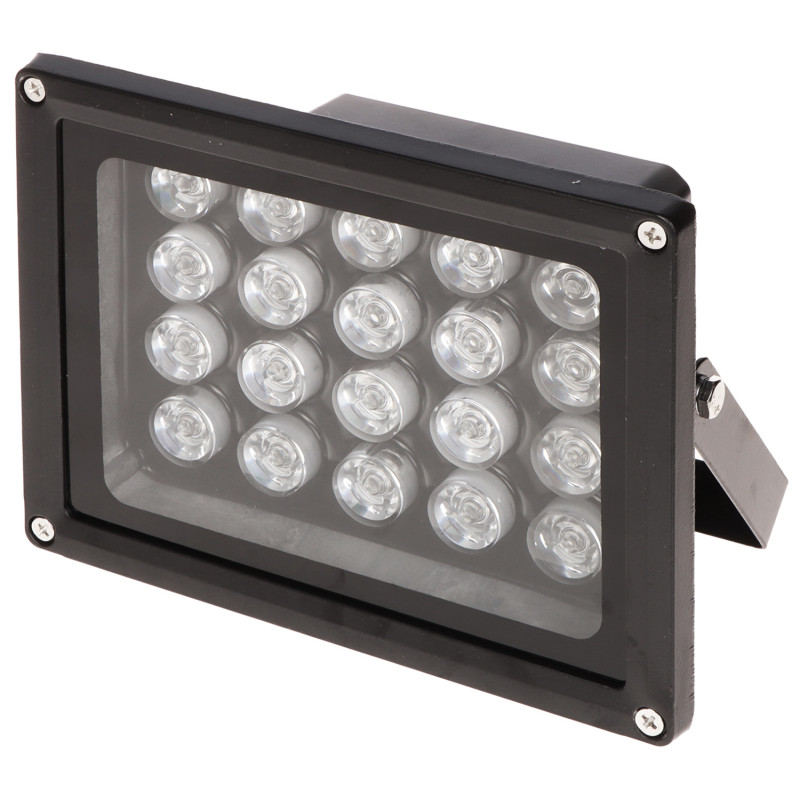

External Infrared IR Illuminator 120m 30 Degrees 850nm IP65 Aluminum Housing Delta IRL-30/120
zł163.59
Tax included
The IRL-30/120 external infrared illuminator is a professional device designed to significantly increase the visibility of video surveillance systems in conditions of total lack of external lighting. By using advanced 850 nm IR LEDs, this illuminator generates a strong infrared light beam that is almost invisible to the human eye, but perfectly captured by CCTV camera sensors operating in black and white mode.
The main advantage of the IRL-30/120 model is its impressive range of up to 120 meters, which allows for effective illumination of vast areas such as parking lots, storage yards, fence perimeters, or long driveways. The narrow 30-degree beam angle makes the illuminator ideal for lighting specific, distant points or narrow surveillance corridors, minimizing light dispersion to the sides. The device is equipped with an intelligent twilight switch that automatically activates the radiator at dusk and turns it off at dawn, which translates into energy savings and extended LED lifespan.
The solid housing made of high-quality aluminum ensures excellent heat dissipation and high resistance to mechanical damage. The IP65 ingress protection rating guarantees full protection against dust and water jets, which allows for trouble-free operation of the device in difficult weather conditions, such as heavy rain or snowstorms. The illuminator is compatible with most analog and IP cameras featuring a day/night function with a mechanical ICR filter. The aesthetic appearance and compact dimensions allow for discreet mounting on building facades or lighting poles, ensuring safety and high image quality around the clock.
External Infrared IR Illuminator 120m 30 Degrees 850nm IP65 Aluminum Housing
Model: Delta IRL-30/120
EAN: 6931240051153 SKU: 931051156
- Very long illumination range up to 120 meters
- Narrow 30-degree beam angle ideal for long distances
- Built-in automatic twilight switch
- Durable die-cast aluminum housing
- High IP65 ingress protection rating for outdoor use
- Standard 850nm wavelength compatible with most cameras
- Wide operating temperature range from -20°C to +70°C
- Easy installation thanks to an integrated adjustable bracket
Description
The IRL-30/120 external infrared illuminator is a professional device designed to significantly increase the visibility of video surveillance systems in conditions of total lack of external lighting. By using advanced 850 nm IR LEDs, this illuminator generates a strong infrared light beam that is almost invisible to the human eye, but perfectly captured by CCTV camera sensors operating in black and white mode.
The main advantage of the IRL-30/120 model is its impressive range of up to 120 meters, which allows for effective illumination of vast areas such as parking lots, storage yards, fence perimeters, or long driveways. The narrow 30-degree beam angle makes the illuminator ideal for lighting specific, distant points or narrow surveillance corridors, minimizing light dispersion to the sides. The device is equipped with an intelligent twilight switch that automatically activates the radiator at dusk and turns it off at dawn, which translates into energy savings and extended LED lifespan.
The solid housing made of high-quality aluminum ensures excellent heat dissipation and high resistance to mechanical damage. The IP65 ingress protection rating guarantees full protection against dust and water jets, which allows for trouble-free operation of the device in difficult weather conditions, such as heavy rain or snowstorms. The illuminator is compatible with most analog and IP cameras featuring a day/night function with a mechanical ICR filter. The aesthetic appearance and compact dimensions allow for discreet mounting on building facades or lighting poles, ensuring safety and high image quality around the clock.
Specification
Illuminator range
The device offers an effective illumination range of up to 120 meters under optimal weather conditions. This range allows for effective identification of objects in total darkness at long distances, which is crucial for perimeter protection of large industrial facilities and private properties.
Beam angle
Concentrated beam with a 30-degree angle. This radiation characteristic is dedicated to illuminating narrow and long areas, preventing overexposure of foregrounds and focusing the entire power of the illuminator on a distant target.
Optical wavelength
850 nm. This is the standard wavelength for CCTV systems, providing the best compromise between camera sensor sensitivity and discretion (the LEDs glow a soft red color, but do not illuminate the area with visible light to humans).
Twilight switch
Built-in light intensity sensor. It automates the device's operation by turning on the IR radiator only when the light level drops below the sensitivity threshold, which significantly reduces operating costs and component wear.
Power supply and electrical parameters
The required voltage is 12 V DC (direct current). The device is characterized by a current consumption of 1.67 A, which provides a power of approximately 20W. It is recommended to use stabilized power supplies with a minimum capacity of 2A.
Ingress protection rating
IP65. This means complete protection against dust ingress and protection against water jets (12.5 l/min) sprayed on the housing from any direction. The illuminator is fully adapted for outdoor installation without additional covers.
Housing material
High-quality aluminum alloy. This material acts as a heat sink, effectively dissipating heat generated by high-power LEDs, which prevents them from overheating and guarantees stable operation for many years.
Operating temperature
Wide operating range from -20 °C to 70 °C. The device is resistant to both severe frosts and direct sunlight on hot days, making it a reliable element of the security system in the local climate.
Application
Professional closed-circuit television (CCTV) systems. Ideal for use with IP, AHD, HD-CVI, and HD-TVI cameras that have a mechanical infrared filter (ICR) and require an additional light source at night.
LED type
IR LED matrix with increased light efficiency. The components used are characterized by a long service life and low luminous flux degradation during use.
Installation and adjustment
The integrated 'U' type metal bracket allows for stable mounting of the illuminator to a wall, ceiling, or dedicated boom. The design allows for precise adjustment of the tilt angle in the vertical axis.
Color and aesthetics
Dark gray (graphite) housing, powder-coated. The coating is resistant to UV radiation and changing weather conditions, maintaining an aesthetic appearance for a long time.
Connectors
Standard DC 2.1/5.5 mm power socket on the cable, which facilitates quick connection to typical plug-in or junction box power supplies used in surveillance.
Warranty
The product is covered by a full 2-year manufacturer's warranty (24 months), which confirms the high quality of workmanship and reliability of the device in continuous operation mode.
Contents
1x External infrared illuminator IRL-30/120
1x Integrated mounting bracket
1x User manual in Polish
Dimensions, Weight
Product dimensions: 94 x 180 x 140 mm (D x W x H)
Package dimensions: 150 x 185 x 115 mm (D x W x H)
Product weight: 750 g
Weight with packaging: 814 g
