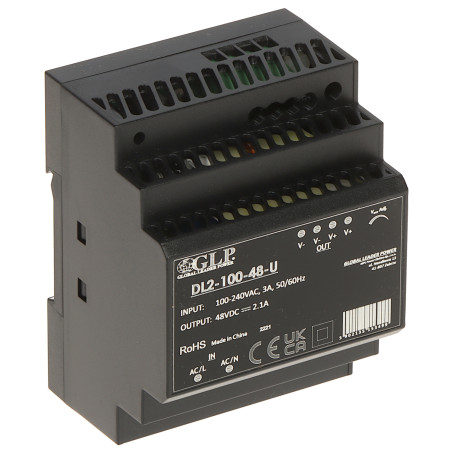

DIN Rail Switching Power Supply 48V DC 2.1A 100W Industrial Stabilized Efficient GLP DL2-100-48-U
zł171.44
Tax included
The DL2-100-48-U switching power supply is an advanced power solution designed for professional industrial automation systems and telecommunications installations. The device is characterized by exceptional reliability and high energy efficiency of 90%, which translates into lower heat loss and longer component life. Thanks to its compact housing adapted for mounting on a standard DIN rail (TS35/7.5 or 15), the power supply fits perfectly into control cabinets, saving valuable space.
One of the key advantages of the DL2-100-48-U model is its resistance to extreme environmental conditions. The device can operate in a wide temperature range from -40°C to +70°C, making it an excellent choice for outdoor installations or locations exposed to large thermal fluctuations. Additionally, the power supply offers a wide input voltage range (85-264V AC), which ensures stable operation even in networks with low-quality power parameters.
The safety of connected receivers is guaranteed by a series of built-in protections: short-circuit, overload, and overvoltage. The ability to precisely adjust the output voltage in the range from 43.2V to 55.2V DC allows for perfect matching of power parameters to the requirements of specific equipment, compensating for potential voltage drops on long cables. The product is covered by a 3-year manufacturer's warranty, which confirms its high build quality and durability in demanding industrial applications.
DIN Rail Switching Power Supply 48V DC 2.1A 100W Industrial Stabilized Efficient
Model: GLP DL2-100-48-U
EAN: 6931240033371 SKU: 931033370
- High energy efficiency at 90%
- Wide AC and DC input voltage range
- Mounting on standard DIN rail TS-35/7.5 or 15
- Wide operating temperature range from -40°C to 70°C
- Output voltage adjustment via potentiometer
- Built-in SCP, OLP, OVP protections
- Dual output terminals for easier wiring
- Compact modular housing
- Long service life and 3-year warranty
Description
The DL2-100-48-U switching power supply is an advanced power solution designed for professional industrial automation systems and telecommunications installations. The device is characterized by exceptional reliability and high energy efficiency of 90%, which translates into lower heat loss and longer component life. Thanks to its compact housing adapted for mounting on a standard DIN rail (TS35/7.5 or 15), the power supply fits perfectly into control cabinets, saving valuable space.
One of the key advantages of the DL2-100-48-U model is its resistance to extreme environmental conditions. The device can operate in a wide temperature range from -40°C to +70°C, making it an excellent choice for outdoor installations or locations exposed to large thermal fluctuations. Additionally, the power supply offers a wide input voltage range (85-264V AC), which ensures stable operation even in networks with low-quality power parameters.
The safety of connected receivers is guaranteed by a series of built-in protections: short-circuit, overload, and overvoltage. The ability to precisely adjust the output voltage in the range from 43.2V to 55.2V DC allows for perfect matching of power parameters to the requirements of specific equipment, compensating for potential voltage drops on long cables. The product is covered by a 3-year manufacturer's warranty, which confirms its high build quality and durability in demanding industrial applications.
Specification
Power supply type
Switching - modern design based on a high-frequency converter
AC input voltage
85 V ... 264 V AC - wide input range ensuring versatility
DC input voltage
120 V ... 370 V DC - DC power supply capability
Output voltage
48 V DC - stabilized DC voltage
Output voltage adjustment
43.2 V ... 55.2 V DC - built-in potentiometer for precise calibration
Current capacity
2.1 A - maximum continuous current
Power supply wattage
100.8 W - high output power
Number of outputs
2 pcs. - dual output terminals for easy installation
Efficiency
90 % - high energy efficiency reducing heat generation
Housing type
DIN - industrial standard for mounting in distribution boards
Short-circuit protection (SCP)
Automatic output disconnection in case of a short circuit to protect electronics
Overload protection (OLP)
Protection against current draw exceeding the device's rated parameters
Overvoltage protection (OVP)
Protection against sudden voltage spikes in the power grid
Operating temperature
-40 °C ... 70 °C - extreme thermal resistance
Relative humidity
10 % ... 95 % - operation in condensation conditions
Dimensions
92.7 x 70 x 58 mm - compact modular design
Warranty
3 years - long manufacturer support period
Software
The device does not have a built-in digital interface or dedicated control software. It is an autonomous Plug-and-Play power module whose operation is regulated solely by built-in analog circuits and a voltage potentiometer. The lack of need for software configuration facilitates rapid deployment in industrial and home automation systems.
Contents
1x Switching power supply DL2-100-48-U
Dimensions, Weight
Product dimensions: 58 x 70 x 93 mm (D x W x H)
Package dimensions: 64 x 73 x 97 mm (D x W x H)
Product weight: 250 g
Weight with packaging: 278 g
