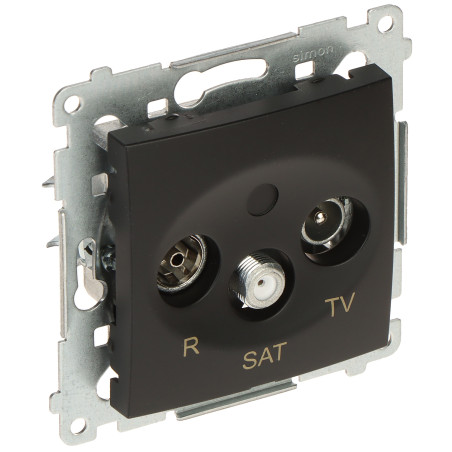

R-TV-SAT End Antenna Socket Flush Mounted Matte Black Electrical Equipment KONTAKT Simon DASK.01/49-SIMON54
zł150.87
Tax included
The Simon 54 series R-TV-SAT end antenna socket is a high-class electrical accessory that combines modern design with reliable functionality. The product has been designed for an aesthetic and durable finish of multimedia installations in homes, offices, and public utility buildings. Thanks to its elegant matte black finish, the socket fits perfectly into current interior design trends, matching both modern and classic rooms.
The main advantage of this socket is its versatility. Equipped with three independent outputs: TV (IEC male), FM (IEC female), and SAT (F-type), it allows for the simultaneous connection of a television receiver, radio, and satellite decoder. It is an end-type socket, which means it is used at the end of a signal line in star-type installations or as the last socket in a series, ensuring optimal impedance matching and signal reflection minimization.
The installation of the device is extremely simple and intuitive. The socket is adapted for flush mounting in standard installation boxes. It can be fixed using traditional claws or screws, which guarantees stability and secure seating in the wall. Solid screw terminals ensure a durable connection with the coaxial cable, eliminating the risk of loose contacts and signal quality degradation.
The product is characterized by very low insertion loss, which is crucial for maintaining high image and sound quality, especially in the case of 4K and HD digital signals. The wide range of supported frequencies (up to 2400 MHz for the SAT path) makes the socket fully compatible with modern satellite and terrestrial DVB-T2 television systems. An additional advantage is the 6-year manufacturer warranty, which confirms the highest quality of workmanship and durability of the materials used. By choosing the Simon 54 series, you gain the certainty that your installation will work flawlessly for many years, while maintaining an impeccable appearance and full technical efficiency.
R-TV-SAT End Antenna Socket Flush Mounted Matte Black Electrical Equipment
Model: KONTAKT Simon DASK.01/49-SIMON54
EAN: 6931240085813 SKU: 931085817
- End-type antenna socket
- Three independent outputs: R (Radio), TV (Television), SAT (Satellite)
- Elegant matte black finish
- Flush mounting using claws or screws
- Solid screw terminals for coaxial cable
- Wide frequency range up to 2400 MHz
- Very low signal attenuation
- Compatibility with Simon 54 Nature and Premium series frames
- 6-year manufacturer warranty
Description
The Simon 54 series R-TV-SAT end antenna socket is a high-class electrical accessory that combines modern design with reliable functionality. The product has been designed for an aesthetic and durable finish of multimedia installations in homes, offices, and public utility buildings. Thanks to its elegant matte black finish, the socket fits perfectly into current interior design trends, matching both modern and classic rooms.
The main advantage of this socket is its versatility. Equipped with three independent outputs: TV (IEC male), FM (IEC female), and SAT (F-type), it allows for the simultaneous connection of a television receiver, radio, and satellite decoder. It is an end-type socket, which means it is used at the end of a signal line in star-type installations or as the last socket in a series, ensuring optimal impedance matching and signal reflection minimization.
The installation of the device is extremely simple and intuitive. The socket is adapted for flush mounting in standard installation boxes. It can be fixed using traditional claws or screws, which guarantees stability and secure seating in the wall. Solid screw terminals ensure a durable connection with the coaxial cable, eliminating the risk of loose contacts and signal quality degradation.
The product is characterized by very low insertion loss, which is crucial for maintaining high image and sound quality, especially in the case of 4K and HD digital signals. The wide range of supported frequencies (up to 2400 MHz for the SAT path) makes the socket fully compatible with modern satellite and terrestrial DVB-T2 television systems. An additional advantage is the 6-year manufacturer warranty, which confirms the highest quality of workmanship and durability of the materials used. By choosing the Simon 54 series, you gain the certainty that your installation will work flawlessly for many years, while maintaining an impeccable appearance and full technical efficiency.
Specification
Product type
R-TV-SAT end antenna socket
Product series
Simon 54
Mounting
Flush-mounted, mounting via claws or screws
Output socket type
1x TV (IEC male), 1x FM (IEC female), 1x SAT (F-socket)
Internal connector
Screw terminals
TV frequency range
5 ... 70 MHz / 120 ... 862 MHz
FM frequency range
88 ... 108 MHz
SAT frequency range
950 ... 2400 MHz
TV path attenuation
1 dB @ 860 MHz
Radio path attenuation
1 dB
SAT path attenuation
2 dB @ 2150 MHz
Application
Antenna installations, compatibility with Nature and Premium frames
Color
Matte black
Mounting depth
29 mm
Warranty
6 years (72 months)
Technical interface
The device is a passive component and does not have built-in firmware or a digital interface. Its operation is based on the physical separation of frequency bands using advanced passive LC filter circuits. Thanks to the precise tuning of components, the socket ensures high isolation between individual paths (TV, FM, SAT), which effectively prevents mutual interference of connected receivers. The mechanical design of the connection interface has been optimized to minimize impedance mismatch (75 Ohm standard), which is crucial for lossless transmission of high-frequency signals, including 4K Ultra HD and DVB-T2/S2 standards.
Contents
1x Antenna socket
Dimensions, Weight
Product dimensions: 41 x 75 x 75 mm (D x W x H)
Packaging dimensions: 45 x 80 x 80 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 116 g
