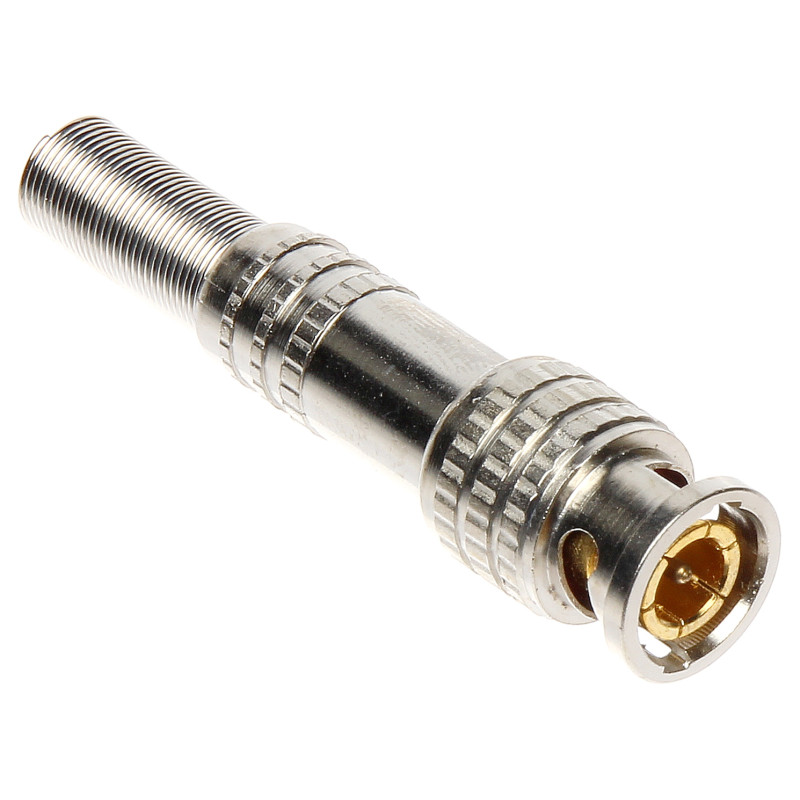

Metal screw-on BNC connector for coaxial cable 100 piece set CCTV connector Delta BNC-W/SKR-MET*P100
zł152.40
Tax included
Professional set of 100 BNC-W/SKR-MET connectors designed for mounting on coaxial cables. These high-quality connectors are an ideal solution for installers of video surveillance systems (CCTV), terrestrial television, and satellite systems. Thanks to their solid metal construction, the connectors provide exceptional durability and resistance to mechanical damage and corrosion, which is crucial in professional installations.
The main advantage of this model is the simplicity of assembly – the center conductor and connector elements are fastened using screws, which eliminates the need for specialized pin crimping tools, while the cable shield is crimped, ensuring a secure and stable electrical connection. The connectors feature an impedance of 75 Ohm, making them fully compatible with the most popular cables such as RG6, HFEK, or Triset113.
Using these connectors allows for quick and aesthetic cable termination while ensuring a wide operating bandwidth and minimal signal attenuation. This product is dedicated to working in demanding conditions where the reliability of high-resolution image transmission is essential. By choosing this set, you receive 100 precisely manufactured connectors, which significantly lowers the unit cost of installation while maintaining the highest quality standards. The metal housing not only protects the connection but also acts as an additional shielding against interference, minimizing the impact of external electromagnetic fields on the quality of the transmitted video.
Metal screw-on BNC connector for coaxial cable 100 piece set CCTV connector
Model: Delta BNC-W/SKR-MET*P100
EAN: 6931240018682 SKU: 931018685
- Set of 100 BNC connectors
- Core mounting via screw (no soldering required)
- Solid metal construction resistant to corrosion
- 75 Ohm impedance ideal for CCTV systems
- Compatibility with RG6, HFEK, Triset113 cables
- Wide operating bandwidth and high transmission quality
- Easy and fast installation
Description
Professional set of 100 BNC-W/SKR-MET connectors designed for mounting on coaxial cables. These high-quality connectors are an ideal solution for installers of video surveillance systems (CCTV), terrestrial television, and satellite systems. Thanks to their solid metal construction, the connectors provide exceptional durability and resistance to mechanical damage and corrosion, which is crucial in professional installations.
The main advantage of this model is the simplicity of assembly – the center conductor and connector elements are fastened using screws, which eliminates the need for specialized pin crimping tools, while the cable shield is crimped, ensuring a secure and stable electrical connection. The connectors feature an impedance of 75 Ohm, making them fully compatible with the most popular cables such as RG6, HFEK, or Triset113.
Using these connectors allows for quick and aesthetic cable termination while ensuring a wide operating bandwidth and minimal signal attenuation. This product is dedicated to working in demanding conditions where the reliability of high-resolution image transmission is essential. By choosing this set, you receive 100 precisely manufactured connectors, which significantly lowers the unit cost of installation while maintaining the highest quality standards. The metal housing not only protects the connection but also acts as an additional shielding against interference, minimizing the impact of external electromagnetic fields on the quality of the transmitted video.
Specification
Product type
Straight screw-on metal BNC connector designed for professional low-voltage installations and video systems.
Component mounting
Screw-on system ensuring a solid connection of the connector body without the risk of components loosening during long-term operation.
Shield mounting
Crimping method on the outer cable insulation, which guarantees excellent ground continuity and high resistance to the cable being pulled out of the connector.
Core mounting
Stable mounting via a set screw, allowing for reliable electrical contact without the need for soldering, which significantly speeds up field installation work.
Cable compatibility
Connector optimized for use with 75 Ohm coaxial cables, such as popular RG-6, HFEK, Triset-113 models, and others with similar parameters.
Cable diameter
Support for cables with a maximum outer diameter of up to 7.2 mm, covering most standard cables used in modern surveillance.
Electrical parameters
75 Ohm characteristic impedance, ensuring minimal signal loss and no reflections in the transmission path, which is crucial for image quality in 4K and 8MPx resolutions.
Construction material
Made of high-quality galvanized metal, ensuring excellent conductivity and exceptional product longevity.
Environmental resistance
Special anti-corrosion coating protecting the connector against oxidation, allowing the connector to be used indoors and in hermetic boxes outdoors.
Frequency response
Wide operating bandwidth enabling seamless transmission of analog (CVBS) and high-resolution digital signals in AHD, HD-CVI, HD-TVI, and SDI standards.
System application
Ideal for building CCTV industrial television systems, RTV/SAT antenna installations, and in laboratories for connecting measuring equipment such as oscilloscopes and generators.
Installation advantages
No need for expensive crimping tools for central pins; a basic screwdriver and simple ferrule crimper or pliers are sufficient for proper assembly.
Sales unit
Bulk packaging containing 100 connectors, which is the most economical solution for large installation projects and service companies.
Physical dimensions
Compact design with an outer diameter of 14 mm and a total length of 56 mm, allowing for installation in densely packed patch panels and multi-channel recorders.
Warranty and reliability
Product covered by a 24-month manufacturer warranty, characterized by high repeatability of technical parameters in every production batch.
Contents
100x Metal screw-on BNC connector
Dimensions, Weight
Product dimensions: 56 x 14 x 14 mm (D x W x H)
Package dimensions: 140 x 160 x 50 mm (D x W x H)
Product weight: 12 g
Weight with packaging: 1180 g
