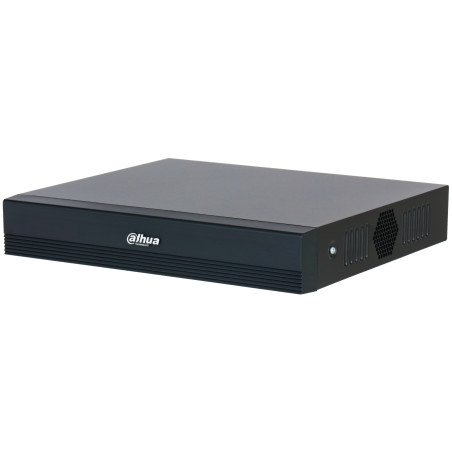

16 Channel Hybrid Recorder AHD HD-CVI HD-TVI CVBS IP

Model: Dahua XVR1B16-I/T

EAN: 6931240067871 SKU: 931067877

• Support for 16 video channels (BNC) + additional IP channels
• Support for AHD, HD-CVI, HD-TVI, CVBS and IP standards
• Advanced SMD Plus image analytics (human and vehicle classification)
• Efficient video compression AI Coding / H.265+ / H.265 / H.264+ / H.264
• Support for SATA hard drives up to 16TB
• Remote access via DMSS mobile app (Android/iOS)
• Built-in web server for browser-based management
• Two-way audio communication
• Support for Smart Dual Light technology
• USB 2.0 and USB 3.0 interfaces for easy archiving

Description

The XVR1B16-I/T digital recorder is an advanced 16-channel hybrid device designed for professional video surveillance systems. It supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for upgrading existing analog installations and building new systems. The device features an intuitive user interface optimized for ease of use, allowing for quick configuration even for beginners.

The advantages of this model include advanced analytical functions such as SMD Plus, which effectively classifies objects into humans and vehicles, minimizing the number of false alarms. The recorder supports modern image compression methods, including AI Coding and H.265+, which allows for significant hard drive space savings while maintaining high recording quality. Thanks to the built-in web server and the dedicated DMSS mobile application, the user has constant access to live view and recording archives from anywhere in the world via a smartphone or tablet. A robust design, support for SATA drives up to 16TB, and a 3-year manufacturer's warranty confirm the high reliability of the device in continuous 24/7 operation.

Specification

Standard

AHD, HD-CVI, HD-TVI, CVBS, IP

Video inputs

16 pcs BNC

Video outputs

1 pc HDMI, 1 pc VGA

Audio Inputs/Outputs

1 pc RCA (CINCH) input, 1 pc RCA (CINCH) output, audio support via coaxial cable for 16 channels

Image compression method

AI Coding, Smart H.265+, H.265, Smart H.264+, H.264

Recording resolutions

AHD/CVI/TVI: 1080N, 720p; CVBS: 960H; IP: max 6 Mpx

Operating modes

16 x AHD/CVI/TVI/CVBS/IP + 2 x IP

Drive support

1 x SATA up to 16 TB

Software

The device works with the DMSS application (available on Android and iOS). The application enables full management of the surveillance system: live camera view, remote playback of archived recordings, receiving push notifications about alarm events (e.g., SMD Plus motion detection), configuring recorder parameters, and user management. The application supports P2P technology, which eliminates the need for complex port forwarding configuration on the router. Additionally, the recorder has a built-in web server, allowing full operation via a web browser on a PC, which enables advanced system configuration, recording schedule management, motion detection settings, and export of evidence materials directly to the computer's disk.

Analytical functions

SMD Plus (object classification: human, vehicle), motion detection, recording schedule

Interfaces

1x USB 2.0, 1x USB 3.0

Power supply

12V DC / 2A (power adapter included)

Operating temperature

-10°C to 45°C

Warranty

3 years

Contents

1x XVR1B16-I/T Recorder

1x 12V/2A Power adapter

1x Computer mouse

User manual

Dimensions, Weight

Product dimensions: 232 x 260 x 48 mm (D x W x H)

Packaging dimensions: 285 x 345 x 90 mm (D x W x H)

Product weight: 1000 g

Weight with packaging: 1496 g
