- New

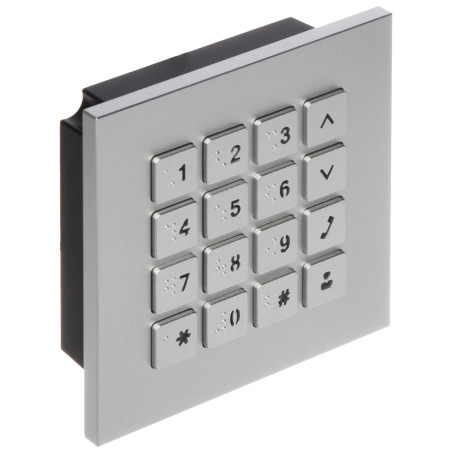

Modular Keypad for IP Video Intercom Modular System Numeric Buttons White Backlight Silver Cipher DAHUA VTO4202F-MK
zł665.70
Tax included
The VTO4202F-MK keypad module is an advanced component of the extensive Dahua video intercom system, designed for maximum usability and security. The device is dedicated to working with the VTO4202F-P camera module, creating a coherent and functional outdoor panel.
One of the key advantages of the module is the large, extremely legible buttons, which significantly facilitate system operation, especially for the elderly and children. Thanks to the use of aesthetic white backlighting, the keypad remains fully functional at night, eliminating the need to install additional light sources in front of the entrance.
The device's construction combines the elegance of metal with the durability of plastic, which translates into high mechanical resistance confirmed by the IK07 vandal-proof class. The silver color of the housing gives the device a modern character that perfectly matches contemporary architecture. An additional advantage is the IP65 tightness class, which, with proper installation and sealing, ensures long-term operation in changing weather conditions.
This module is an ideal solution for those looking for a reliable way to authorize entry via access codes or direct dialing of apartment numbers. Thanks to the modular design, installation and integration with other Dahua system components proceed smoothly and without problems. By choosing this model, you gain the certainty of durability supported by a three-year manufacturer warranty.
Modular Keypad for IP Video Intercom Modular System Numeric Buttons White Backlight Silver Cipher
Model: DAHUA VTO4202F-MK
EAN: 6931240044971 SKU: 931044974
- Compatibility with VTO4202F-P camera module
- Large, ergonomic and legible numeric buttons
- Elegant white LED backlight for easy night operation
- High mechanical resistance class IK07
- IP65 protection rating against dust and water
- Made of high-quality metal and plastic
- Modular system allowing for any configuration
- Aesthetic silver housing color
- Wide operating temperature range from -20°C to 60°C
- Three-year manufacturer warranty
Description
The VTO4202F-MK keypad module is an advanced component of the extensive Dahua video intercom system, designed for maximum usability and security. The device is dedicated to working with the VTO4202F-P camera module, creating a coherent and functional outdoor panel.
One of the key advantages of the module is the large, extremely legible buttons, which significantly facilitate system operation, especially for the elderly and children. Thanks to the use of aesthetic white backlighting, the keypad remains fully functional at night, eliminating the need to install additional light sources in front of the entrance.
The device's construction combines the elegance of metal with the durability of plastic, which translates into high mechanical resistance confirmed by the IK07 vandal-proof class. The silver color of the housing gives the device a modern character that perfectly matches contemporary architecture. An additional advantage is the IP65 tightness class, which, with proper installation and sealing, ensures long-term operation in changing weather conditions.
This module is an ideal solution for those looking for a reliable way to authorize entry via access codes or direct dialing of apartment numbers. Thanks to the modular design, installation and integration with other Dahua system components proceed smoothly and without problems. By choosing this model, you gain the certainty of durability supported by a three-year manufacturer warranty.
Specification
Compatibility
VTO4202F-P series main camera module
Device type
Numeric keypad module for video intercom system
Buttons
Large, mechanical, high-travel, providing clear tactile feedback
Backlight
White LED, activated automatically or in continuous mode
Power supply
5 V DC - voltage supplied in cascade from other system modules (no need for a separate power supply)
Power consumption
Very low power consumption, maximum ≤ 1 W during active backlight
Housing material
Durable mixture of metal alloy and high-quality plastic
Tightness class
IP65 - Full protection against dust and protection against water jets (silicone sealing of the surface connection required)
Vandal resistance
IK07 - Resistance to mechanical impacts with an energy of 2 joules
Color
Silver (Silver finish)
Operating temperature
Stable operation in the range from -20 °C to 60 °C
Permissible humidity
10% - 90% RH (non-condensing)
Connectors
Dedicated communication ports for connection to the master module
Warranty
36 months (3 years) provided by an authorized service center
Software (Interface)
The device integrates with the VTO main module operating system, allowing access code management from the camera module's Web interface. It supports remote gate/door opening after entering the correct PIN code. Full compatibility with the DMSS/Easy4ip mobile application, which allows receiving notifications about code usage. The system allows for the configuration of temporary and permanent codes for different users.
Contents
1x VTO4202F-MK keypad module
1x Connection ribbon cable
1x Mounting accessories (screws/gaskets)
Dimensions, Weight
Product dimensions: 31 x 100 x 100 mm (D x W x H)
Package dimensions: 190 x 160 x 70 mm (D x W x H)
Product weight: 200 g
Weight with packaging: 324 g
