- New

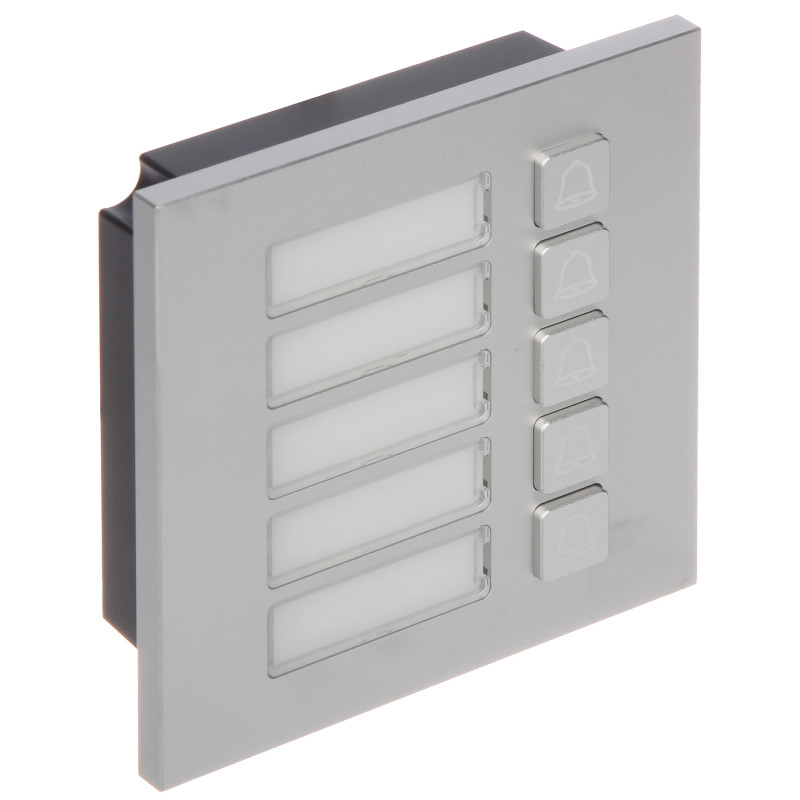

5-button keypad module for modular IP video intercom system silver IP65 IK07 DAHUA VTO4202F-MB5
zł257.34
Tax included
This professional keypad module is designed to expand a modular video intercom system. The device is engineered to work with the main camera module, allowing for the creation of a personalized outdoor station perfectly tailored to the needs of users in multi-family or office buildings. The module features a modern design in silver and a robust construction made of high-quality metal and plastic, ensuring longevity and an aesthetic appearance for years to come.
The most important advantage of the device is the presence of 5 independent call buttons, which allow for direct communication with selected premises. Each button operates precisely, ensuring user comfort. Thanks to the IP65 ingress protection rating (when following proper installation guidelines) and mechanical resistance at the IK07 level, the product is resistant to harsh weather conditions and vandalism attempts. The installation of the module is intuitive and is performed via a cascade connection with the main module, which eliminates the need for additional external power supplies. This is an ideal solution for systems requiring high reliability and easy scalability.
The use of this solution allows for significant optimization of installation costs while maintaining full premium functionality. The module fits perfectly into modern architecture, offering not only practical benefits but also increasing the prestige of the entire video intercom installation. Thanks to support for advanced communication protocols, the module integrates with the smart home ecosystem, allowing for remote access management and full control over facility security.
5-button keypad module for modular IP video intercom system silver IP65 IK07
Model: DAHUA VTO4202F-MB5
EAN: 6931240070178 SKU: 931070178
- Compatibility with VTO4202F-P camera module
- Equipped with 5 independent doorbell buttons
- High ingress protection rating IP65 (when sealed)
- Vandal-proof housing with IK07 classification
- Made of durable metal and plastic
- Elegant silver finish
- Powered directly from master modules
- Wide operating temperature range from -20°C to 60°C
- Compact dimensions 100x100mm
- Easy integration within a modular system
Description
This professional keypad module is designed to expand a modular video intercom system. The device is engineered to work with the main camera module, allowing for the creation of a personalized outdoor station perfectly tailored to the needs of users in multi-family or office buildings. The module features a modern design in silver and a robust construction made of high-quality metal and plastic, ensuring longevity and an aesthetic appearance for years to come.
The most important advantage of the device is the presence of 5 independent call buttons, which allow for direct communication with selected premises. Each button operates precisely, ensuring user comfort. Thanks to the IP65 ingress protection rating (when following proper installation guidelines) and mechanical resistance at the IK07 level, the product is resistant to harsh weather conditions and vandalism attempts. The installation of the module is intuitive and is performed via a cascade connection with the main module, which eliminates the need for additional external power supplies. This is an ideal solution for systems requiring high reliability and easy scalability.
The use of this solution allows for significant optimization of installation costs while maintaining full premium functionality. The module fits perfectly into modern architecture, offering not only practical benefits but also increasing the prestige of the entire video intercom installation. Thanks to support for advanced communication protocols, the module integrates with the smart home ecosystem, allowing for remote access management and full control over facility security.
Specification
Standard and Compatibility
Dahua modular system; works directly with the VTO4202F-P main camera module and other VTO4202F series modules.
Number of buttons
5 mechanical call buttons arranged vertically.
Power supply
5V DC; pass-through power supplied from the main module or an adjacent module in the series.
Power consumption
Maximum ≤ 1 W during operation.
Housing and material
Combination of metal (aluminum) and high-quality ABS/PC plastic; silver color.
Protection rating
IP65 - resistance to dust and water jets (additional silicone sealing required at the junction of the housing and the surface).
Mechanical resistance
IK07 - protection against impacts with energy up to 2 joules (vandal resistance).
Environmental conditions
Operating temperature: -20 °C to 60 °C; relative humidity up to 95%.
Dimensions
100 x 100 x 31 mm (standard dimension of the VTO4202F series module).
Weight
Net: 0.19 kg; Gross in packaging: 0.31 kg.
Software and Management
The device is managed from the IP video intercom main module. Operation is performed via the main module's Web interface or dedicated ConfigTool software. The system allows for assigning each of the 5 buttons to a specific premise number or group of receivers. The DMSS mobile application (available on Android/iOS) allows for receiving calls triggered from the module on a smartphone, conducting audio-video conversations, and remotely opening the entrance from anywhere in the world via the P2P cloud. SmartPSS/DSS software allows for central system management from a computer, event logging, and configuration of access schedules for individual buttons.
Additional functions
WDR (Wide Dynamic Range) - image optimization support provided by the main module; 3D-DNR - digital noise reduction; ICR - mechanical infrared filter (in cooperation with the camera).
Installation
Installation in dedicated VTM series flush-mount or surface-mount frames (e.g., VTM127, VTM128).
Warranty
3 years (36 months) from the date of purchase.
Contents
1x VTO4202F-MB5 keypad module
1x Cascade connection ribbon cable
1x Mounting screw kit
1x Quick installation guide
Dimensions, Weight
Product dimensions: 31 x 100 x 100 mm (D x W x H)
Package dimensions: 75 x 165 x 190 mm (D x W x H)
Product weight: 190 g
Weight with packaging: 310 g
