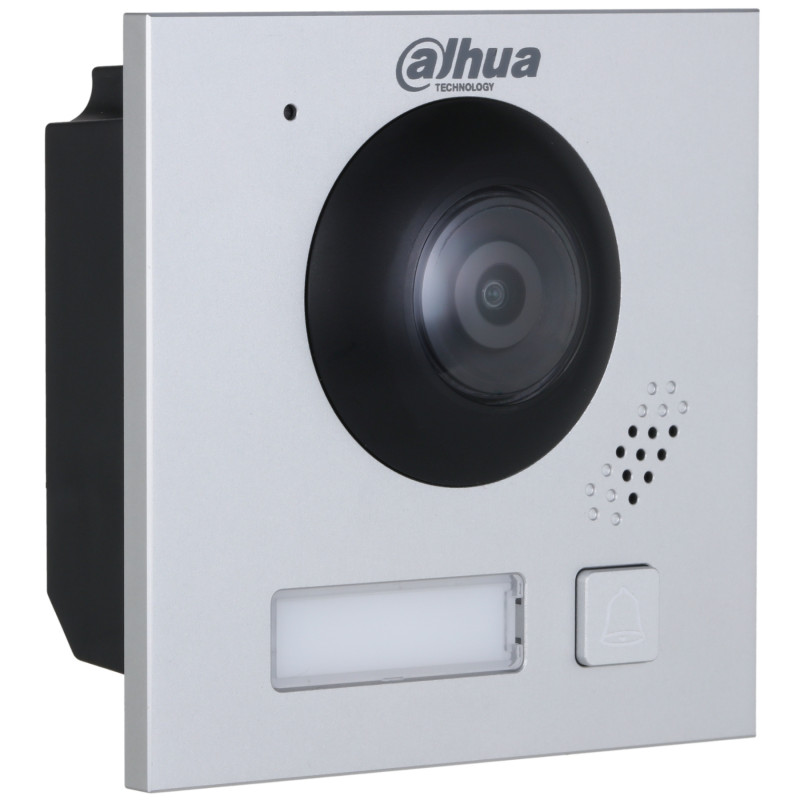

IP Video Intercom Outdoor Station 2Mpx WDR IR IP65 IK07 Modular Intercom Doorbell Free App DAHUA VTO4201F-P1
zł1,352.04
Tax included
A modern video intercom outdoor station is a key component of an intelligent access control system, combining top-tier image quality with a reliable design. Equipped with a professional 2-megapixel CMOS sensor, the device delivers exceptionally detailed Full HD images, allowing for flawless identification of visitors. Thanks to the use of a wide-angle lens with a field of view of 168.6 degrees, the panel eliminates blind spots, monitoring almost the entire space in front of the entrance.
The device's advantage is its extreme resistance to harsh weather conditions and mechanical damage. The aluminum housing with an elegant silver finish meets strict IP65 ingress protection standards and IK07 mechanical protection, ensuring longevity and trouble-free operation even in extreme temperatures from -30 to +60 degrees Celsius. Support for advanced image enhancement features, such as WDR (120dB) and 3D-DNR digital noise reduction, ensures that recordings are clear even with strong backlighting or in poor lighting conditions. An integrated IR illuminator enables effective observation in total darkness, ensuring the safety of residents around the clock. The device allows for full two-way communication with echo reduction, providing crystal-clear sound during conversations. The ability to power via PoE (Power over Ethernet) significantly simplifies installation, reducing the amount of cabling required to a single twisted-pair cable.
IP Video Intercom Outdoor Station 2Mpx WDR IR IP65 IK07 Modular Intercom Doorbell Free App
Model: DAHUA VTO4201F-P1
EAN: 6931240065686 SKU: 931065683
- High resolution 2 Mpx CMOS image sensor
- Wide viewing angle: 168.6 degrees
- Built-in IR illuminator for night vision
- Two-way communication with echo and noise reduction
- Durable aluminum housing with IP65 ingress protection
- IK07 mechanical protection against vandalism
- PoE (802.3af) or 12V DC power supply
- Micro SD card support up to 256GB for local storage
- Wide Dynamic Range (WDR) 120dB support
- Remote operation via free DMSS mobile app
Description
A modern video intercom outdoor station is a key component of an intelligent access control system, combining top-tier image quality with a reliable design. Equipped with a professional 2-megapixel CMOS sensor, the device delivers exceptionally detailed Full HD images, allowing for flawless identification of visitors. Thanks to the use of a wide-angle lens with a field of view of 168.6 degrees, the panel eliminates blind spots, monitoring almost the entire space in front of the entrance.
The device's advantage is its extreme resistance to harsh weather conditions and mechanical damage. The aluminum housing with an elegant silver finish meets strict IP65 ingress protection standards and IK07 mechanical protection, ensuring longevity and trouble-free operation even in extreme temperatures from -30 to +60 degrees Celsius. Support for advanced image enhancement features, such as WDR (120dB) and 3D-DNR digital noise reduction, ensures that recordings are clear even with strong backlighting or in poor lighting conditions. An integrated IR illuminator enables effective observation in total darkness, ensuring the safety of residents around the clock. The device allows for full two-way communication with echo reduction, providing crystal-clear sound during conversations. The ability to power via PoE (Power over Ethernet) significantly simplifies installation, reducing the amount of cabling required to a single twisted-pair cable.
Specification
Standard and Sensor
IP; 1/2.9" 2 Mpx CMOS sensor; Full HD 1080p resolution
Optics and Visibility
Viewing angle: 168.6 degrees; IR illuminator (True): Yes; Automatic ICR filter (Day/Night)
Image Compression
H.265 / H.264 - high encoding efficiency with bandwidth savings
Image Correction Functions
WDR - 120 dB (Wide Dynamic Range); 3D-DNR (Digital Noise Reduction); BLC (Backlight Compensation)
Audio
Built-in microphone and speaker; Two-way communication; Noise and echo reduction
Communication Interfaces
Ethernet RJ-45 10/100 Mbps port; RS-485 interface; Alarm output
Access Control and Control
Lock control (relay output); Exit button support; Door status detection; 12V DC / 600mA power output
Memory and Storage
Micro SD card slot - support for media up to 256GB
Mobile Software
DMSS (Dahua Mobile Surveillance System) application available for Android and iOS. This software is an advanced tool for remote management of the video intercom system. It allows the user to answer calls in real-time from anywhere, view live video, and remotely open the gate or door with a single click. The application sends instant Push notifications when the doorbell is pressed or sabotage is detected. DMSS also allows for viewing recording history from the memory card and full configuration of associated indoor monitors and Dahua surveillance cameras.
Security
Tamper detection (alarm upon attempt to detach from the surface)
Housing and Finish
Material: Aluminum; Color: Silver; IP65 ingress protection; IK07 mechanical protection class
Electrical Parameters
Power supply: PoE (802.3af/at) or 12V DC / 2A; Power consumption: ≤ 5W
Operating Conditions
Operating temperature: -30 °C ... 60 °C; Application: Outdoor/Indoor
Languages and Compatibility
Supported languages: Polish, English; Compatibility with Dahua IP ecosystem
Contents
1x Video intercom outdoor station
1x Mounting accessory kit
1x Quick start guide
Dimensions, Weight
Product dimensions: 49 x 100 x 100 mm (D x W x H)
Package dimensions: 75 x 190 x 165 mm (D x W x H)
Product weight: 290 g
Weight with packaging: 470 g
