- New

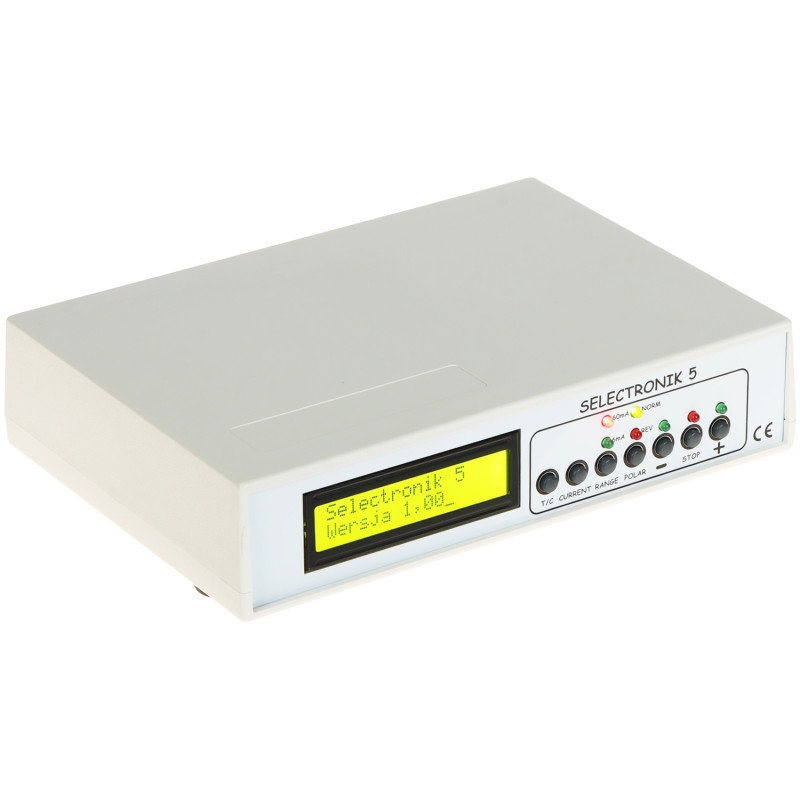

Selective Current Generator for Physiotherapy Rehabilitation Professional Mobile Battery LCD DELTA SELECTRONIK-5
zł1,597.77
Tax included
The SELECTRONIK-5 selective current generator is an advanced, modern electronic device designed specifically for professional physiotherapy and home rehabilitation applications. It is an improved version of the highly popular SELECTRONIK-4 model, introducing key enhancements that increase user comfort and therapeutic precision. The most significant innovation in this model is the use of battery power, which makes the device fully mobile and independent of a constant power grid connection. As a result, treatments can be performed almost anywhere, which is an invaluable advantage for physiotherapists visiting patients.
The heart of the device is a modern microprocessor responsible for extremely precise current pulse shaping. This technological solution ensures that the parameters of the generated current remain stable and unchanged even after many years of intensive use, eliminating the problem of analog component aging. The SELECTRONIK-5 is equipped with a 10-bit analog-to-digital converter, which enables direct and accurate measurement of the peak current value, which is crucial for the safety and effectiveness of the therapy. The user has access to a 128-step digital intensity adjustment, allowing for very subtle and precise parameter adaptation to the individual sensitivity of the patient.
The device offers high work ergonomics thanks to a clear LCD display that provides real-time information about the type of selected waveform, peak current value, and the time remaining until the end of the treatment. The set includes a set of high-quality electrodes made of flexible material, which allows for their perfect fit to the anatomical curves of the body. Furthermore, plugs from the renowned German company HIRSCHMANN ensure excellent electrical connection and mechanical durability. The entire unit is delivered in an aesthetic and durable carrying case that effectively protects the equipment from damage.
Patient safety was a priority during the design of this generator. The device has built-in electronic short-circuit protection, which immediately limits the current to a safe value in the event of electrode contact. The solid housing made of high-impact ABS plastic ensures resistance to difficult operating conditions. SELECTRONIK-5 is a Polish product, characterized by the highest quality of workmanship, confirmed by a 3-year manufacturer's warranty. It is an ideal choice for medical facilities and demanding individual users who value reliability and innovation.
Selective Current Generator for Physiotherapy Rehabilitation Professional Mobile Battery LCD
Model: DELTA SELECTRONIK-5
EAN: 6931240083246 SKU: 931083246
- Modern processor ensuring pulse parameter stability
- Li-Ion battery power for full mobility
- Precise 128-step current intensity adjustment
- Built-in 10-bit A/D measurement converter
- Clear LCD display with timer and current indicator
- Electronic short-circuit protection to protect the patient
- Long operating time up to 25 hours on a single charge
- USB-C port for easy charging with universal chargers
- High-quality electrodes with Hirschmann plugs
- Aesthetic carrying case included
Description
The SELECTRONIK-5 selective current generator is an advanced, modern electronic device designed specifically for professional physiotherapy and home rehabilitation applications. It is an improved version of the highly popular SELECTRONIK-4 model, introducing key enhancements that increase user comfort and therapeutic precision. The most significant innovation in this model is the use of battery power, which makes the device fully mobile and independent of a constant power grid connection. As a result, treatments can be performed almost anywhere, which is an invaluable advantage for physiotherapists visiting patients.
The heart of the device is a modern microprocessor responsible for extremely precise current pulse shaping. This technological solution ensures that the parameters of the generated current remain stable and unchanged even after many years of intensive use, eliminating the problem of analog component aging. The SELECTRONIK-5 is equipped with a 10-bit analog-to-digital converter, which enables direct and accurate measurement of the peak current value, which is crucial for the safety and effectiveness of the therapy. The user has access to a 128-step digital intensity adjustment, allowing for very subtle and precise parameter adaptation to the individual sensitivity of the patient.
The device offers high work ergonomics thanks to a clear LCD display that provides real-time information about the type of selected waveform, peak current value, and the time remaining until the end of the treatment. The set includes a set of high-quality electrodes made of flexible material, which allows for their perfect fit to the anatomical curves of the body. Furthermore, plugs from the renowned German company HIRSCHMANN ensure excellent electrical connection and mechanical durability. The entire unit is delivered in an aesthetic and durable carrying case that effectively protects the equipment from damage.
Patient safety was a priority during the design of this generator. The device has built-in electronic short-circuit protection, which immediately limits the current to a safe value in the event of electrode contact. The solid housing made of high-impact ABS plastic ensures resistance to difficult operating conditions. SELECTRONIK-5 is a Polish product, characterized by the highest quality of workmanship, confirmed by a 3-year manufacturer's warranty. It is an ideal choice for medical facilities and demanding individual users who value reliability and innovation.
Specification
Device type
Selective current generator for physiotherapy
Maximum voltage on electrodes
60 V DC (Direct Current)
Maximum output current
60 mA
Current adjustment resolution
128 steps (stepped adjustment, very precise)
Power source
2 x Li-Ion 18650 type battery with a capacity of 2600 mAh each
Charging interface
USB-C or micro USB port (charging current max. 2 A)
Pulse characteristics
Trapezoidal current pulses, digitally stabilized
Available frequencies
O=0.6 Hz, SVU=0.8 Hz, S=3 Hz, PS=10 Hz, NF=50 Hz
Energy efficiency
Operating time approx. 25h at an average current intensity of 10 mA
Display and indicators
Alphanumeric LCD showing waveform type, peak current, and time
Integrated timer
Programmable treatment time up to 99 minutes with automatic countdown
Operational safety
Treatment lockout during charging process, short-circuit protection
Operating conditions
Ambient temperature: 5 °C ... 40 °C; ABS plastic housing
Signal connectors
Standard banana sockets compatible with the Hirschmann system
Control software
The SELECTRONIK-5 device has a built-in operating system based on an intuitive user interface displayed on the LCD screen. The software allows for instant switching between operating modes using dedicated control buttons. The user can easily manage two main parameters: current intensity (Current) and session duration (Timer). Switching between these functions is done using the [T/C] key, and the arrow on the display indicates the currently edited value. The system automatically counts down the time to zero and signals the end of the treatment. The software also monitors the charge status of the Li-Ion cells and manages safety algorithms, preventing the current from starting while connected to the charger, which is a critical element of protecting the patient from mains voltage.
Contents
1x SELECTRONIK-5 Generator
1x Selective current treatment manual
1x Set of flexible electrodes
1x USB 5 V / 3 A wall charger
1x USB-A / USB-C cable
1x User manual PL
1x Carrying case
Dimensions, Weight
Product dimensions: 140 x 191 x 48 mm (D x W x H)
Packaging dimensions: 340 x 390 x 150 mm (D x W x H)
Product weight: 580 g
Weight with packaging: 2418 g
