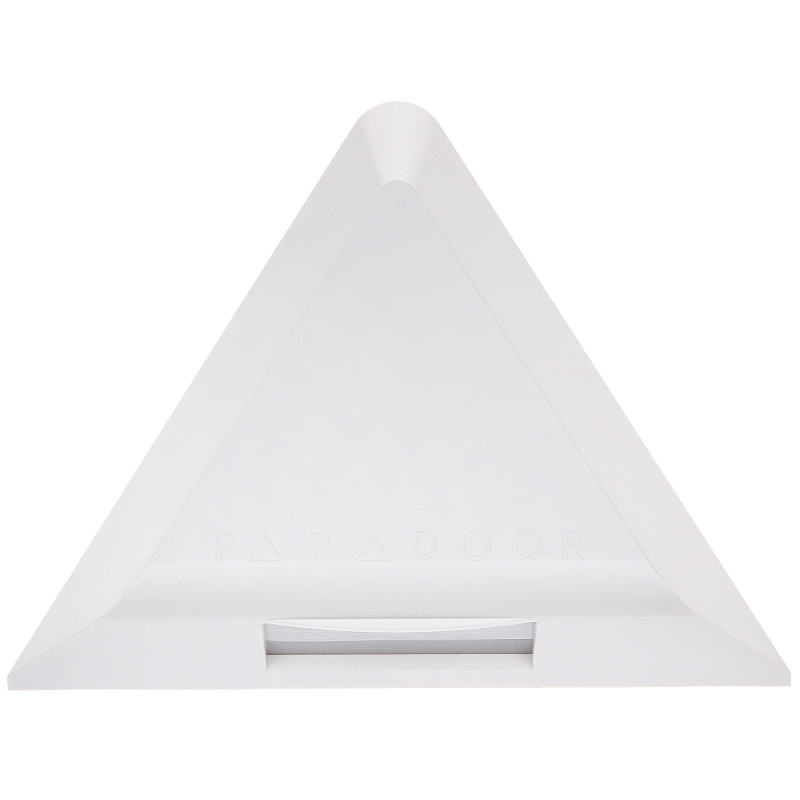

Wired PIR Motion Detector Vertical Curtain for Alarm System Indoor 6m Range Digital Signal NO NC PARADOX 460-P2C
zł196.75
Tax included
The Paradox 460-P2C passive infrared sensor is an advanced detection device designed for maximum property protection efficiency. The specificity of this model lies in generating a so-called vertical curtain, making it an ideal solution for securing specific strips of space, such as walls with many windows, entrance doors, or shop windows. Thanks to the use of modern signal analysis algorithms, this detector is characterized by exceptional operational stability, minimizing the risk of false alarms, which is crucial in professional security systems.
The use of a dual pyroelement allows for precise human motion detection while ignoring environmental disturbances. The device allows for the detection of hand-sized objects from a close distance (2.1m) and full human motion detection from a distance of up to 6.6 meters. The adjustable position of the Fresnel lens in the range of 0 to 10 degrees gives the installer flexibility in adjusting the field of view to the specific conditions prevailing in the room.
The main advantage of the detector is its discreet appearance and compact dimensions, which allow for aesthetic installation in any interior without disturbing its architecture. The solid housing protects internal components, and the built-in tamper switch immediately informs the system of an unauthorized opening attempt. This is a proven product from a renowned Canadian manufacturer, which guarantees longevity and reliability for many years of operation. By choosing this model, you are investing in security backed by technology recognized worldwide. It is perfect for private homes, offices, and commercial facilities where precise curtain detection is required.
Wired PIR Motion Detector Vertical Curtain for Alarm System Indoor 6m Range Digital Signal NO NC
Model: PARADOX 460-P2C
EAN: 6931240094570 SKU: 931094574
- Advanced digital signal analysis ensuring stable operation
- Vertical curtain characteristic ideal for protecting walls with windows
- High-sensitivity dual pyroelement
- Adjustable Fresnel lens position in the range of 0° - 10°
- Built-in tamper protection (housing opening)
- Compliance with EN 50130-4 and EN 55022 safety standards
- Wide DC supply voltage range
- Selectable NO/NC alarm outputs
Description
The Paradox 460-P2C passive infrared sensor is an advanced detection device designed for maximum property protection efficiency. The specificity of this model lies in generating a so-called vertical curtain, making it an ideal solution for securing specific strips of space, such as walls with many windows, entrance doors, or shop windows. Thanks to the use of modern signal analysis algorithms, this detector is characterized by exceptional operational stability, minimizing the risk of false alarms, which is crucial in professional security systems.
The use of a dual pyroelement allows for precise human motion detection while ignoring environmental disturbances. The device allows for the detection of hand-sized objects from a close distance (2.1m) and full human motion detection from a distance of up to 6.6 meters. The adjustable position of the Fresnel lens in the range of 0 to 10 degrees gives the installer flexibility in adjusting the field of view to the specific conditions prevailing in the room.
The main advantage of the detector is its discreet appearance and compact dimensions, which allow for aesthetic installation in any interior without disturbing its architecture. The solid housing protects internal components, and the built-in tamper switch immediately informs the system of an unauthorized opening attempt. This is a proven product from a renowned Canadian manufacturer, which guarantees longevity and reliability for many years of operation. By choosing this model, you are investing in security backed by technology recognized worldwide. It is perfect for private homes, offices, and commercial facilities where precise curtain detection is required.
Specification
Application
Device intended for indoor use only
Detection type
Passive infrared (PIR) with digital signal processing
Pyroelement
Dual element with low noise level
Detection range
Hand mode: 2.1 x 1.5 m; Human mode: 6.6 x 4.5 m (motion detection)
Detection angle
Narrow curtain characteristic 40 degrees
Mounting height
Recommended installation height from 2 m to 2.7 m
Alarm outputs
Configurable relay outputs type NO (normally open) and NC (normally closed)
Output load
Maximum relay contact load: 28V DC / 150mA
Signaling time
Violation duration adjustable from 0.5 s to 25 s
Movement speed
Detectable object movement speed: from 0.2 m/s to 3.5 m/s
Power supply
9V ... 16V DC or 20V ... 27V DC (automatic adjustment)
Current consumption
Maximum power consumption during operation: 18 mA
Selected features
Adjustable Fresnel lens (0-10°), vertical curtain, tamper protection, test mode, EN 50130-4, EN 55022
Operating conditions
Ambient temperature: -10°C ... 50°C, housing color: white, country of origin: Canada
Contents
1x PIR Detector Paradox 460-P2C
1x Set of mounting screws
1x Quick installation guide
Dimensions, Weight
Product dimensions: 33 x 92 x 114 mm (D x W x H)
Package dimensions: 35 x 100 x 115 mm (D x W x H)
Product weight: 76 g
Weight with packaging: 102 g
