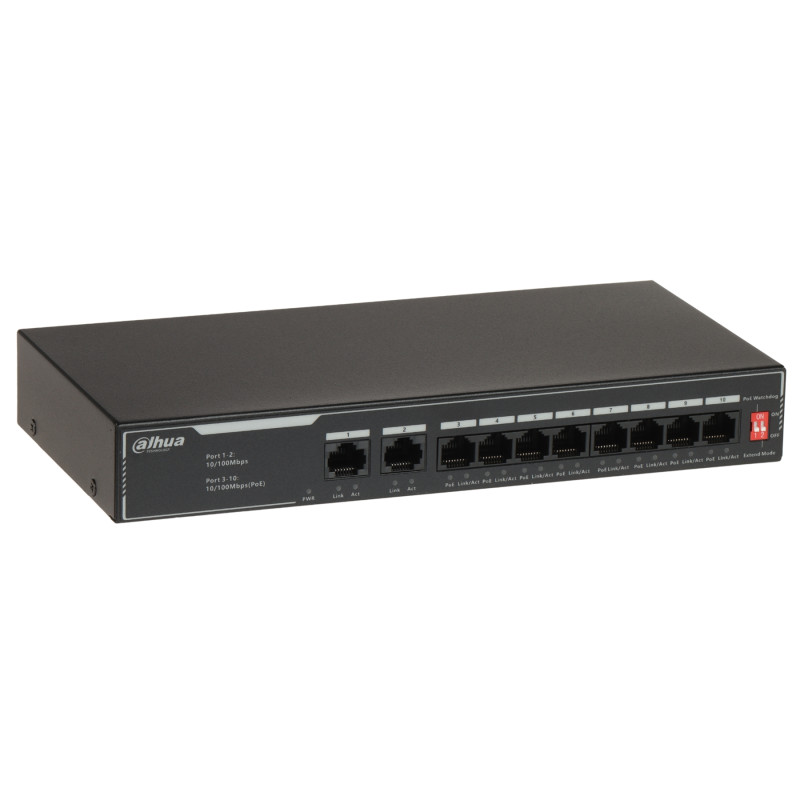

8 Port 10/100Mbps PoE Switch 2x Uplink 65W Watchdog Long Range CCTV Network Switch DAHUA SF1010LP
zł232.22
Tax included
The Dahua SF1010LP PoE switch is an advanced 10-port desktop network switch designed for professional IP video surveillance systems and modern computer networks. The device offers 8 Fast Ethernet ports with support for Power over Ethernet (PoE) technology in IEEE 802.3af and IEEE 802.3at standards, allowing for simultaneous data transmission and power supply to end devices such as IP cameras, video intercoms, or WiFi access points using a single twisted-pair cable.
A key advantage of this model is the integrated PoE power budget of 65W, with each of the eight ports capable of delivering up to 30W of power. Additionally, the switch is equipped with 2 RJ45 Uplink ports, which enable a stable connection to an NVR recorder or main router without occupying power ports. The device is characterized by exceptional reliability thanks to the PoE Watchdog function, which continuously monitors the status of connected devices and automatically restarts power on the port if a camera freeze is detected.
The solid metal desktop housing ensures optimal heat dissipation, which translates into component longevity and stable operation in temperatures from -10°C to 55°C. The switch also features advanced surge protection up to 6kV, which significantly increases the safety of the entire installation in harsh weather conditions. It is a Plug & Play solution that does not require complex configuration, making it an ideal choice for both installers and home users looking for an efficient and secure backbone for their CCTV network.
8 Port 10/100Mbps PoE Switch 2x Uplink 65W Watchdog Long Range CCTV Network Switch
Model: DAHUA SF1010LP
EAN: 6931240034491 SKU: 931034499
- 8 PoE 10/100 Mbps ports enabling IP camera power supply via a single cable
- 2 dedicated 10/100 Mbps Uplink ports for network or recorder connection
- PoE power budget of 65W (up to 30W per single port)
- PoE Watchdog function automatically restarting unresponsive devices
- Support for IEEE 802.3af and IEEE 802.3at standards
- Advanced 6kV surge protection and ESD protection
- Durable metal desktop housing for improved cooling
- Long Range mode support allowing transmission up to 250 meters
- LED signaling for power, link, and PoE status
- Simple Plug & Play installation without software configuration
Description
The Dahua SF1010LP PoE switch is an advanced 10-port desktop network switch designed for professional IP video surveillance systems and modern computer networks. The device offers 8 Fast Ethernet ports with support for Power over Ethernet (PoE) technology in IEEE 802.3af and IEEE 802.3at standards, allowing for simultaneous data transmission and power supply to end devices such as IP cameras, video intercoms, or WiFi access points using a single twisted-pair cable.
A key advantage of this model is the integrated PoE power budget of 65W, with each of the eight ports capable of delivering up to 30W of power. Additionally, the switch is equipped with 2 RJ45 Uplink ports, which enable a stable connection to an NVR recorder or main router without occupying power ports. The device is characterized by exceptional reliability thanks to the PoE Watchdog function, which continuously monitors the status of connected devices and automatically restarts power on the port if a camera freeze is detected.
The solid metal desktop housing ensures optimal heat dissipation, which translates into component longevity and stable operation in temperatures from -10°C to 55°C. The switch also features advanced surge protection up to 6kV, which significantly increases the safety of the entire installation in harsh weather conditions. It is a Plug & Play solution that does not require complex configuration, making it an ideal choice for both installers and home users looking for an efficient and secure backbone for their CCTV network.
Specification
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
LAN ports
8 x RJ45 10/100 Base-T (PoE 802.3af/at)
Uplink ports
2 x RJ45 10/100 Base-T
Transmission speed
10 / 100 Mbps Full Duplex
Maximum output power
30 W per port (Ports 1-8)
Total PoE power budget
65 W
MAC address table
2k - automatic update and learning
Software and intelligent functions
The device has a built-in microcontroller with a PoE Watchdog function. This is an advanced operating algorithm that analyzes network traffic on each of the 8 PoE ports in real time. If no response is detected from an IP camera or other powered device, the system automatically initiates a hard power restart on the specific socket. This process restores the functionality of the frozen device without the need for manual intervention by a technician. The software also manages intelligent power allocation, ensuring the stability of the switch under a maximum load of the 65W budget, which guarantees monitoring continuity during critical moments.
Surge protection
Common mode: 6 kV, Differential mode: 4 kV
ESD protection
Air discharge: 8 kV, Contact discharge: 6 kV
Housing
Metal, Desktop type
Power supply
Built-in switching power supply 100V - 240V AC, 50/60 Hz
Operating temperature
-10 °C ... 55 °C
Ambient humidity
10% ... 95% (non-condensing)
Indicator LEDs
Power, Link/Act, PoE Status
Warranty
36 months (3 years)
Contents
1x PoE Switch SF1010LP
1x 230V power cable
1x User manual
1x Set of mounting accessories
Dimensions, Weight
Product dimensions: 123 x 243 x 35 mm (D x W x H)
Package dimensions: 265 x 305 x 75 mm (D x W x H)
Product weight: 760 g
Weight with packaging: 1216 g
