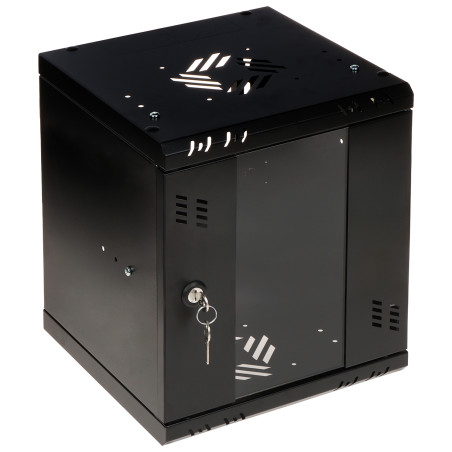

10 inch wall mount rack cabinet 6U 300mm depth black glass door for LAN CCTV IT server cabinet STALFLEX S-RC10-6U-300GB
zł249.35
Tax included
A rack cabinet is a key element of professional ICT, telecommunications, and video surveillance installations. The presented model is a high-class solution dedicated to organizing and securing 10-inch standard network equipment.
The S-RC10-6U-300GB cabinet is an ideal choice for those looking for an aesthetic way to mount switches, patch panels, or UPS power supplies in homes and small offices.
Key advantages of the cabinet:
- Full mechanical protection: Durable steel construction effectively protects devices installed inside from physical damage.
- Data and equipment security: The door is equipped with a lock and two keys included in the set to restrict unauthorized access.
- Optimal air circulation: Special ventilation holes on the top and bottom of the enclosure allow for the installation of optional fans, preventing equipment from overheating.
- Installation aesthetics: All cables can be hidden and organized thanks to dedicated cable entries measuring 160x50 mm.
- Mounting versatility: Thanks to the well-thought-out design, the user has the option to change the door opening direction (left/right) and adjust the depth of the mounting rails.
The cabinet features a modern design in black (RAL 9005) and a glass front door, which allows for real-time monitoring of device status without opening the enclosure. It is an indispensable infrastructure element in modern construction, ensuring longevity and trouble-free operation of LAN, CCTV, and RTV systems.
10 inch wall mount rack cabinet 6U 300mm depth black glass door for LAN CCTV IT server cabinet
Model: STALFLEX S-RC10-6U-300GB
EAN: 6931240031834 SKU: 931031830
- Designed for mounting 10-inch standard devices
- 6U mounting height and 300 mm external depth
- Lockable glass front door
- Door can be mounted as left or right opening
- Adjustable depth of mounting rails
- Fan cutouts (105 x 105 mm) on top and bottom
- Blanked cable entries (160 x 50 mm)
- Robust steel construction in RAL 9005 color
Description
A rack cabinet is a key element of professional ICT, telecommunications, and video surveillance installations. The presented model is a high-class solution dedicated to organizing and securing 10-inch standard network equipment.
The S-RC10-6U-300GB cabinet is an ideal choice for those looking for an aesthetic way to mount switches, patch panels, or UPS power supplies in homes and small offices.
Key advantages of the cabinet:
- Full mechanical protection: Durable steel construction effectively protects devices installed inside from physical damage.
- Data and equipment security: The door is equipped with a lock and two keys included in the set to restrict unauthorized access.
- Optimal air circulation: Special ventilation holes on the top and bottom of the enclosure allow for the installation of optional fans, preventing equipment from overheating.
- Installation aesthetics: All cables can be hidden and organized thanks to dedicated cable entries measuring 160x50 mm.
- Mounting versatility: Thanks to the well-thought-out design, the user has the option to change the door opening direction (left/right) and adjust the depth of the mounting rails.
The cabinet features a modern design in black (RAL 9005) and a glass front door, which allows for real-time monitoring of device status without opening the enclosure. It is an indispensable infrastructure element in modern construction, ensuring longevity and trouble-free operation of LAN, CCTV, and RTV systems.
Specification
Mounting standard
10 inches (254 mm) - a standard dedicated to smaller home and office installations, providing compact dimensions while maintaining functionality.
Internal height
6 U - height units defining the cabinet capacity, allowing for the installation of up to six standard 1U high devices.
Internal working depth
220 mm - maximum depth of the device that can be mounted inside the cabinet without collision with the door or the back of the enclosure.
External width
292 mm - total horizontal dimension of the enclosure, facilitating the planning of mounting space on the wall.
External height
329 mm - total vertical dimension of the cabinet measured from the bottom to the top edge of the structure.
External depth
300 mm - total dimension of the cabinet measured from the front to the wall on which it is hung.
Ventilation and cooling
The cabinet has two factory-cut holes measuring 105 x 105 mm intended for the installation of standard cooling fans (top and bottom).
Cable management
Equipped with two blanked holes measuring 160 x 50 mm located at the top and bottom of the cabinet, allowing for convenient cable entry.
Color scheme
Black powder coating with RAL 9005 code, ensuring high scratch resistance and an aesthetic appearance matching modern interiors.
Door construction
Front glass door with tempered glass, allowing for device monitoring without opening the cabinet, equipped with a solid cylinder lock.
Adaptive capabilities
Possibility to independently change the door opening direction (left/right) and full adjustment of the depth of the front rack mounting rails.
Removable back panel
No - the cabinet has an integrated back, increasing structural rigidity and the safety of the mounted equipment.
Weight and material
Net weight is 3.4 kg. The cabinet is made of high-quality steel, which guarantees long-term use and stability under load.
Warranty
2 years - full manufacturer warranty support for material and structural defects of the device.
Application
Intended for LAN systems (switches, routers), CCTV (recorders, power supplies), alarm systems, and RTV/SAT installations.
Contents
1x 10" Rack Cabinet
1x Set of 2 keys for the front door lock
Dimensions, Weight
Product dimensions: 300 x 292 x 329 mm (D x W x H)
Package dimensions: 360 x 310 x 125 mm (D x W x H)
Product weight: 3400 g
Weight with packaging: 3752 g
